Band Pass Filter

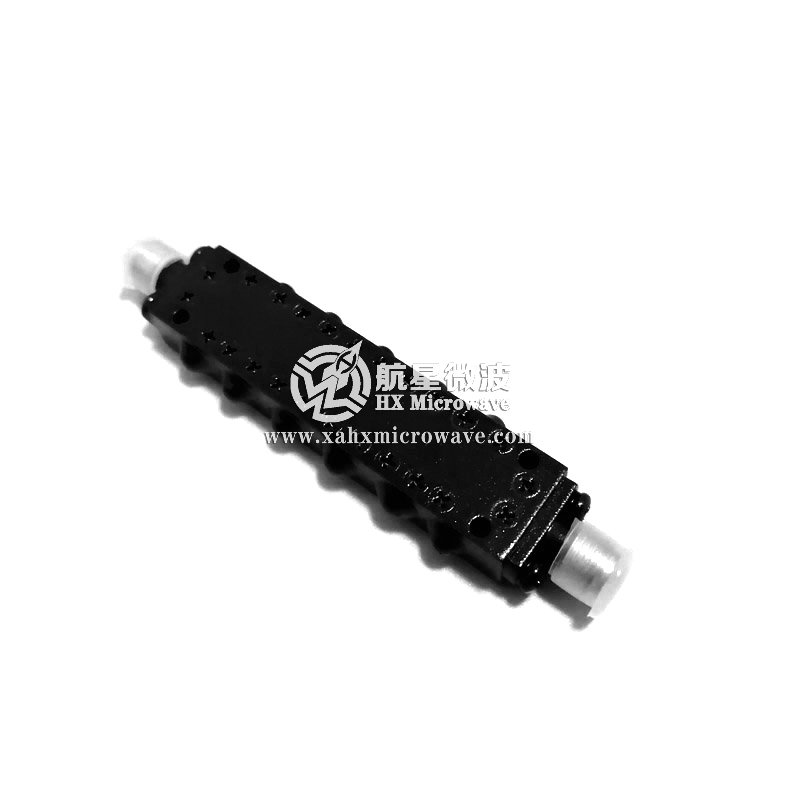

10.6-13.44GHz Interdigital Band Pass Filter

P/N：HXLBQ-DTA206
frequency:10.6-13.44GHz
Stop Band Rejection：≥60dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	12.02GHz
2	Pass Band Frequency	10.6 ~ 13.44GHz
3	Pass Band Insertion Loss	≤2.0dB
4	Pass Band Ripple	≤0.5dB
5	Pass Band VSWR	≤1.5:1
6	Stop Band Rejection	≥60dB @ DC ~ 9.5GHz	≥60dB @ 15 ~ 20GHz
7	Impedance	50 Ohms
8	Power	2W Max.
9	Connectors	SMA-Female
10	Surface Finish	Painted Black
11	Temperature Range	-30℃ ~ +70℃
12	Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
13	Dimensions	54137mm
14	Net weight	0.03KG
