Band Pass Filter

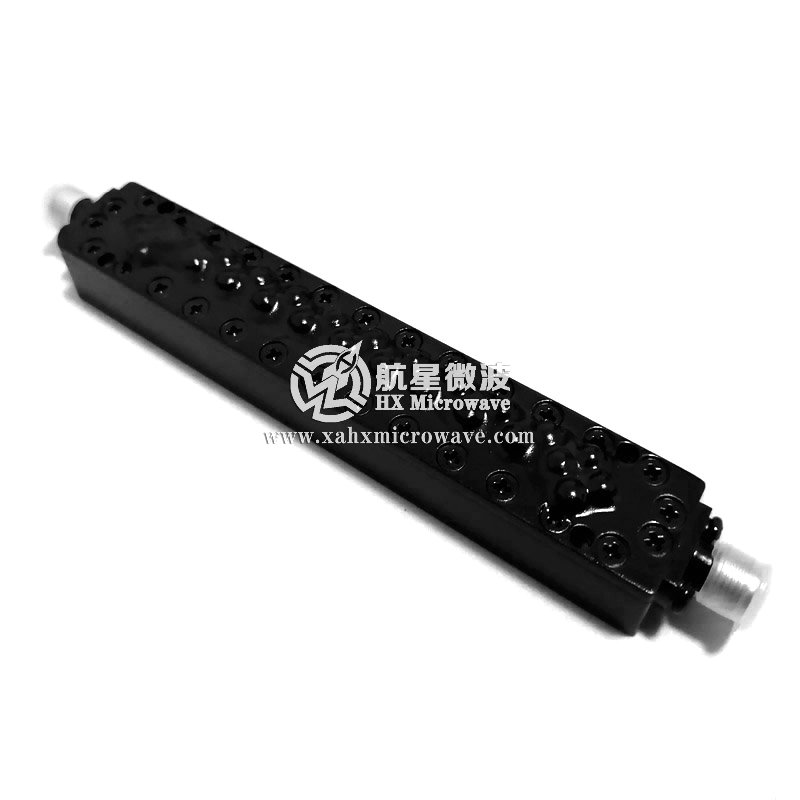

5300-6700MHz Comb Band Pass Filter

P/N：HXLBQ-DTA200
frequency:5300-6700MHz
Stop Band Rejection：≥50dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	6.0GHz

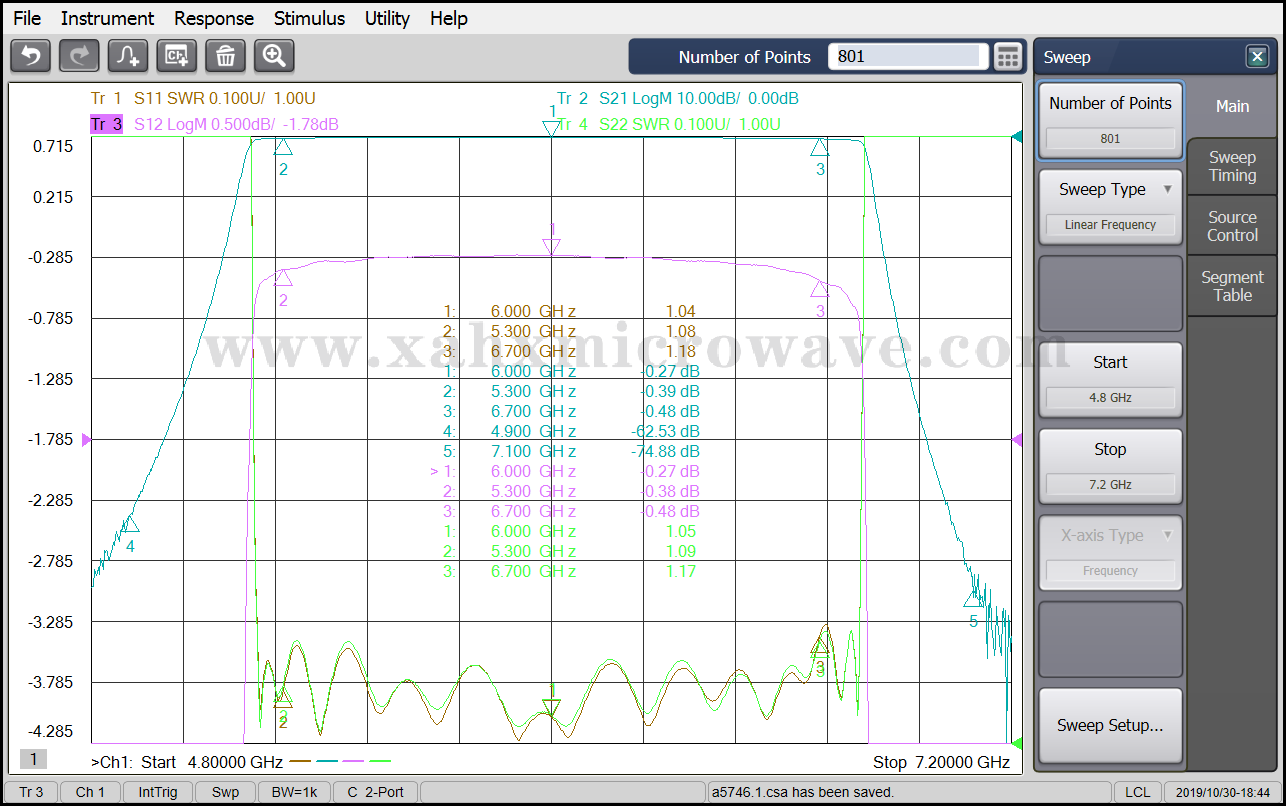

2	Pass Band Frequency	5.3 ~ 6.7GHz
3	Pass Band Insertion Loss	≤2.0dB
4	Pass Band Ripple	≤1.0dB
5	Pass Band VSWR	≤1.3:1

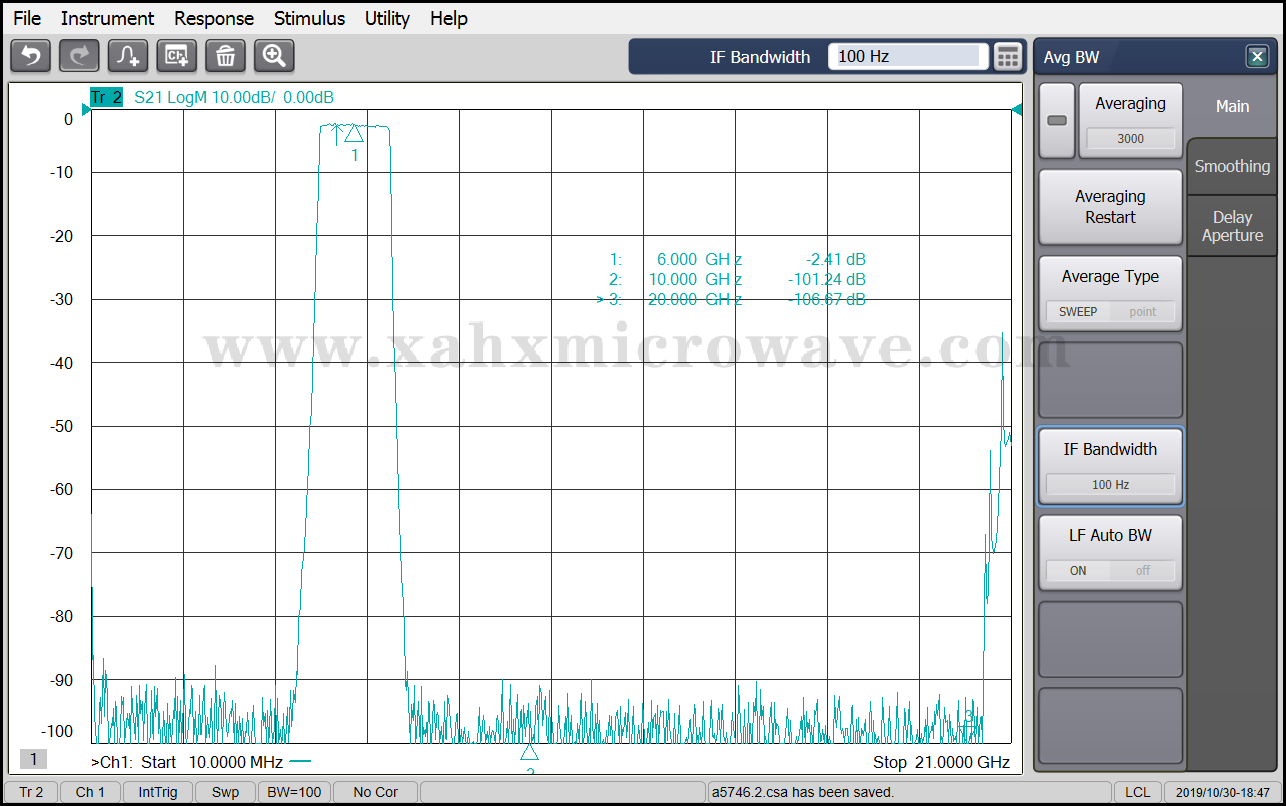

6	Stop Band Rejection	≥50dB @ DC ~ 4.9GHz	≥50dB @ 7.1 ~ 10GHz
7	Impedance	50 Ohms
8	Power Handling	5W Max.
9	Connectors	SMA-Female
10	Surface Finish	Painted Black
11	Temperature Range	-30℃ ~ +70℃
12	Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
13	Dimensions	1001711mm
