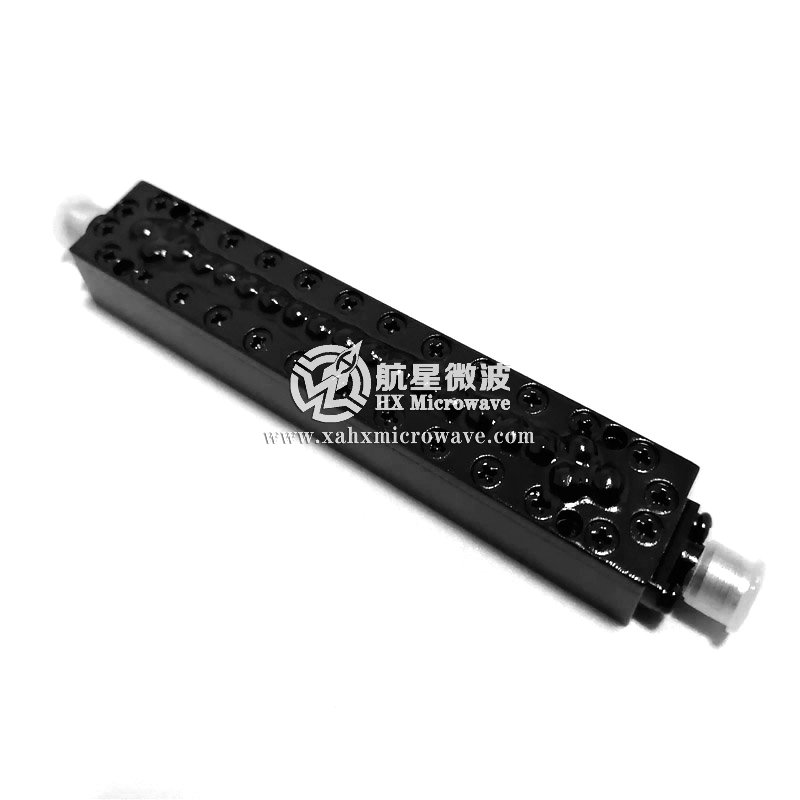

5925-6425MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA199
frequency:5925-6425MHz
Stop Band Rejection：≥50dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	6175MHz
2	Pass Band Frequency	5925 ~ 6425MHz
3	Pass Band Insertion Loss	≤1.5dB
4	Pass Band VSWR	≤1.3:1
5	Stop Band Attenuation	≥50dB @ DC ~ 5725MHz	≥50dB @ 6625 ~ 12000MHz
6	Impedance	50 Ohms
7	Power Handling	5W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃
11	Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	901611mm
