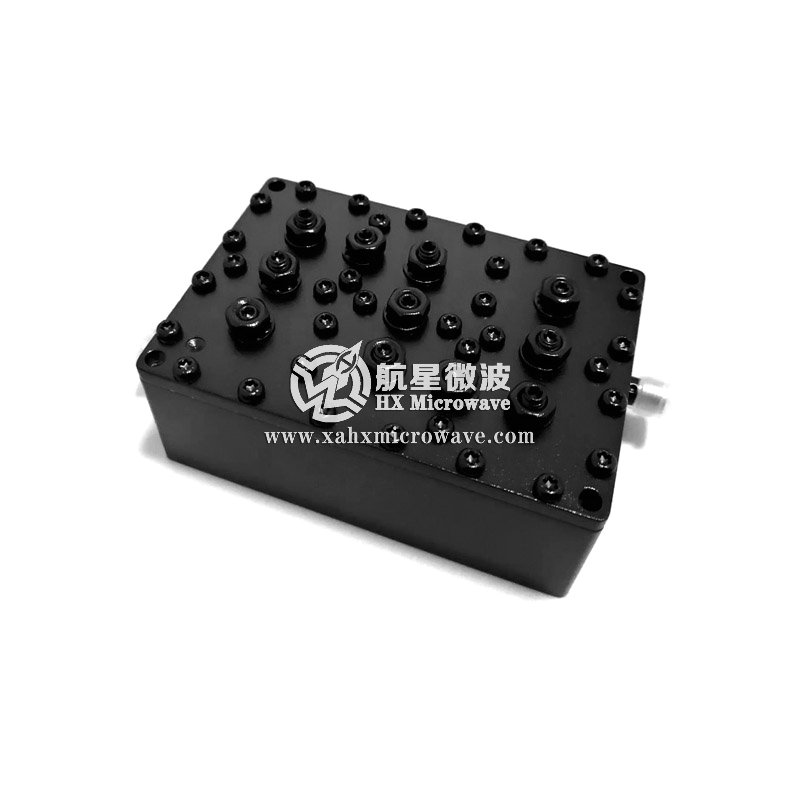

1435-1461MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA193
frequency:1435-1461MHz
Stop Band Rejection：≥45dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	1448MHz
2	Pass Band Frequency	1435 ~ 1461MHz
3	Pass Band Insertion Loss	≤1.8dB
4	Pass Band VSWR	≤1.3:1
5	Stop Band Rejection	≥45dB @ DC ~ 1415MHz	≥45dB @ 1481 ~ 3000MHz
6	Impedance	50 Ohms
7	Power Handling	10W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-20℃ ~ +60℃
11	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	805526mm
