| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 12.25GHz | |
| ● | Pass Band Frequency | 11.6 ~ 12.9GHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 10.8GHz | ≥70dB @ 13.6 ~ 13.7GHz |
| ≥70dB @ 10.8 ~ 10.9GHz | ≥80dB @ 13.7 ~ 29GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

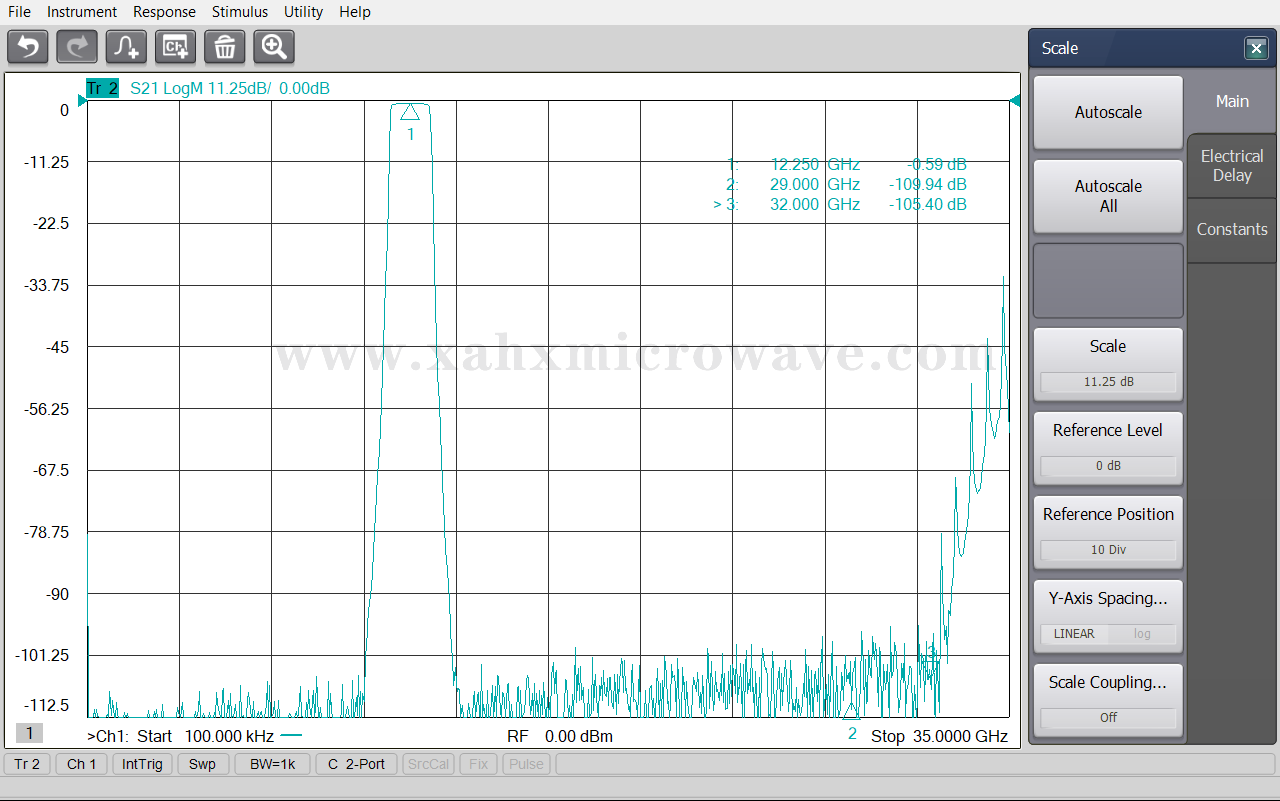

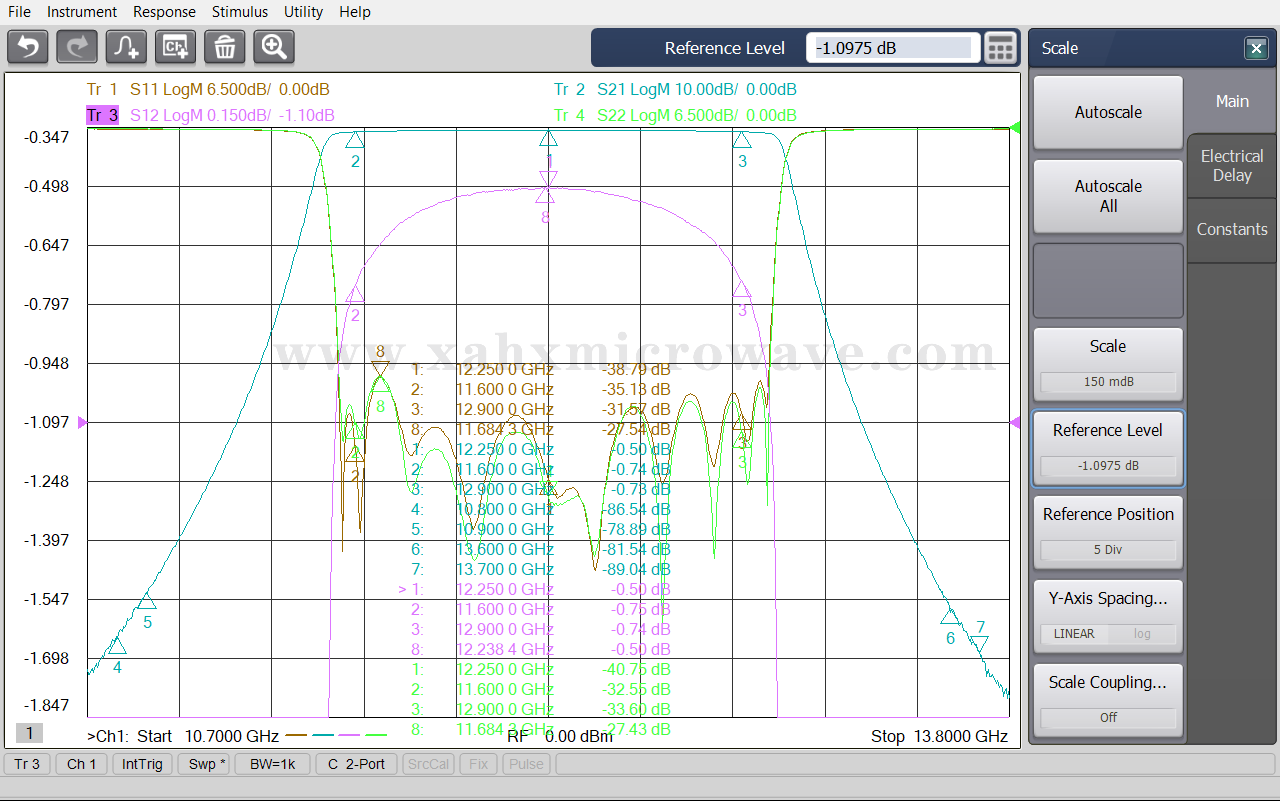

| Test Curve | |||
