| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5787.5MHz | |
| ● | Pass Band Frequency | 5725 ~ 5850MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band VSWR | ≤1.3:1 | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 5575MHz | ≥50dB @ 6000 ~ 11000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 150W Max. | |
| ● | Connectors | N-Female/N-Male | |
| ● | Surface Finish | Painted Black | |

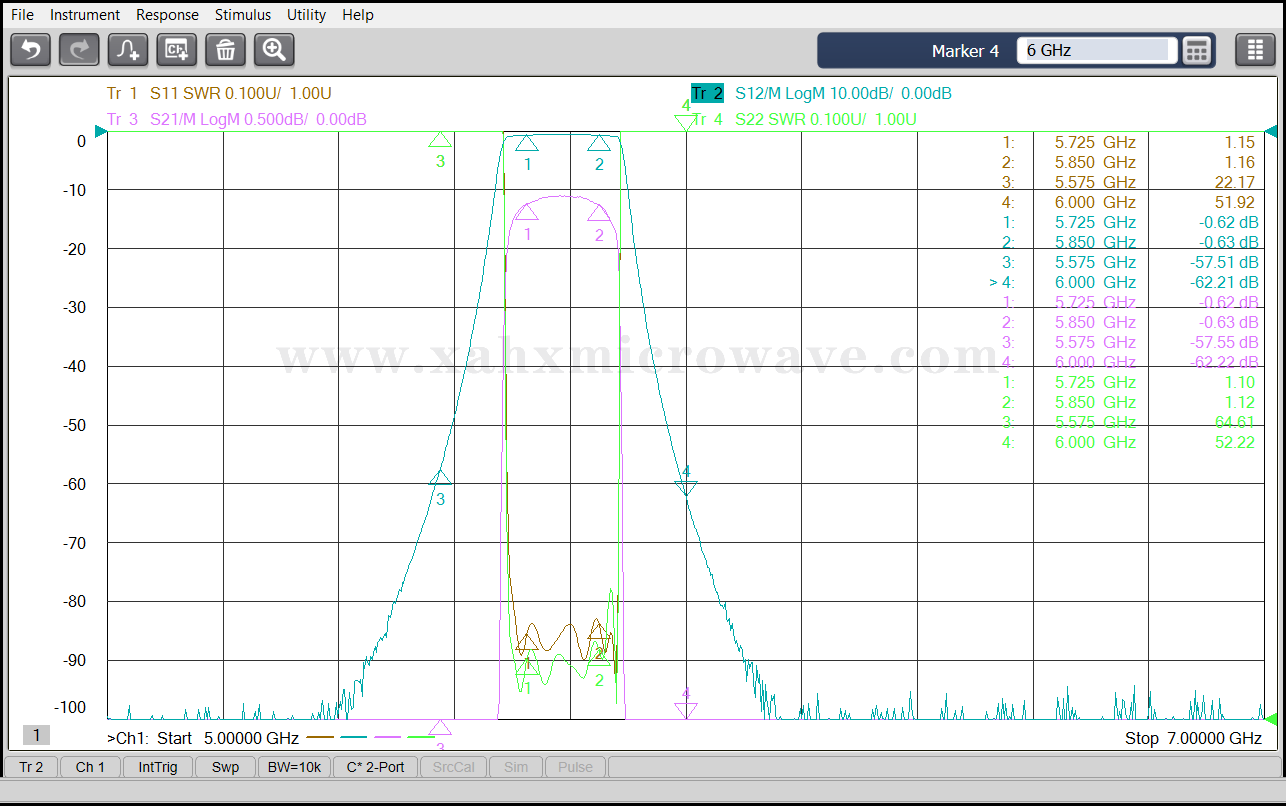

| Test Curve | |||
