| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2725MHz | |
| ● | Pass Band Frequency | 2650 ~ 2800MHz | |
| ● | Pass Band Insertion Loss | ≤1.4dB | |
| ● | Pass Band Ripple | ≤0.8dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2550MHz | ≥40dB @ 2850 ~ 2900MHz |
| ≥40dB @ 2550 ~ 2600MHz | ≥80dB @ 2900 ~ 6000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

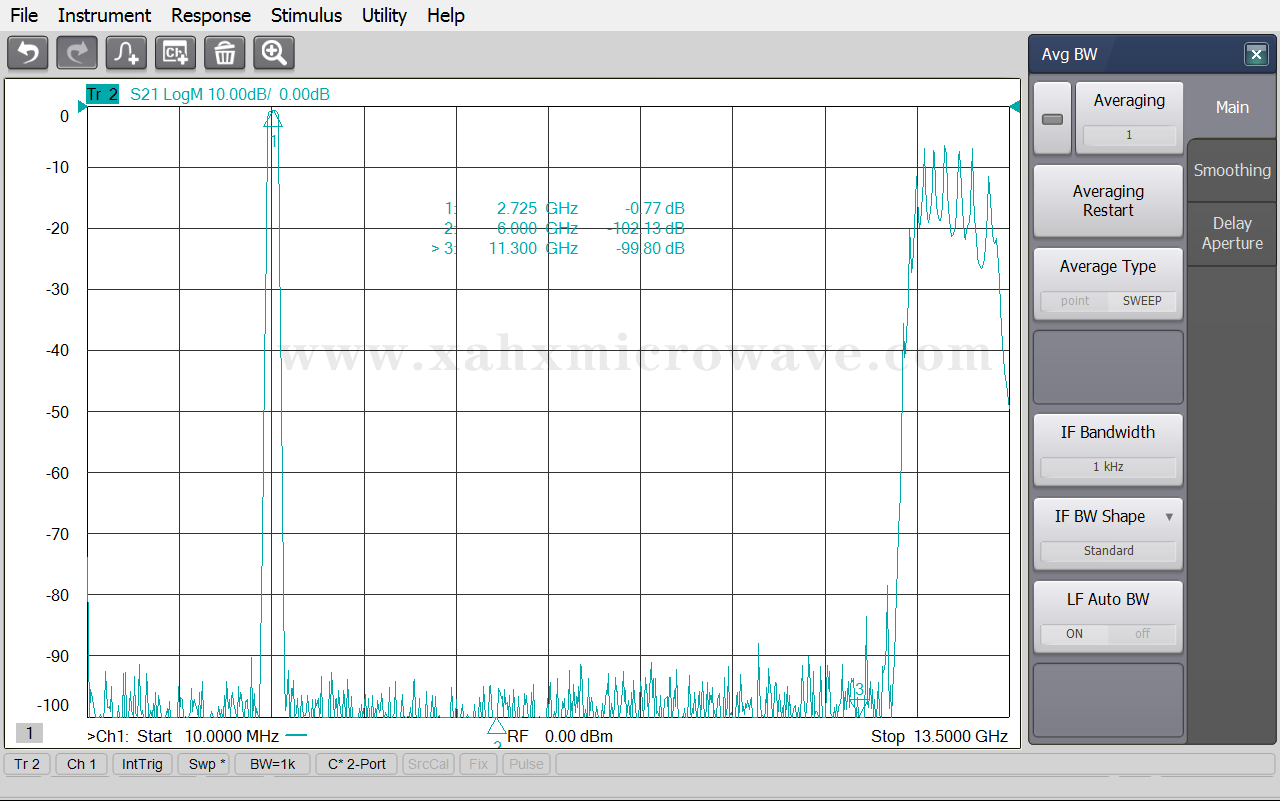

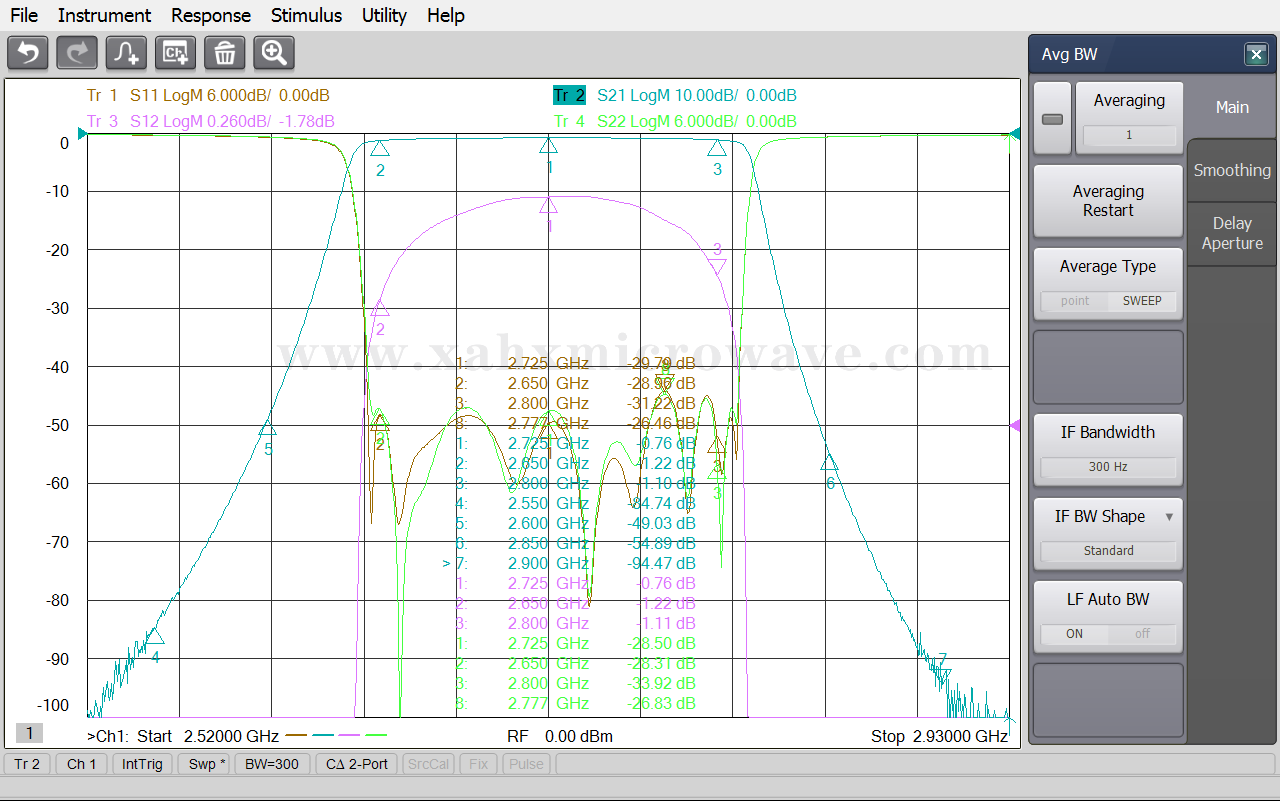

| Test Curve | |||
