| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5405MHz | |
| ● | Pass Band Frequency | 5350 ~ 5460MHz | |
| ● | Pass Band Insertion Loss | ≤3.0dB | |
| ● | Pass Band Ripple | ≤2.0dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥20dB @ DC ~ 5330MHz | ≥40dB @ 5490 ~ 12000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

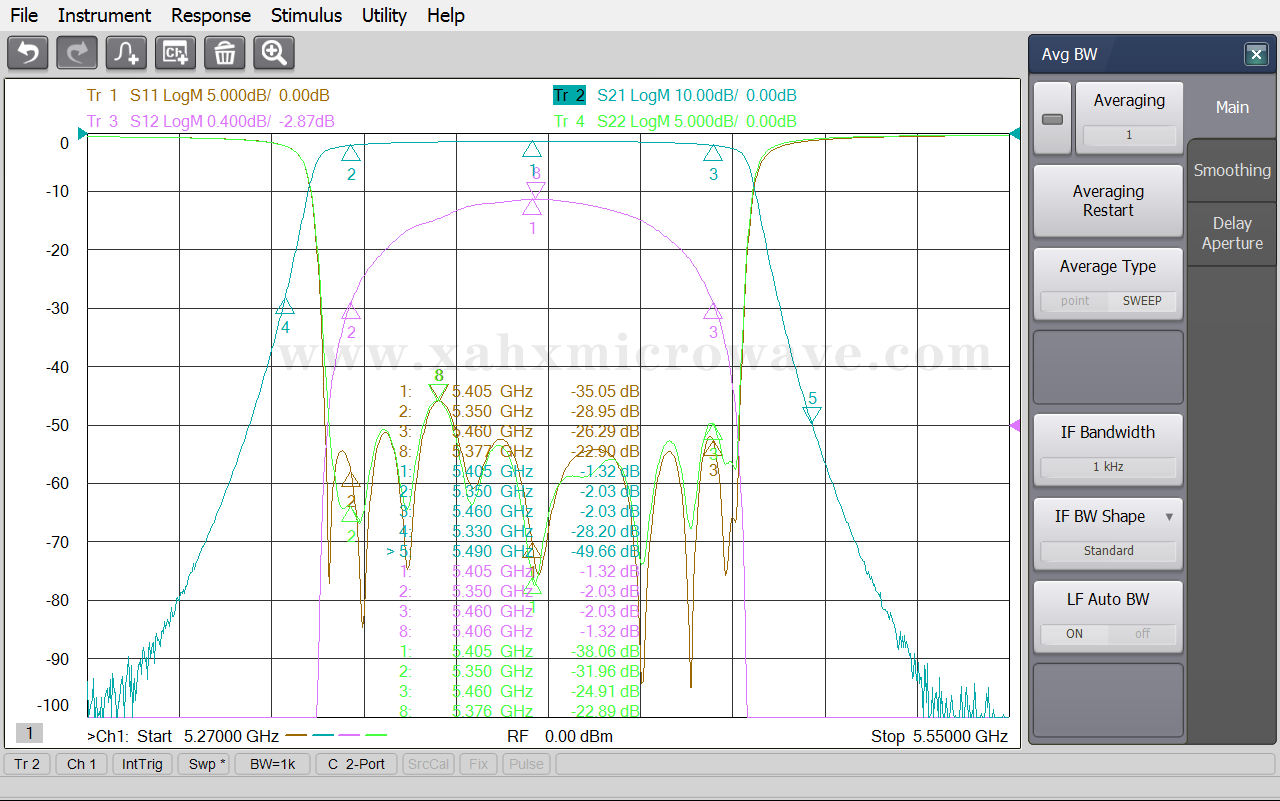

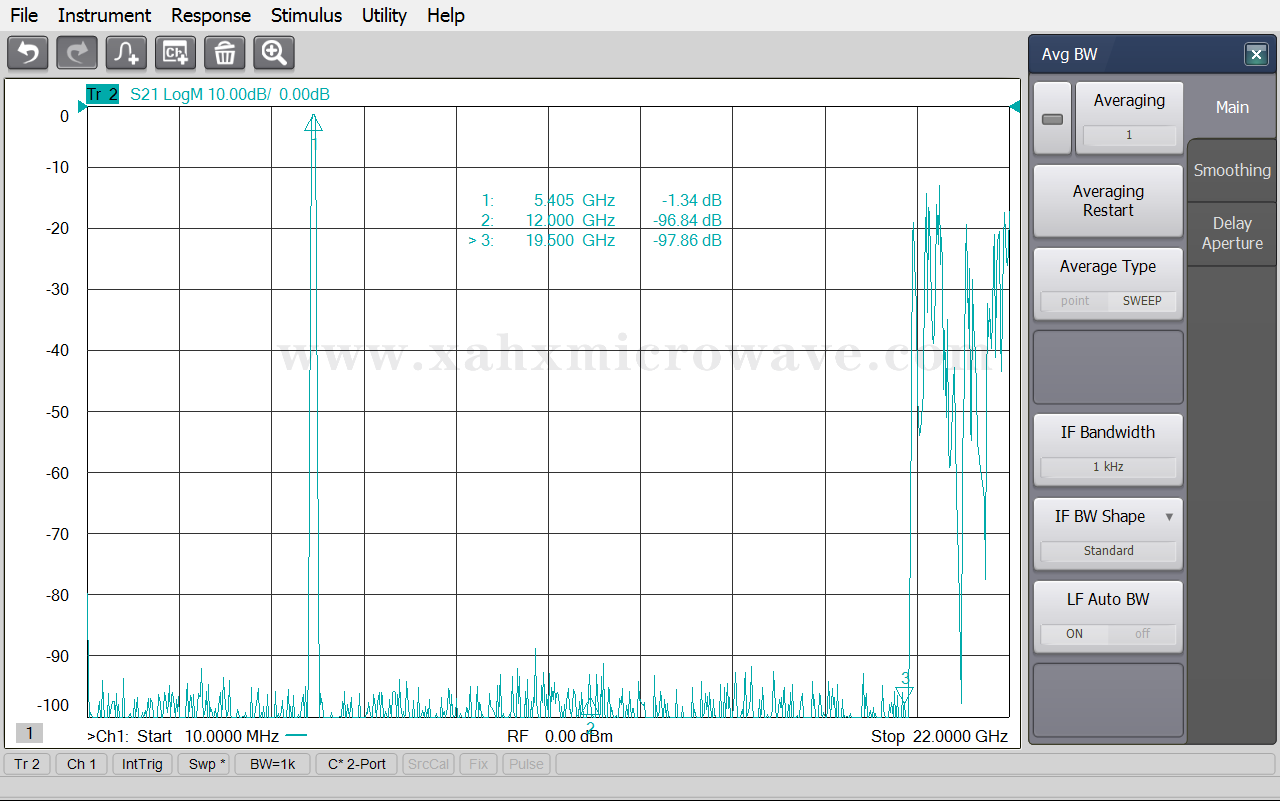

| Test Curve | |||
