| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1602MHz | |
| ● | Pass Band Frequency | 1597 ~ 1607MHz | |
| ● | Pass Band Insertion Loss | ≤2.5dB | |
| ● | Pass Band VSWR | ≤1.4:1 | |
| ● | Stop Band Rejection | ≥30dB @ 1582 ~ 1592MHz | ≥30dB @ 1612 ~ 1622MHz |
| ≥50dB @ DC ~ 1582MHz | ≥50dB @ 1622 ~ 3000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

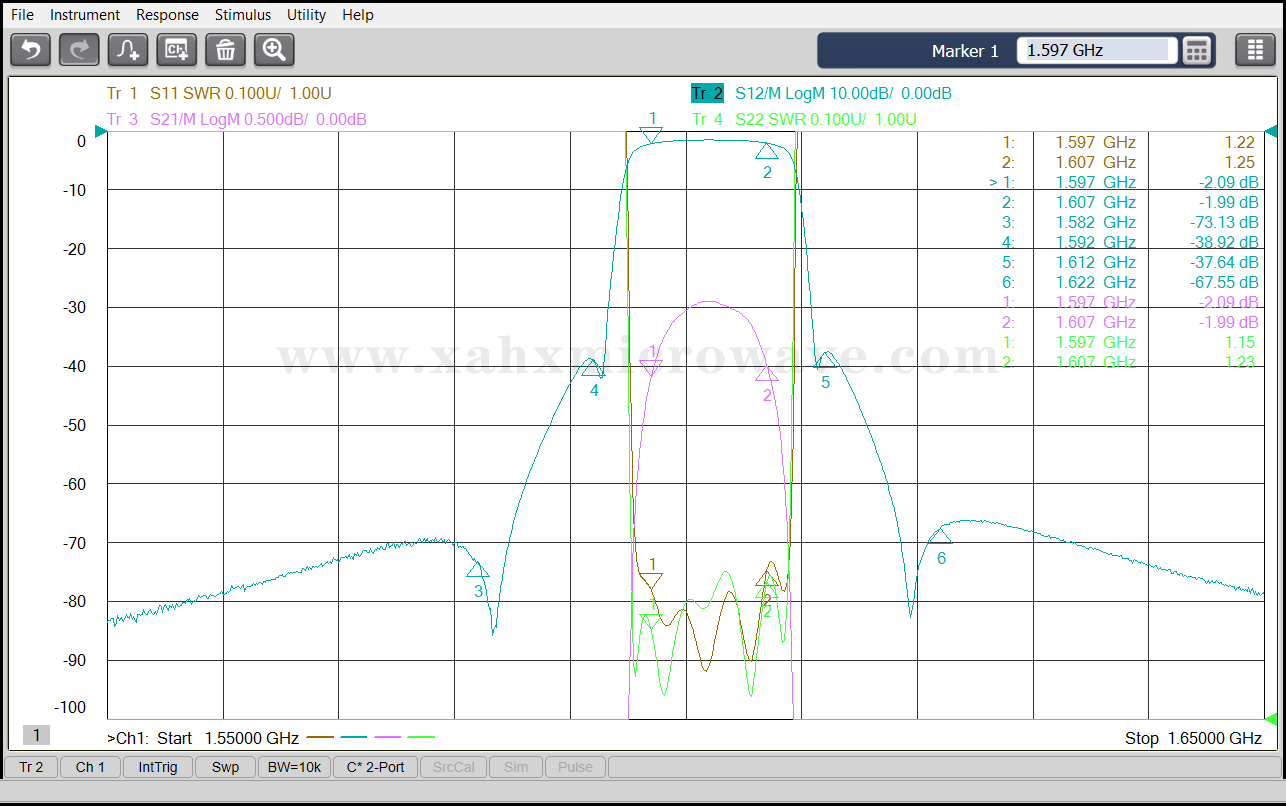

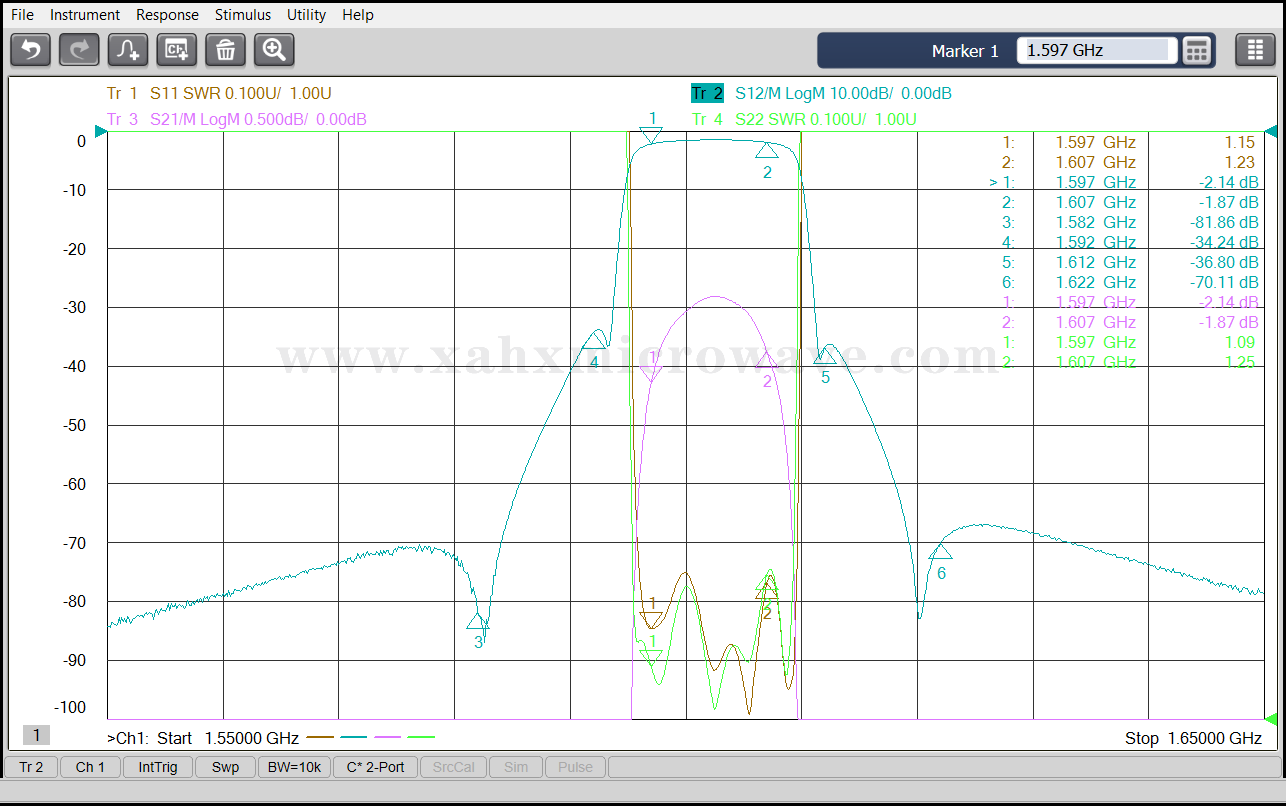

| Test Curve | |||
