| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2300MHz | |
| ● | Pass Band Frequency | 2250 ~ 2350MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥45dB @ DC ~ 2050MHz | ≥5.0dB @ 2400 ~ 2450MHz |
| ≥5.0dB @ 2050 ~ 2200MHz | ≥25dB @ 2450 ~ 6500MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

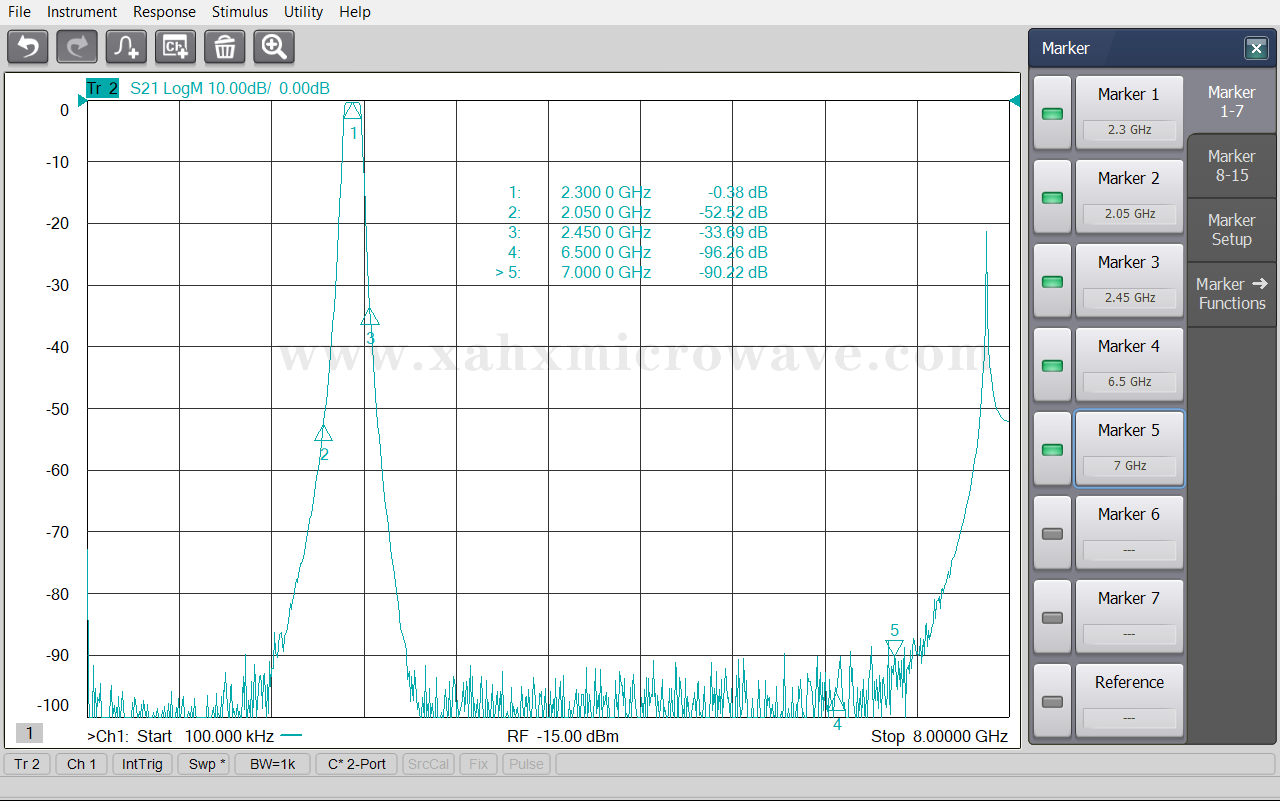

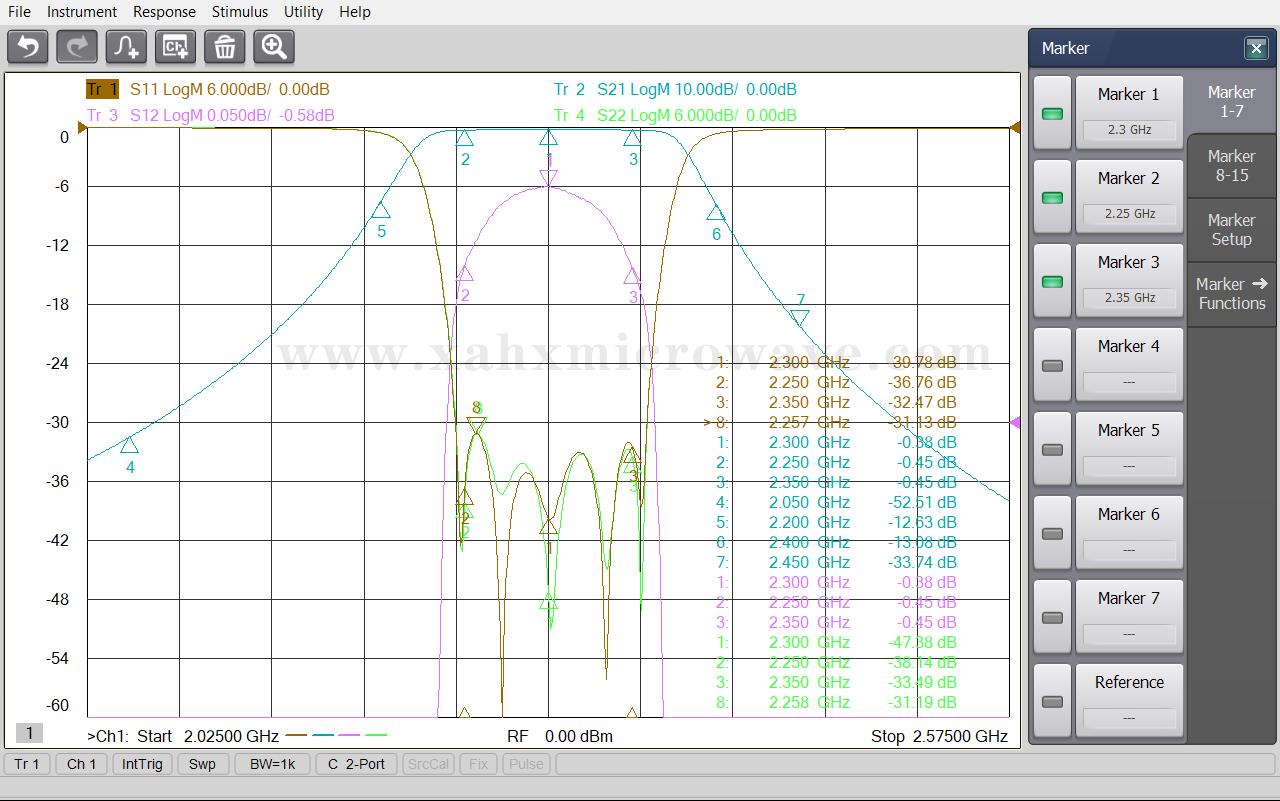

| Test Curve | |||
