Band Pass Filter

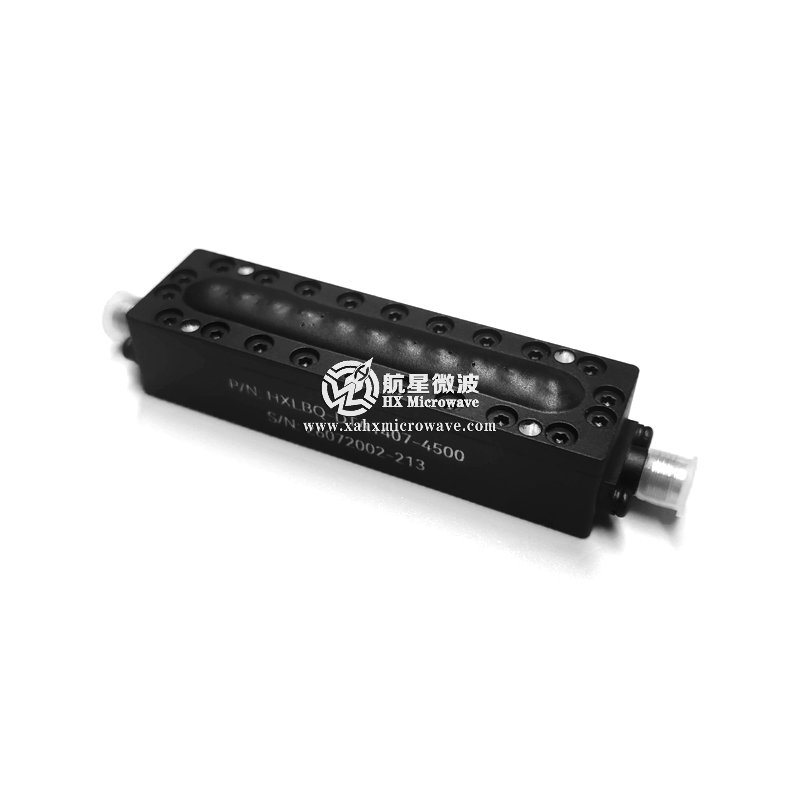

4.4GHz 4.5GHz 4.6GHz 4.7GHz 4.8GHz Cavity Band Pass Filter

Technical Data Sheet
●	Model	HXLBQ-DTA1407-4400	HXLBQ-DTA1407-4500	HXLBQ-DTA1407-4600	HXLBQ-DTA1407-4700	HXLBQ-DTA1407-4800
●	Center Frequency(F0)	4400MHz	4500MHz	4600MHz	4700MHz	4800MHz
●	Pass Band Frequency	4375 ~ 4425MHz	4475 ~ 4525MHz	4575 ~ 4625MHz	4675 ~ 4725MHz	4775 ~ 4825MHz
●	Pass Band Insertion Loss	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB
●	Pass Band Ripple	≤0.5dB	≤0.5dB	≤0.5dB	≤0.5dB	≤0.5dB
●	Pass Band Return Loss	≥20dB	≥20dB	≥20dB	≥20dB	≥20dB
●	Stop Band Rejection	≥20dB@ DC-4300MHz	≥20dB@ DC-4400MHz	≥20dB@ DC-4500MHz	≥20dB@ DC-4600MHz	≥20dB@ DC-4700MHz
●	Stop Band Rejection	≥20dB@4500-10000MHz	≥20dB@4600-10000MHz	≥20dB@4700-10000MHz	≥20dB@4800-10000MHz	≥20dB@4900-10000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

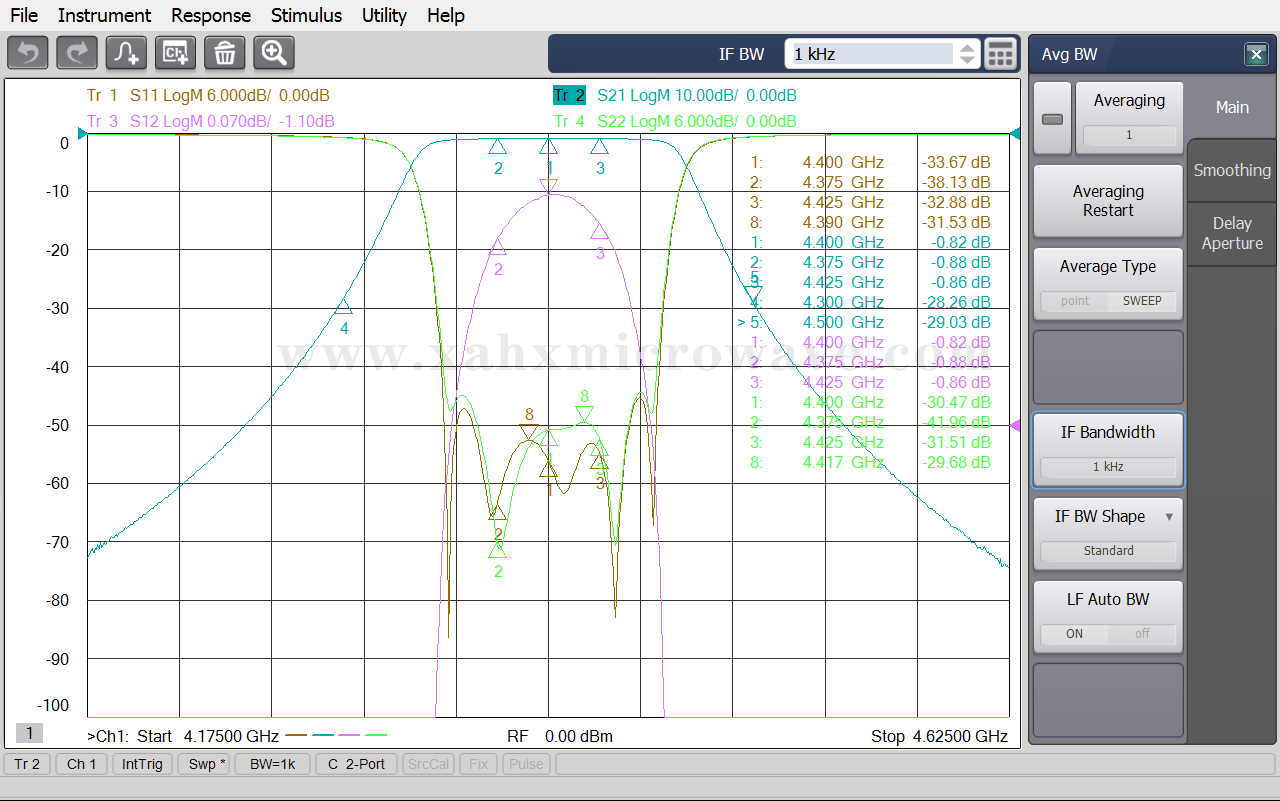

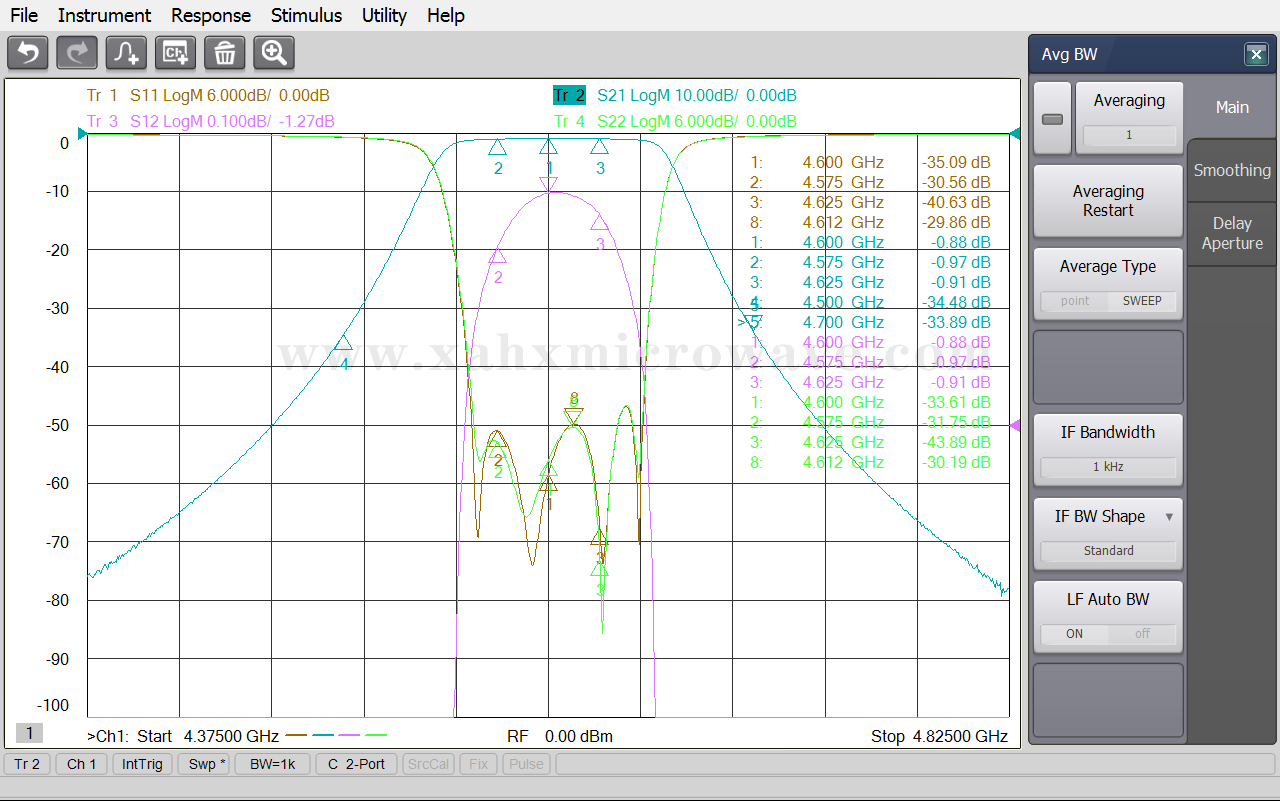

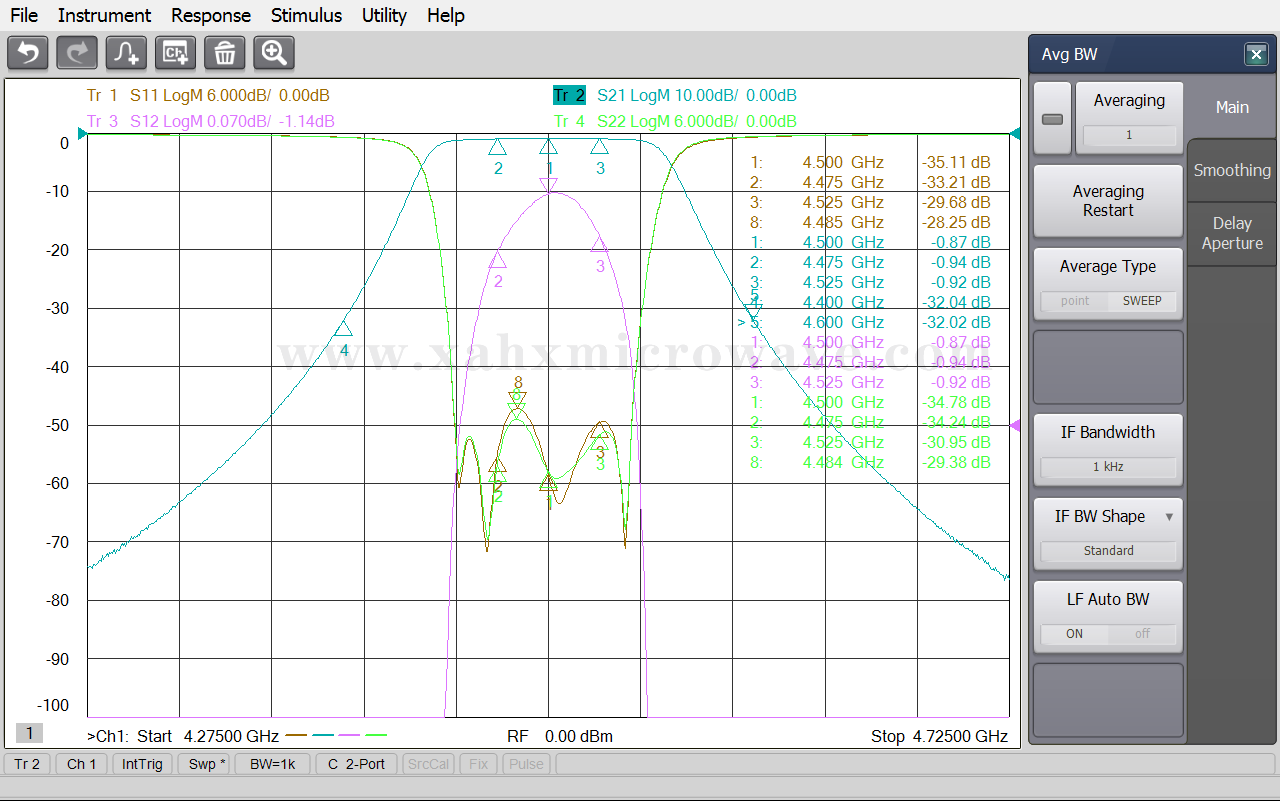

Test Curve
