| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 10GHz | |
| ● | Pass Band Frequency | 8.0 ~ 12GHz | |
| ● | Pass Band Insertion Loss | ≤0.85dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 7.1GHz | ≥80dB @ 12.5 ~ 21.5GHz |
| ≥50dB @ 7.1 ~ 7.5GHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

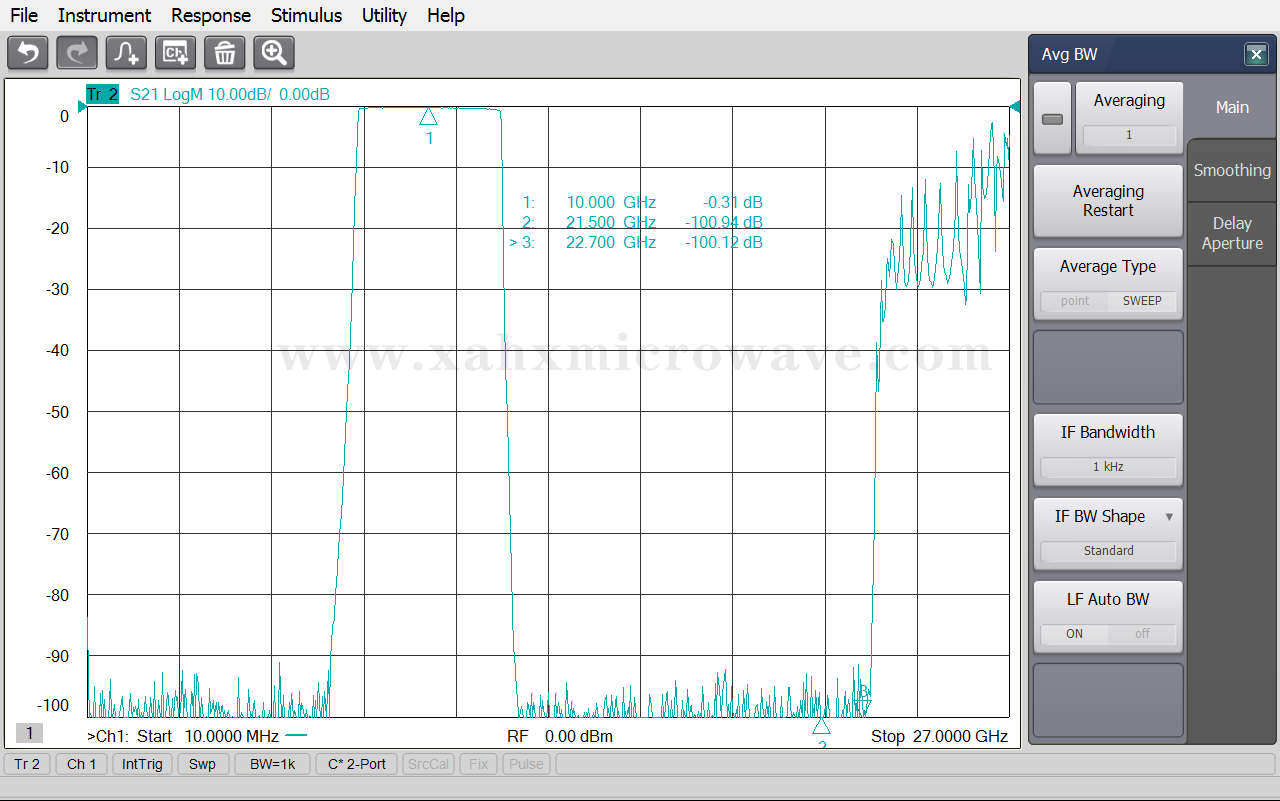

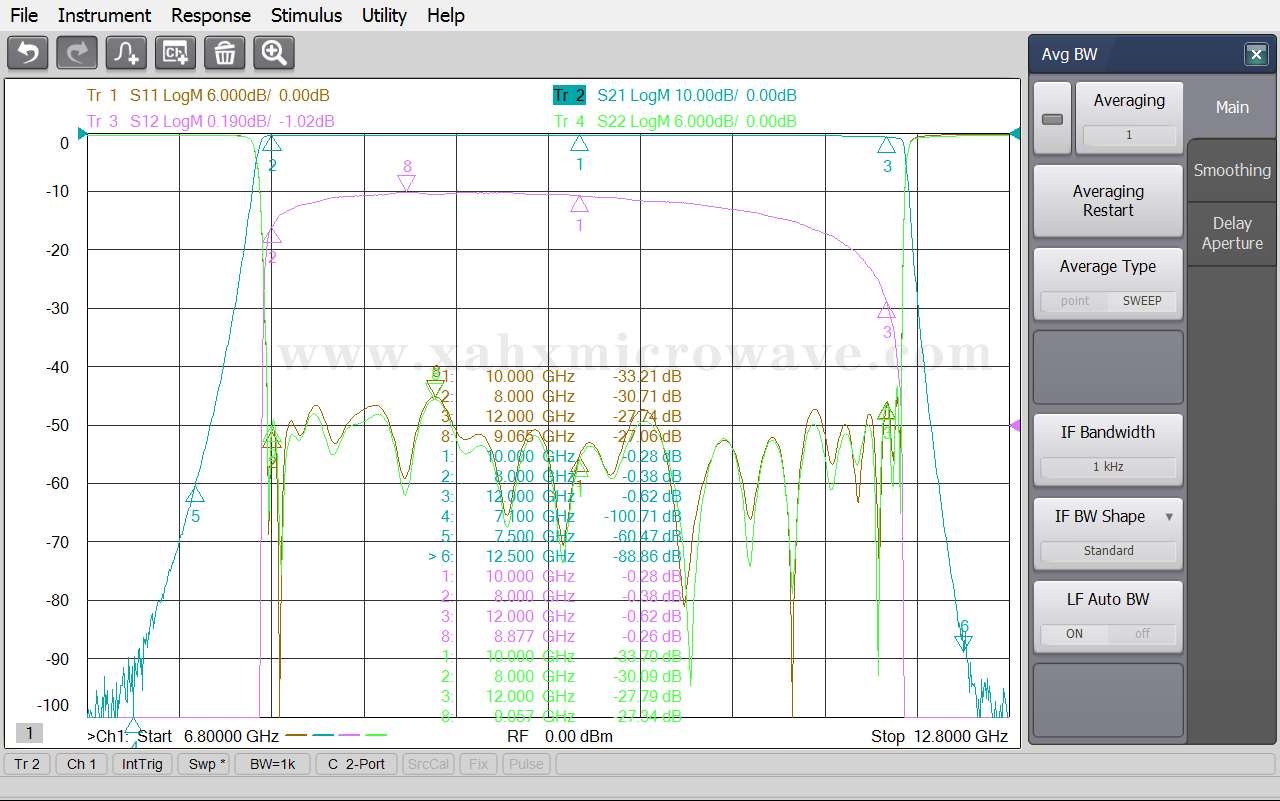

| Test Curve | |||
