Band Pass Filter

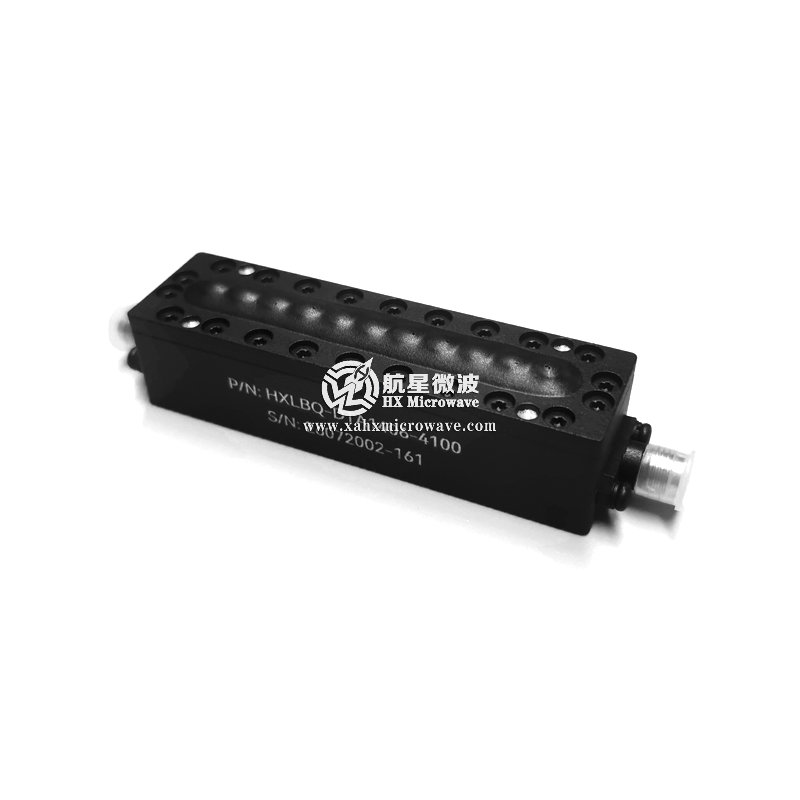

3.9GHz 4GHz 4.1GHz 4.2GHz 4.3GHz Cavity Band Pass Filter

Technical Data Sheet
●	Model	HXLBQ-DTA1406-3900	HXLBQ-DTA1406-4000	HXLBQ-DTA1406-4100	HXLBQ-DTA1406-4200	HXLBQ-DTA1406-4300
●	Center Frequency(F0)	3900MHz	4000MHz	4100MHz	4200MHz	4300MHz
●	Pass Band Frequency	3875 ~ 3925MHz	3975 ~ 4025MHz	4075 ~ 4125MHz	4175 ~ 4225MHz	4275 ~ 4325MHz
●	Pass Band Insertion Loss	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB
●	Pass Band Ripple	≤0.5dB	≤0.5dB	≤0.5dB	≤0.5dB	≤0.5dB
●	Pass Band Return Loss	≥20dB	≥20dB	≥20dB	≥20dB	≥20dB
●	Stop Band Rejection	≥20dB@ DC-3800MHz	≥20dB@ DC-3900MHz	≥20dB@ DC-4000MHz	≥20dB@ DC-4100MHz	≥20dB@ DC-4200MHz
●	Stop Band Rejection	≥20dB@4000-9000MHz	≥20dB@4100-9000MHz	≥20dB@4200-9000MHz	≥20dB@4300-9000MHz	≥20dB@4400-9000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

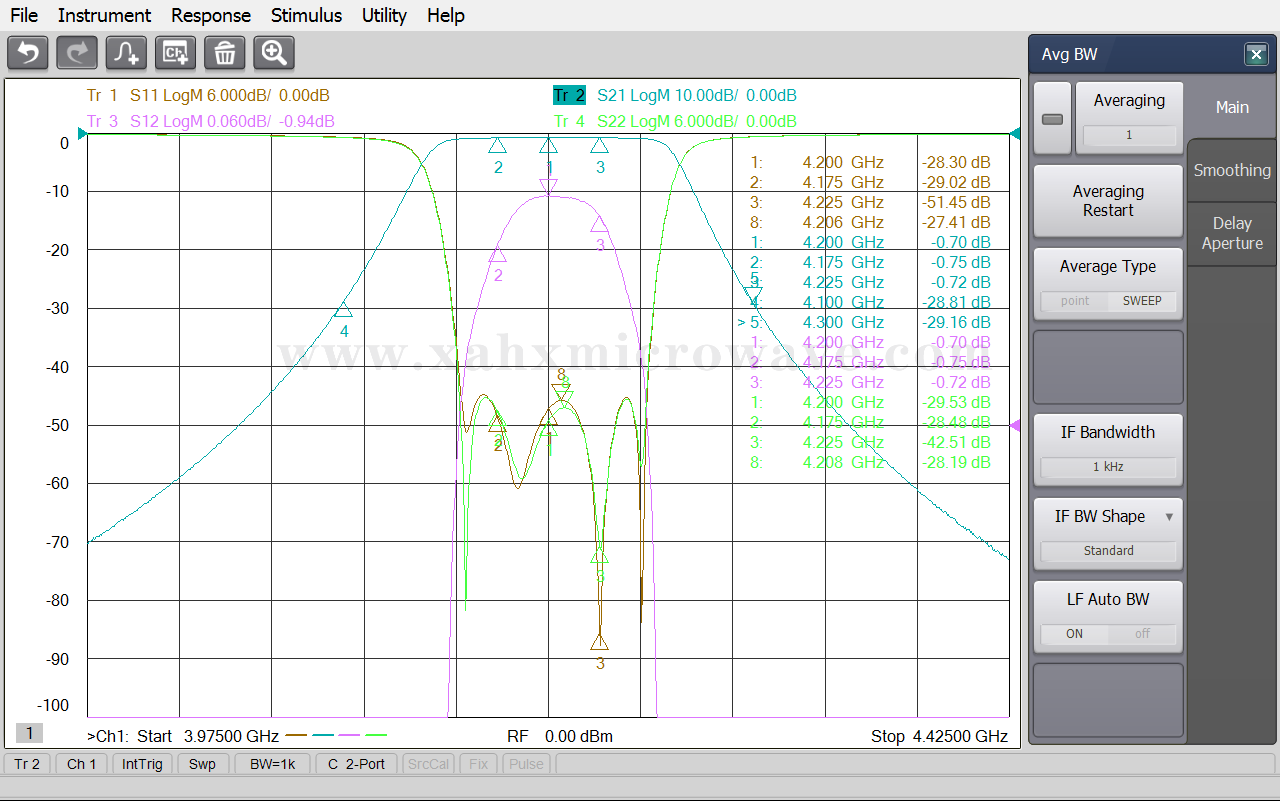

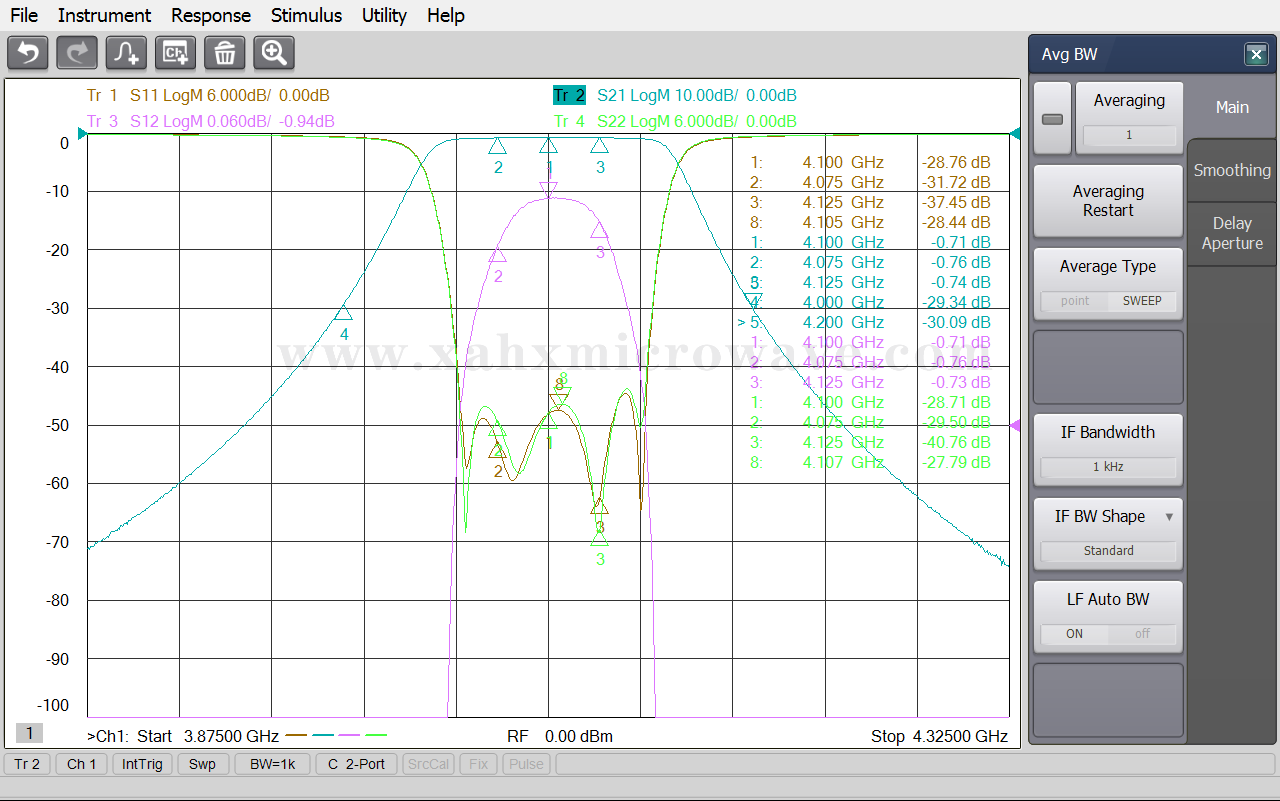

Test Curve
