Band Pass Filter

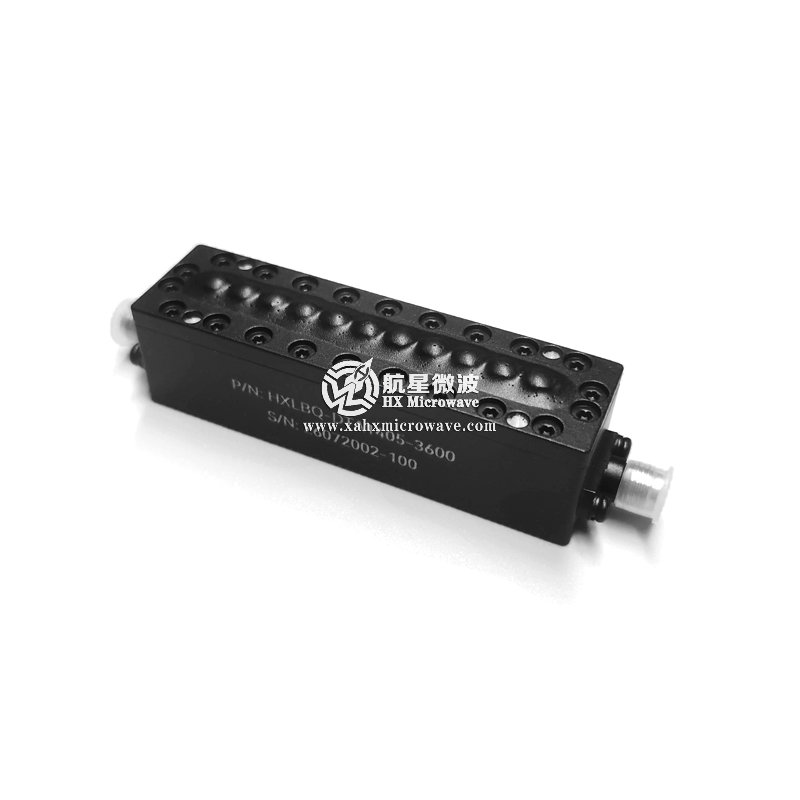

3.5GHz 3.6GHz 3.7GHz 3.8GHz Cavity Band Pass Filter

Technical Data Sheet
●	Model	HXLBQ-DTA1405-3380	HXLBQ-DTA1405-3500	HXLBQ-DTA1405-3600	HXLBQ-DTA1405-3700	HXLBQ-DTA1405-3800
●	Center Frequency(F0)	3380MHz	3500MHz	3600MHz	3700MHz	3800MHz
●	Pass Band Frequency	3355 ~ 3405MHz	3475 ~ 3525MHz	3575 ~ 3625MHz	3675 ~ 3725MHz	3775 ~ 3825MHz
●	Pass Band Insertion Loss	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB
●	Pass Band Ripple	≤0.5dB	≤0.5dB	≤0.5dB	≤0.5dB	≤0.5dB
●	Pass Band Return Loss	≥20dB	≥20dB	≥20dB	≥20dB	≥20dB
●	Stop Band Rejection	≥20dB@ DC-3280MHz	≥20dB@ DC-3400MHz	≥20dB@ DC-3500MHz	≥20dB@ DC-3600MHz	≥20dB@ DC-3700MHz
●	Stop Band Rejection	≥20dB@3480-8000MHz	≥20dB@3600-8000MHz	≥20dB@3700-8000MHz	≥20dB@3800-8000MHz	≥20dB@3900-8000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

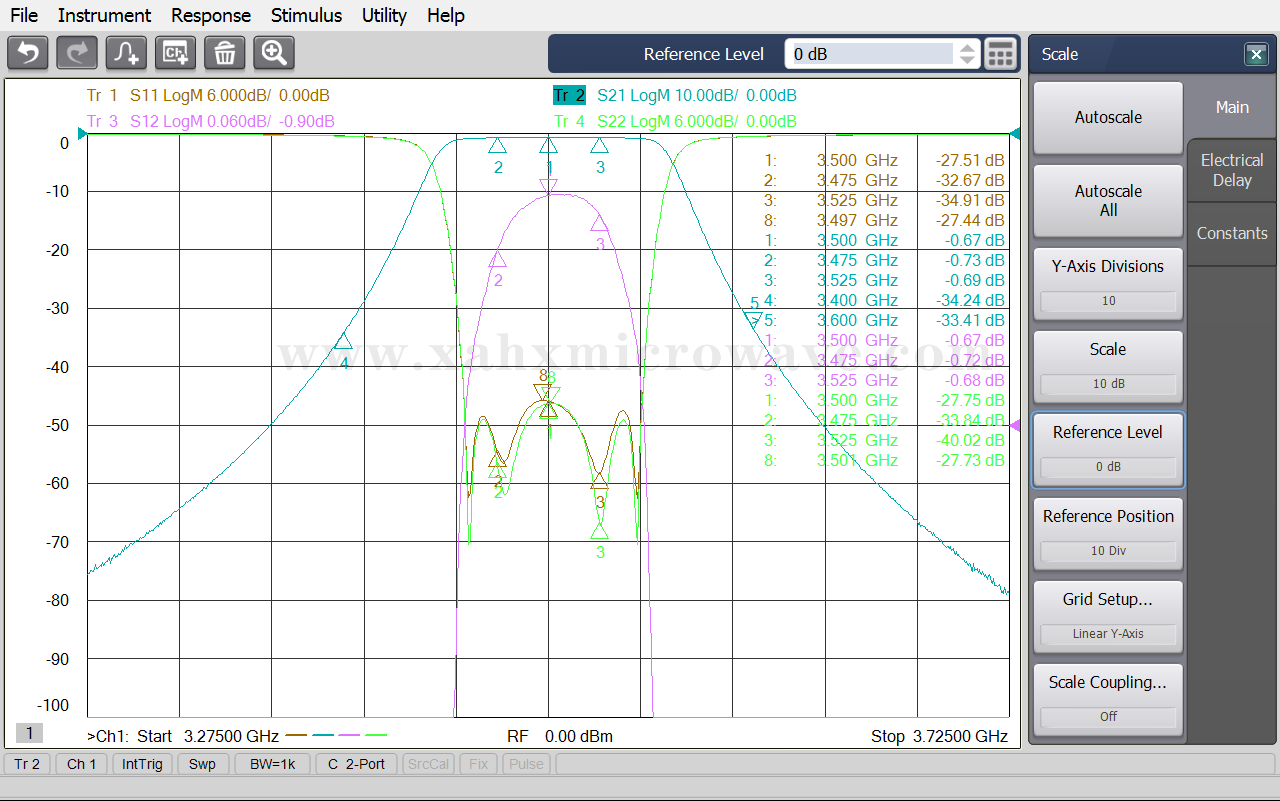

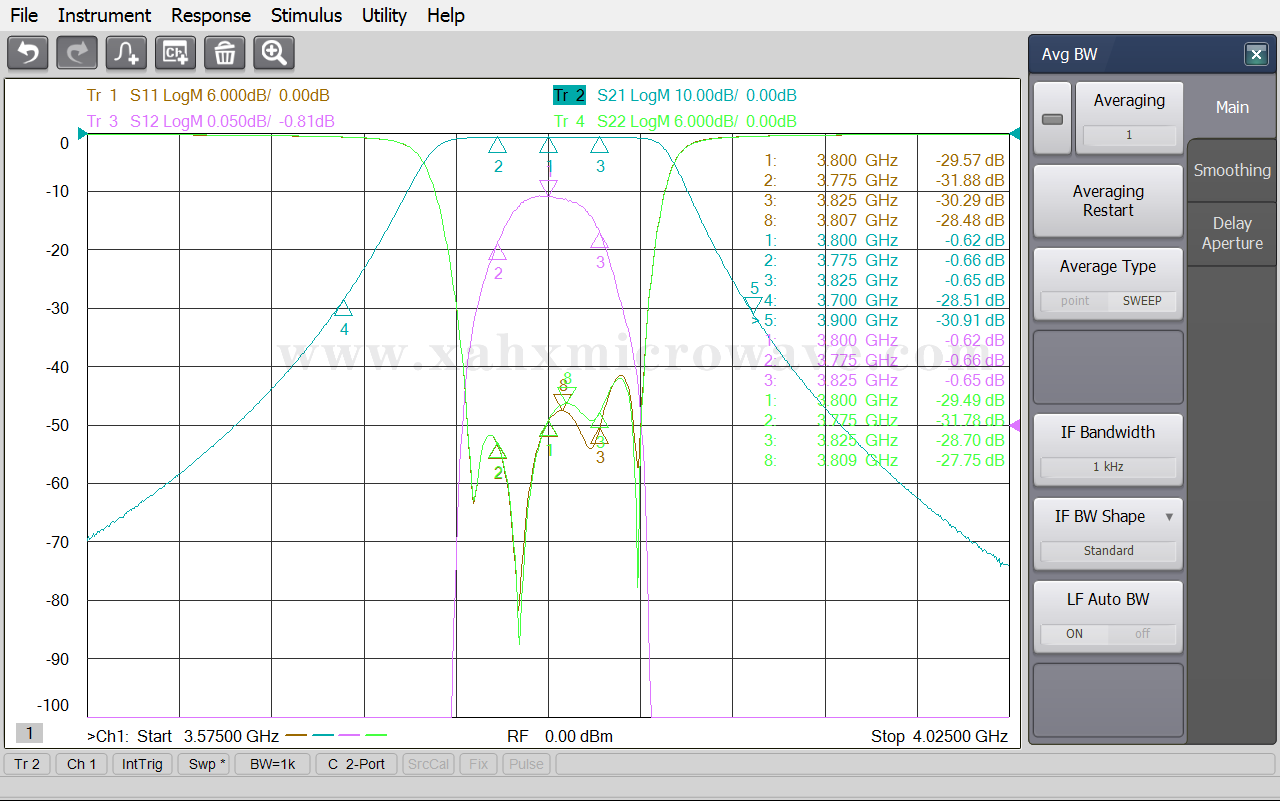

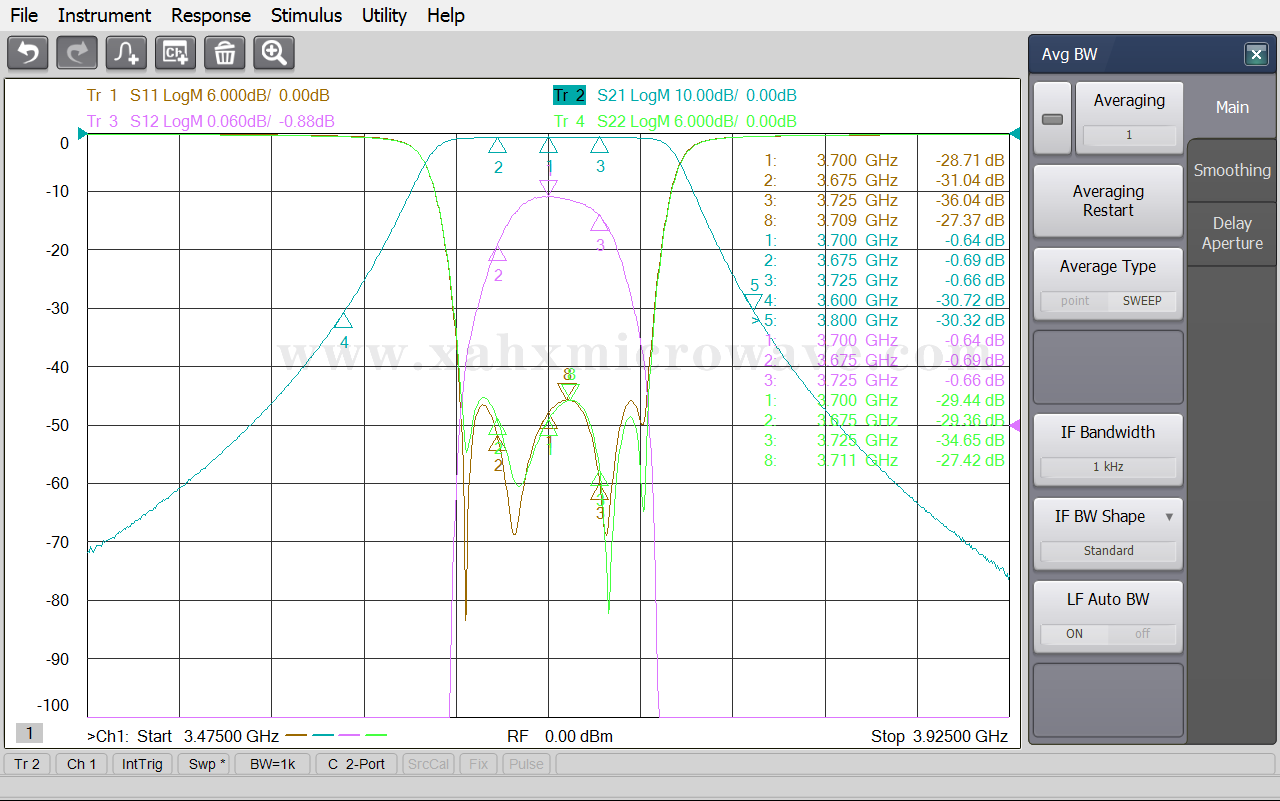

Test Curve
