Band Pass Filter

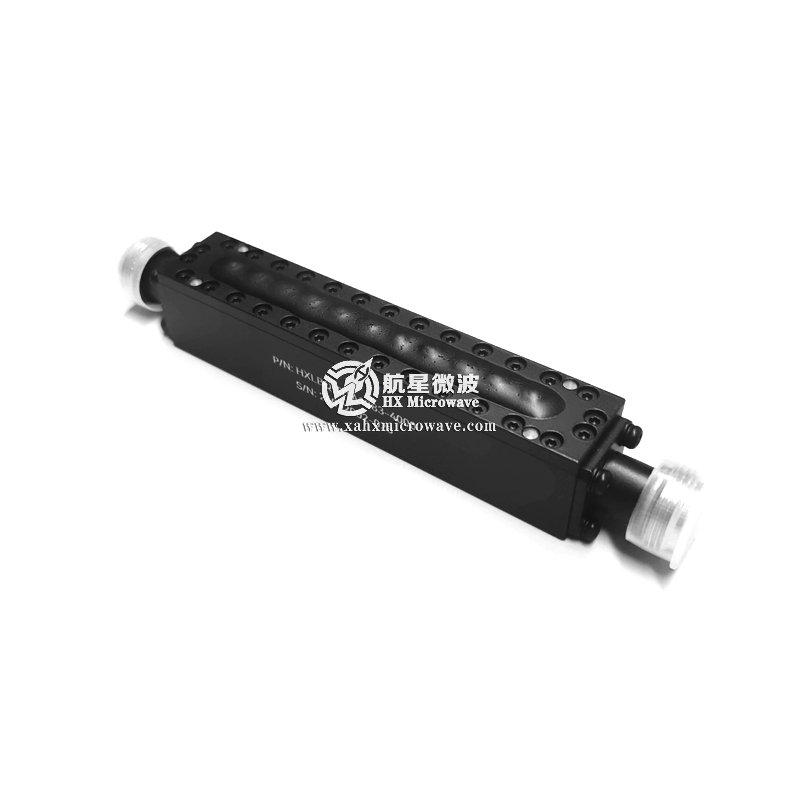

3.9GHz 4GHz 4.1GHz 4.2GHz 4.3GHz Cavity Band Pass Filter

Technical Data Sheet
●	Model	HXLBQ-DTA1383-3900	HXLBQ-DTA1383-4000	HXLBQ-DTA1383-4100	HXLBQ-DTA1383-4200	HXLBQ-DTA1383-4300
●	Center Frequency(F0)	3900MHz	4000MHz	4100MHz	4200MHz	4300MHz
●	Pass Band Frequency	3875 ~ 3925MHz	3975 ~ 4025MHz	4075 ~ 4125MHz	4175 ~ 4225MHz	4275 ~ 4325MHz
●	Pass Band Insertion Loss	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB
●	Pass Band Ripple	≤0.7dB	≤0.7dB	≤0.7dB	≤0.7dB	≤0.7dB
●	Pass Band Return Loss	≥20dB	≥20dB	≥20dB	≥20dB	≥20dB
●	Stop Band Rejection	≥20dB@ DC-3825MHz	≥20dB@ DC-3925MHz	≥20dB@ DC-4025MHz	≥20dB@ DC-4125MHz	≥20dB@ DC-4225MHz
●	Stop Band Rejection	≥20dB@3975-8000MHz	≥20dB@4075-8000MHz	≥20dB@4175-8000MHz	≥20dB@4275-8000MHz	≥20dB@4375-8000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black

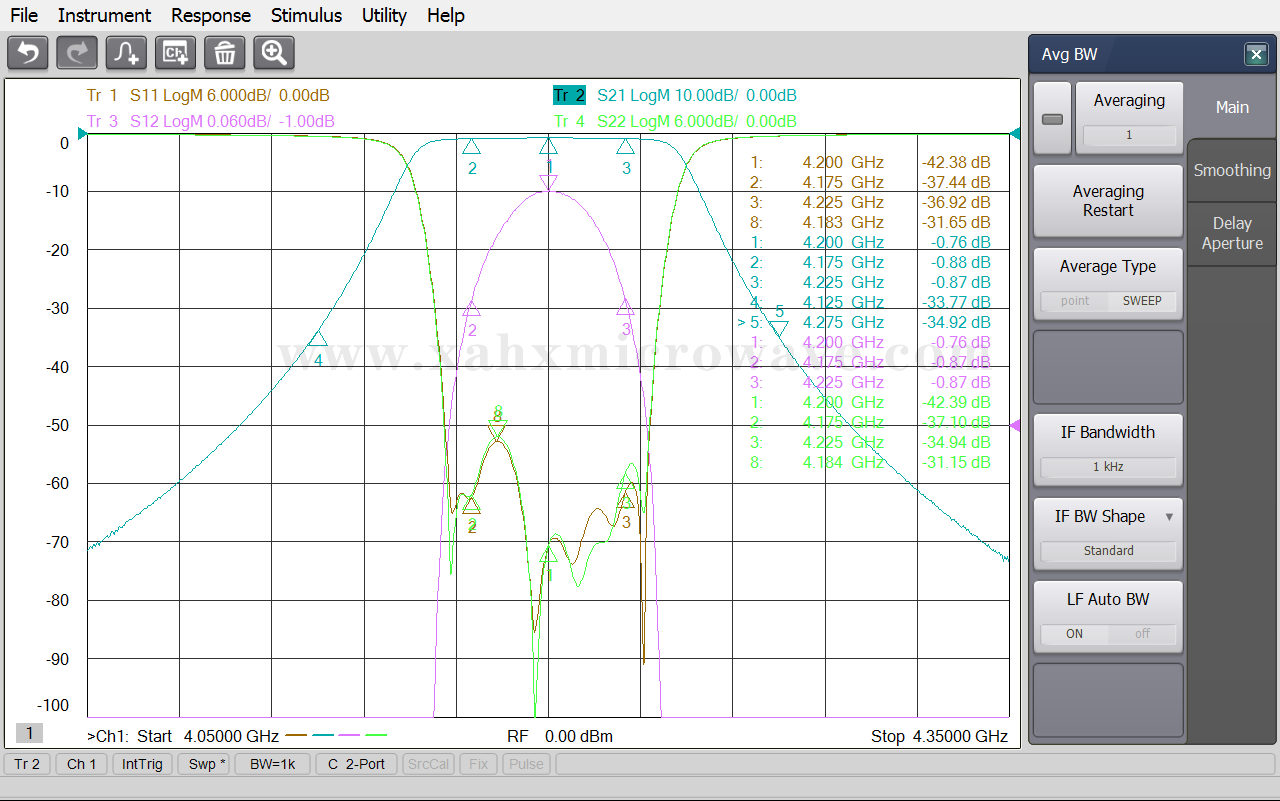

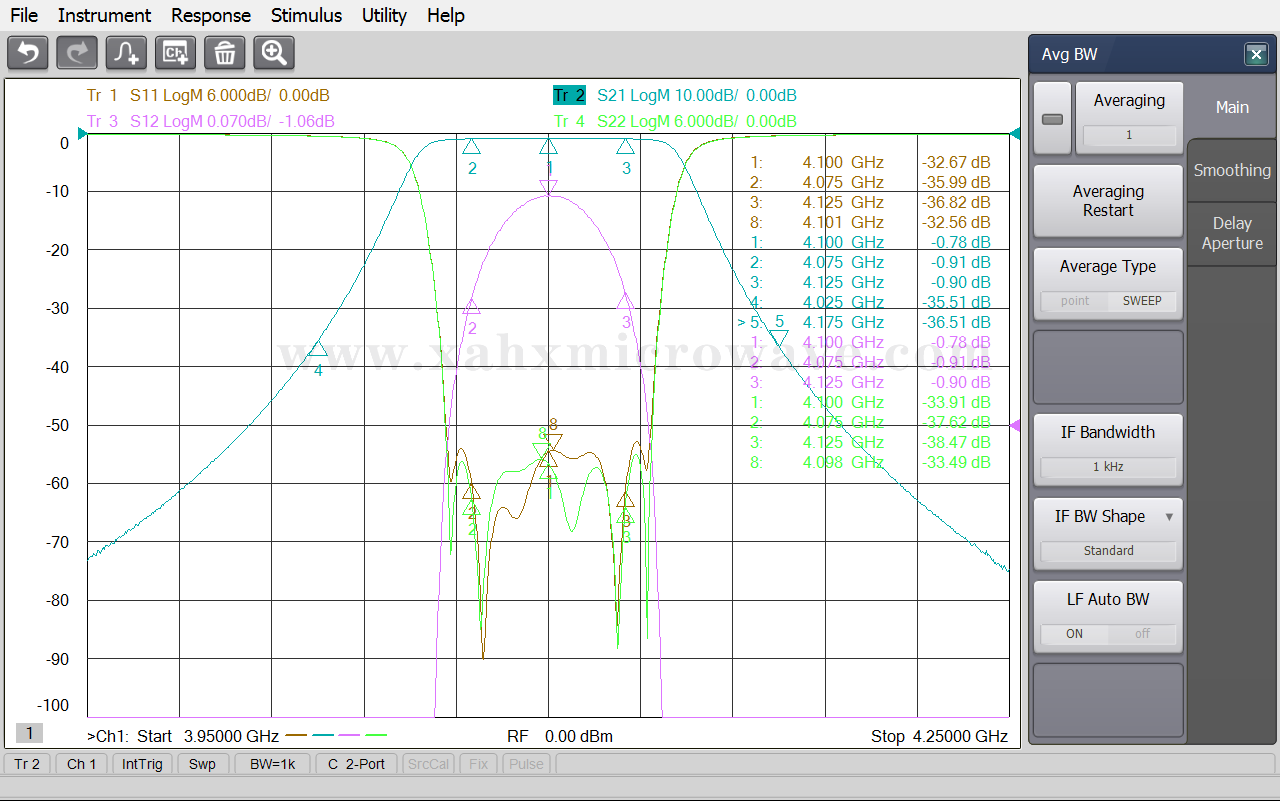

Test Curve
