Band Pass Filter

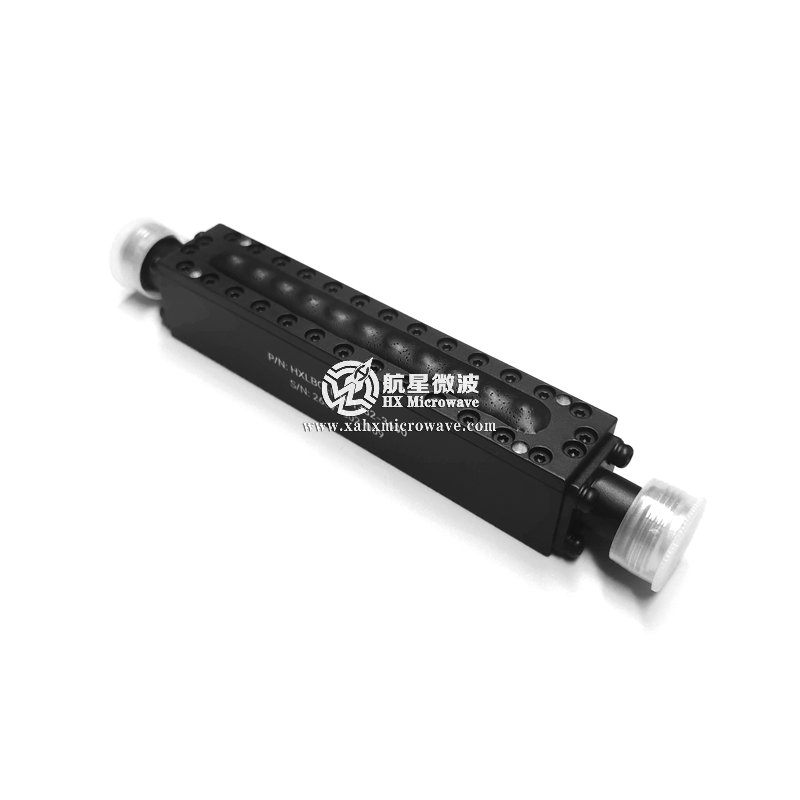

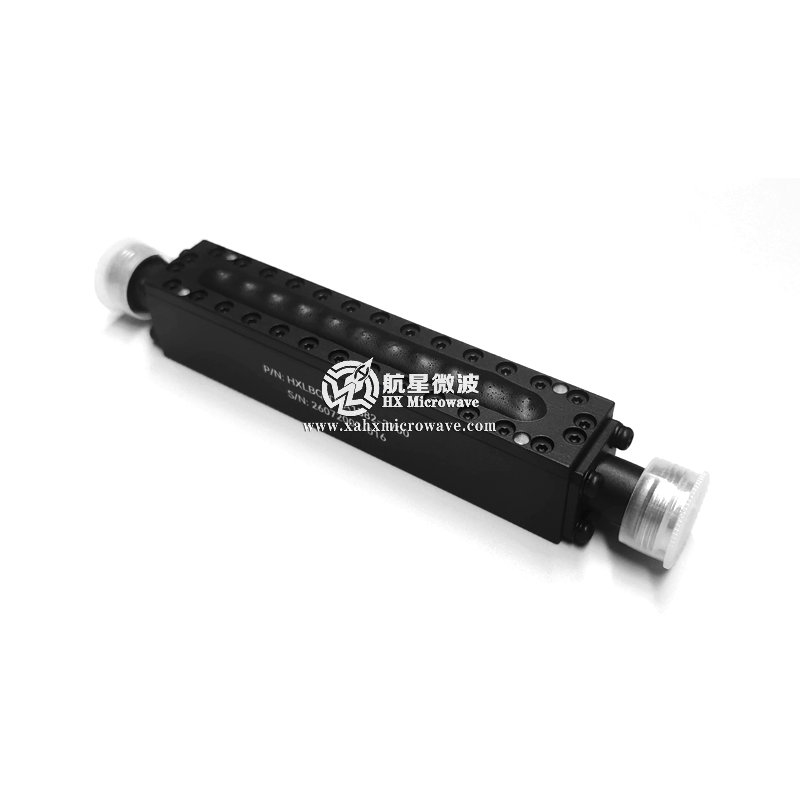

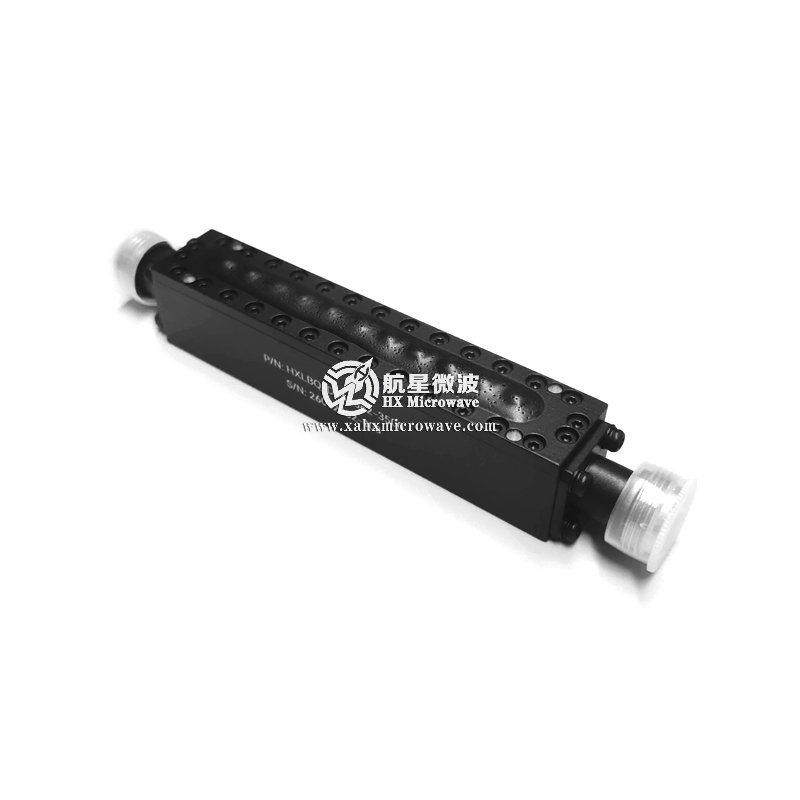

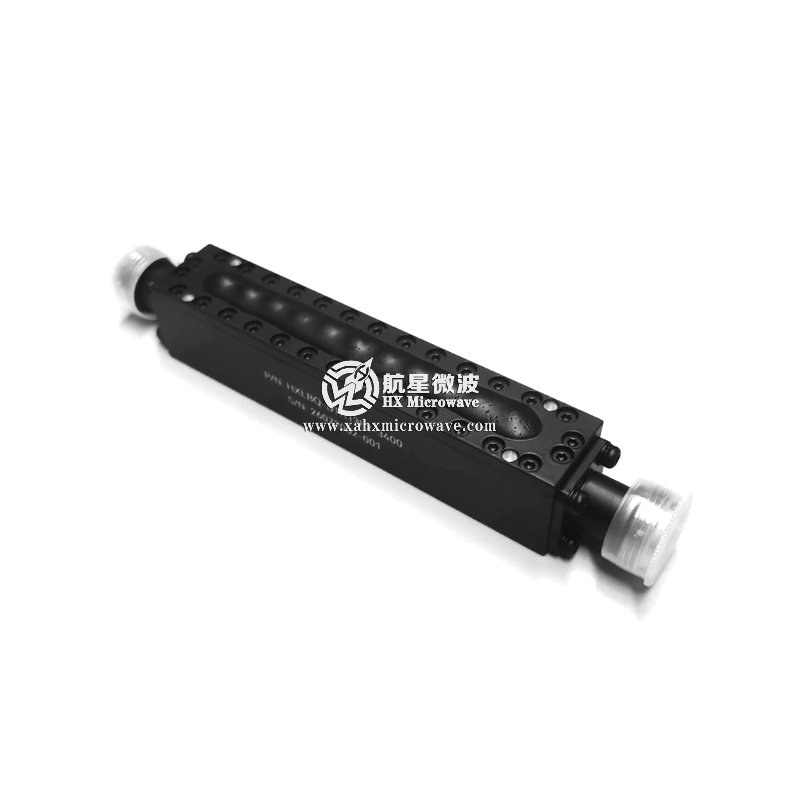

3.4GHz 3.5GHz 3.6GHz 3.7GHz 3.8GHz_Cavity Band Pass Filter

Technical Data Sheet
●	Model	HXLBQ-DTA1382-3400	HXLBQ-DTA1382-3500	HXLBQ-DTA1382-3600	HXLBQ-DTA1382-3700	HXLBQ-DTA1382-3800
●	Center Frequency(F0)	3400MHz	3500MHz	3600MHz	3700MHz	3800MHz
●	Pass Band Frequency	3375 ~ 3425MHz	3475 ~ 3525MHz	3575 ~ 3625MHz	3675 ~ 3725MHz	3775 ~ 3825MHz
●	Pass Band Insertion Loss	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB
●	Pass Band Ripple	≤0.7dB	≤0.7dB	≤0.7dB	≤0.7dB	≤0.7dB
●	Pass Band Return Loss	≥20dB	≥20dB	≥20dB	≥20dB	≥20dB
●	Stop Band Rejection	≥20dB@ DC-3325MHz	≥20dB@ DC-3425MHz	≥20dB@ DC-3525MHz	≥20dB@ DC-3625MHz	≥20dB@ DC-3725MHz
●	Stop Band Rejection	≥20dB@3475-7000MHz	≥20dB@3575-7000MHz	≥20dB@3675-7000MHz	≥20dB@3775-7000MHz	≥20dB@3875-7000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black

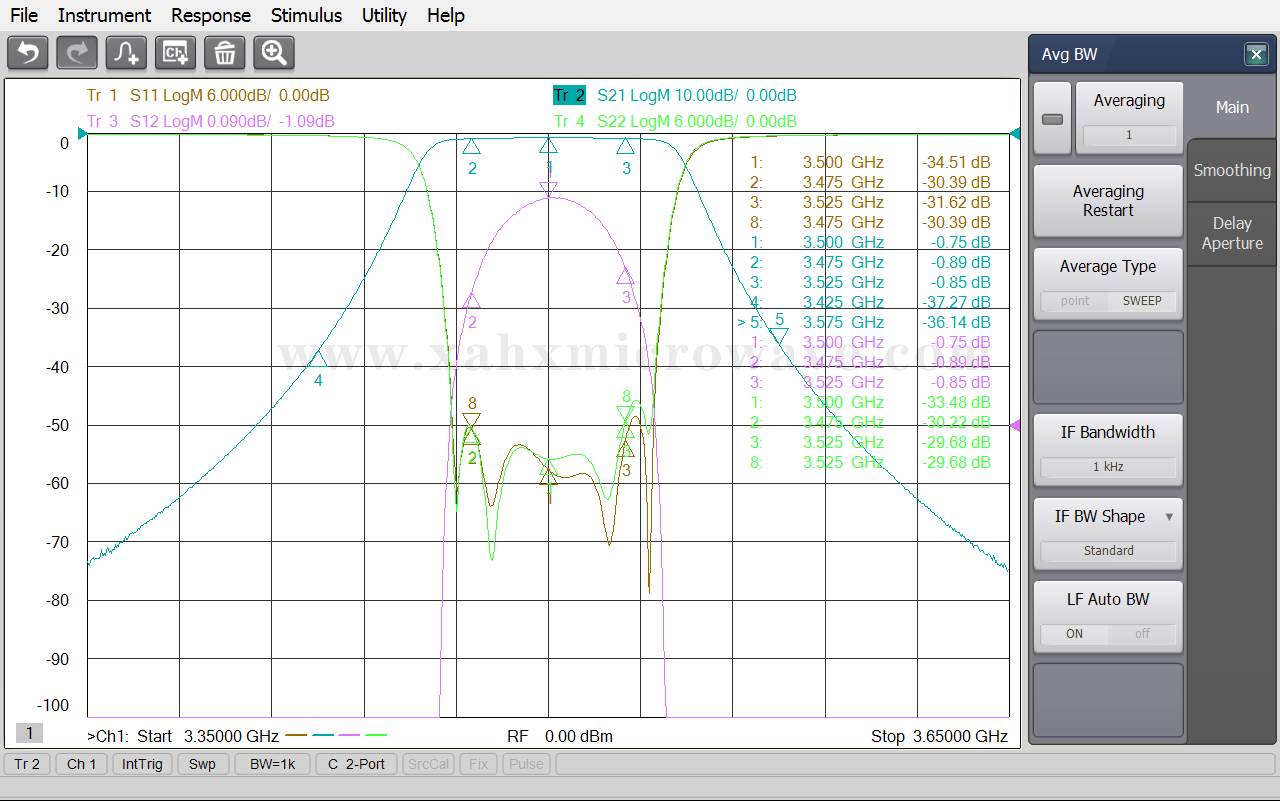

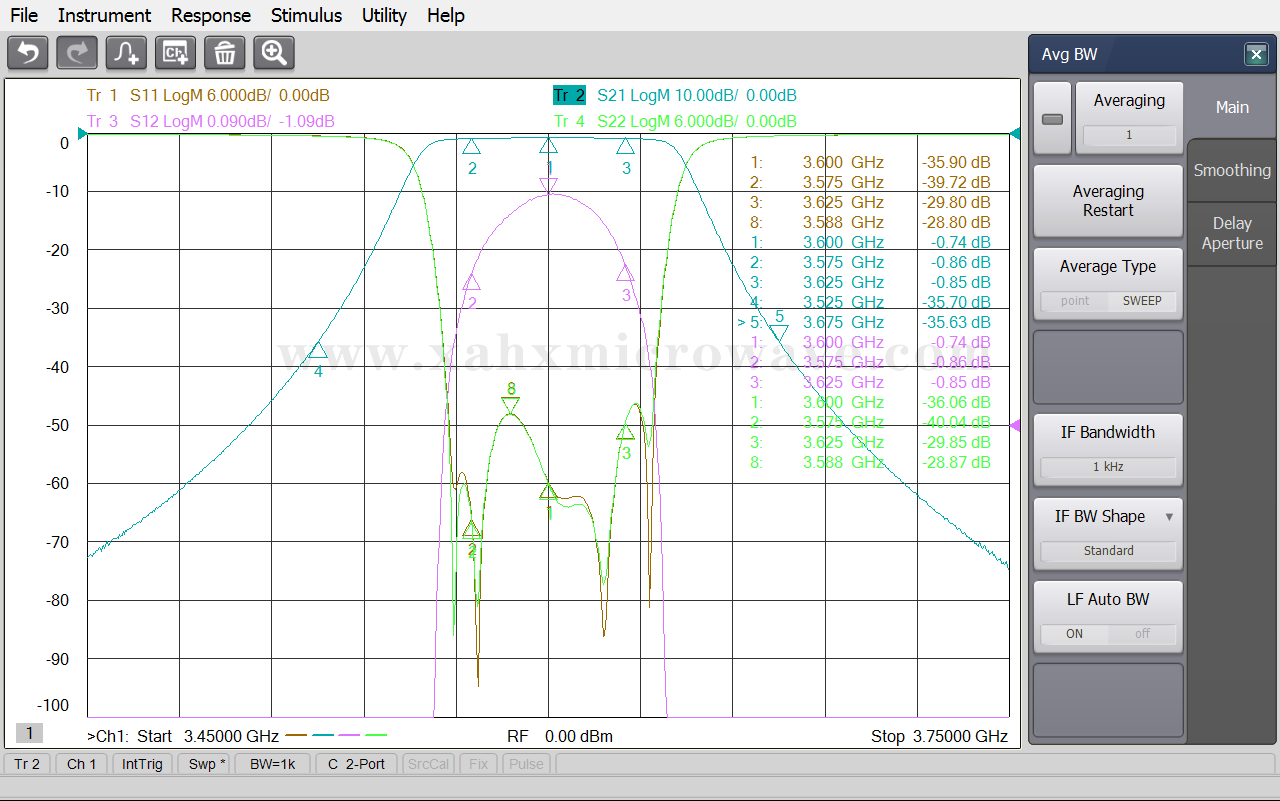

Test Curve
