| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 17.5GHz | |
| ● | Pass Band Frequency | 17.3 ~ 17.7GHz | |
| ● | Pass Band Insertion Loss | ≤1.2dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 16.7GHz | ≥80dB @ 18.3 ~ 33GHz |
| ≥50dB @ 33 ~ 35GHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

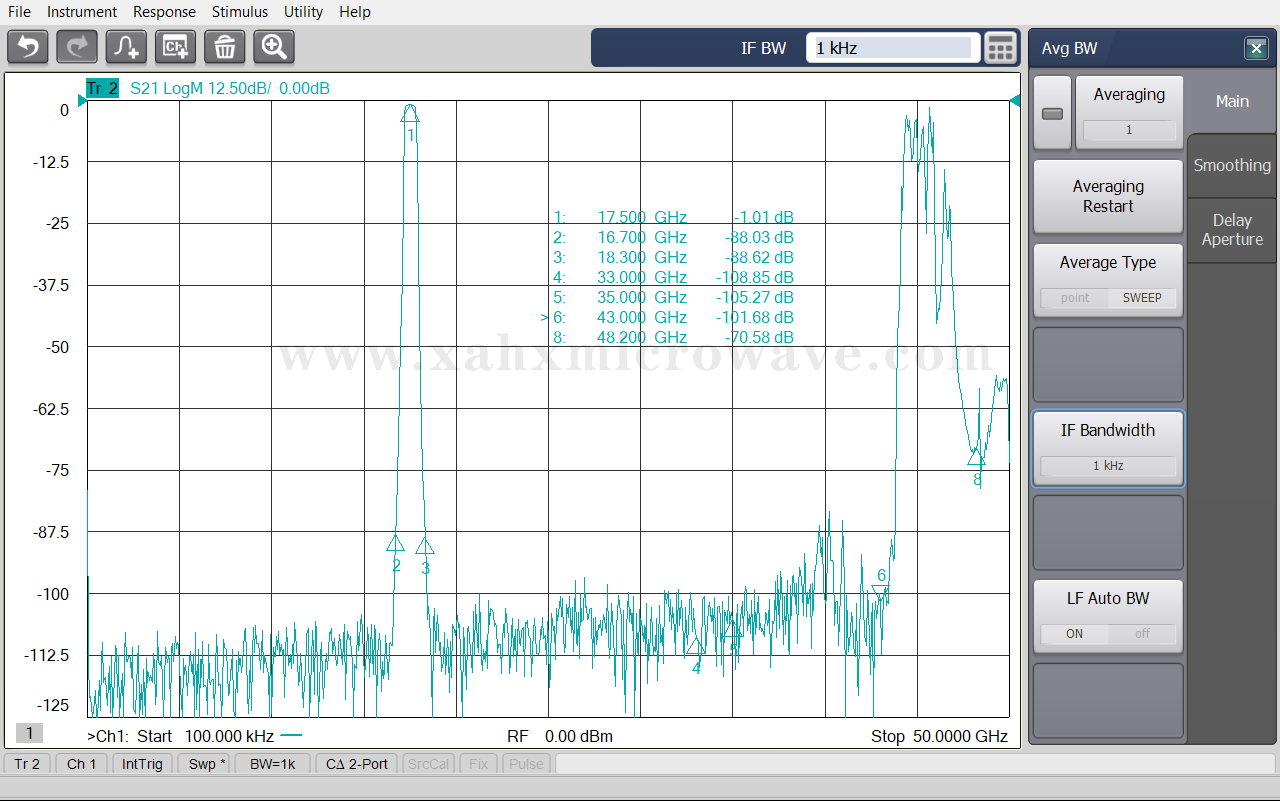

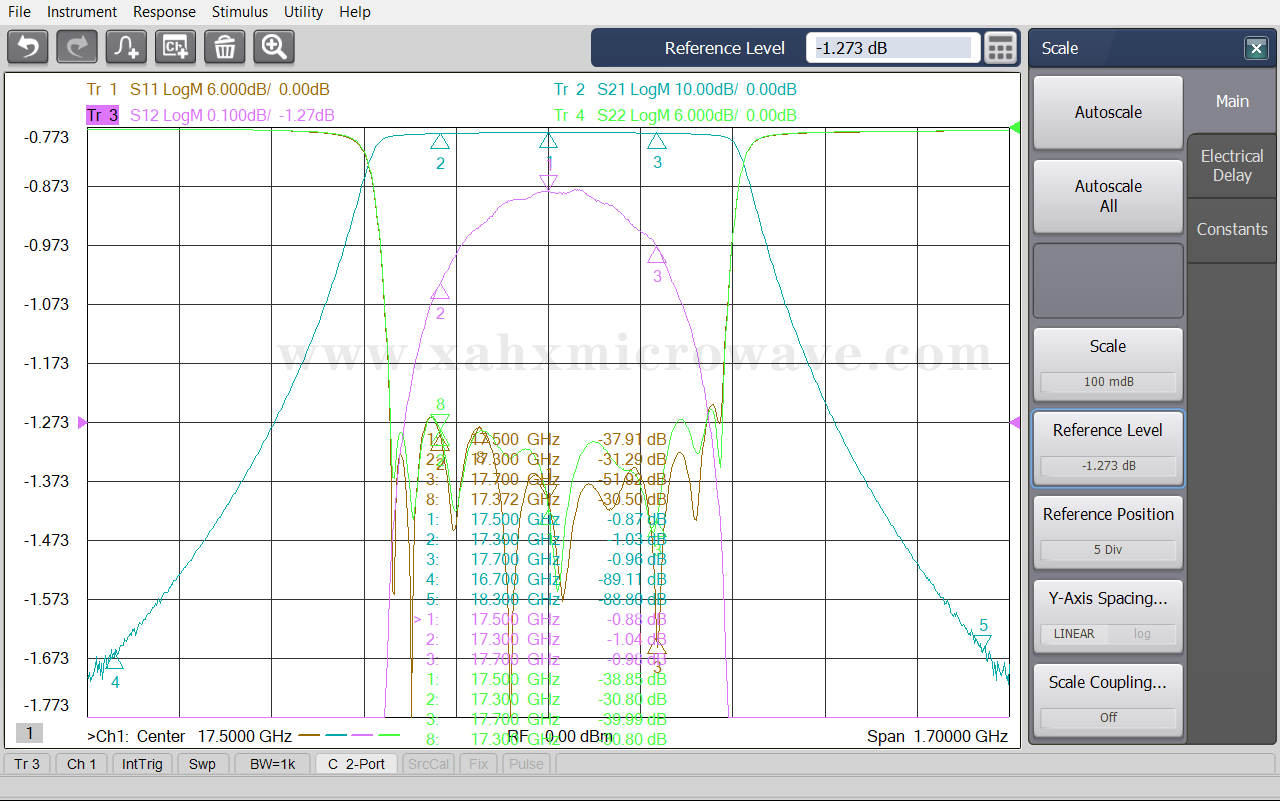

| Test Curve | |||
