| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2000MHz | |
| ● | Pass Band Frequency | 1850 ~ 2150MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 1470MHz | ≥80dB @ 2450 ~ 7000MHz |
| ≥70dB @ 1470 ~ 1500MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

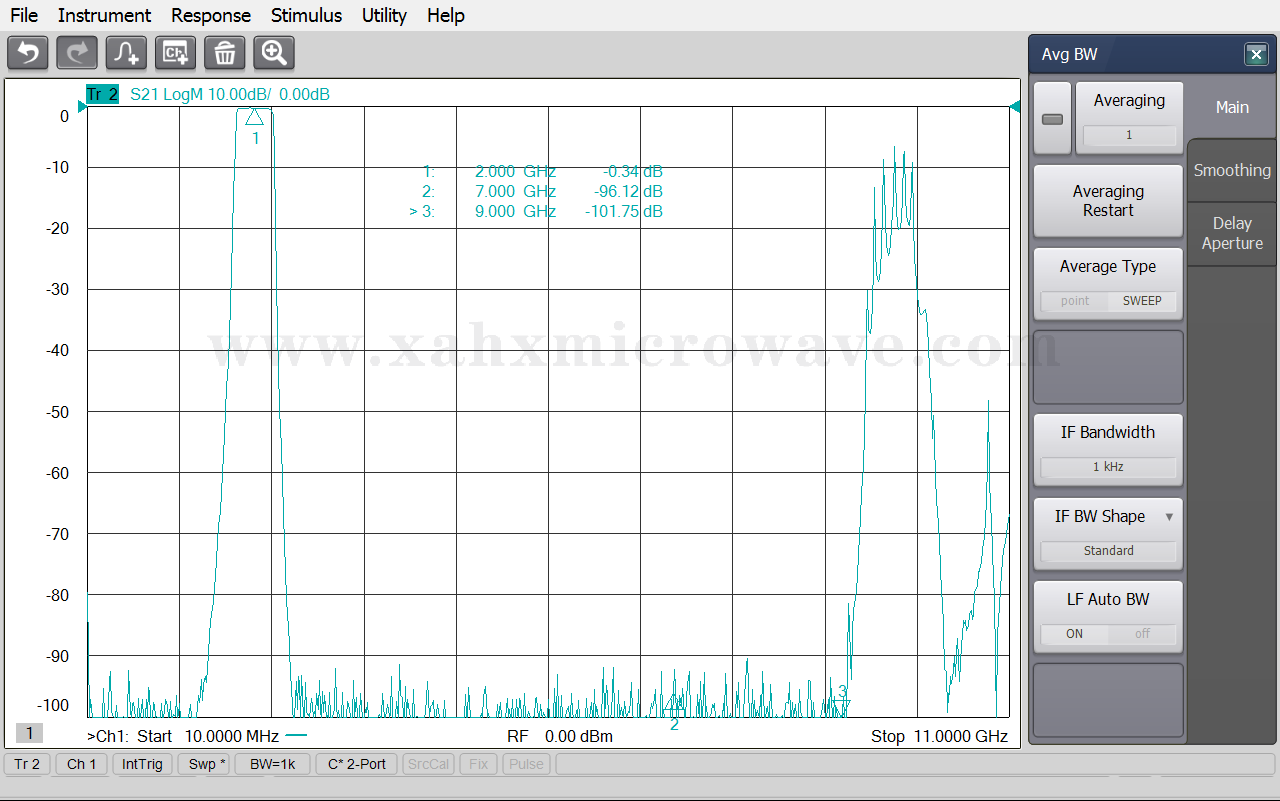

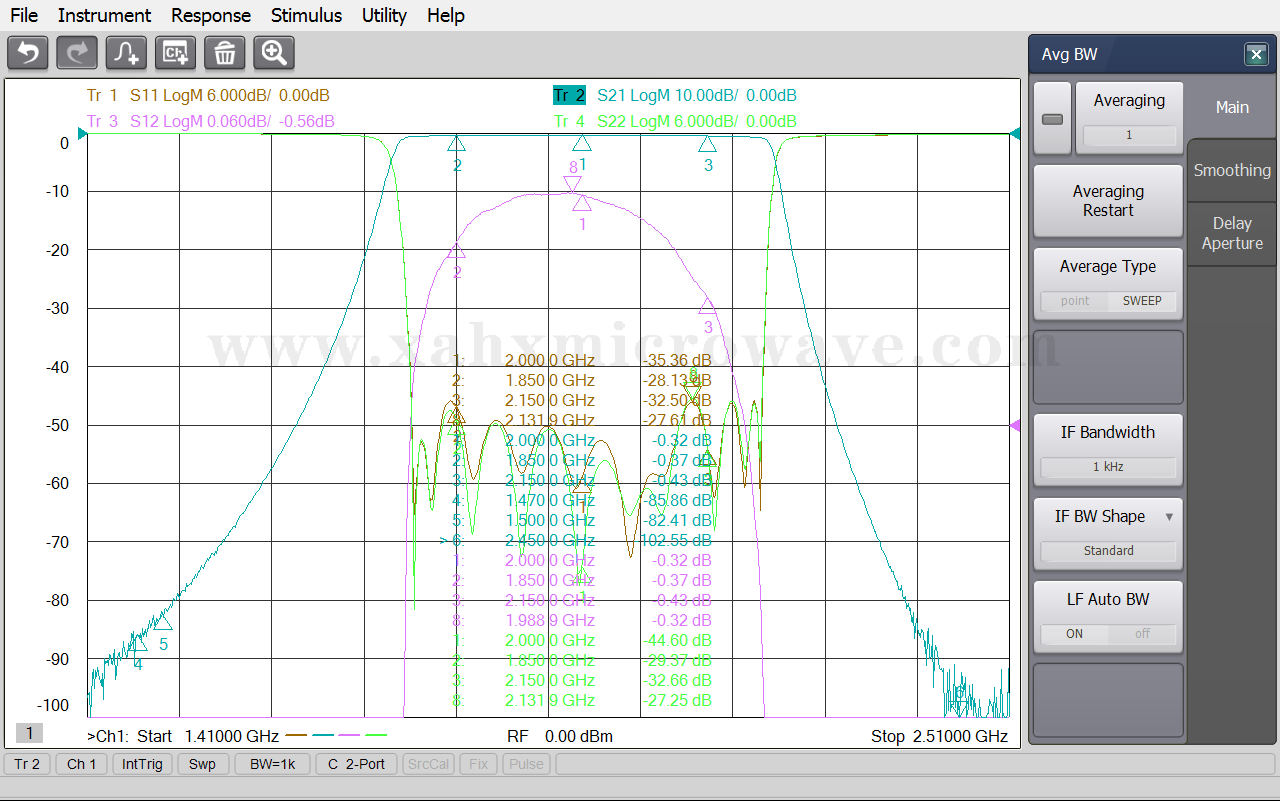

| Test Curve | |||
