| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3000MHz | |
| ● | Pass Band Frequency | 2700 ~ 3300MHz | |
| ● | Pass Band Insertion Loss | ≤0.7dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2050MHz | ≥40dB @ 3490 ~ 3700MHz |
| ≥40dB @ 2050 ~ 2430MHz | ≥80dB @ 3700 ~ 8000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

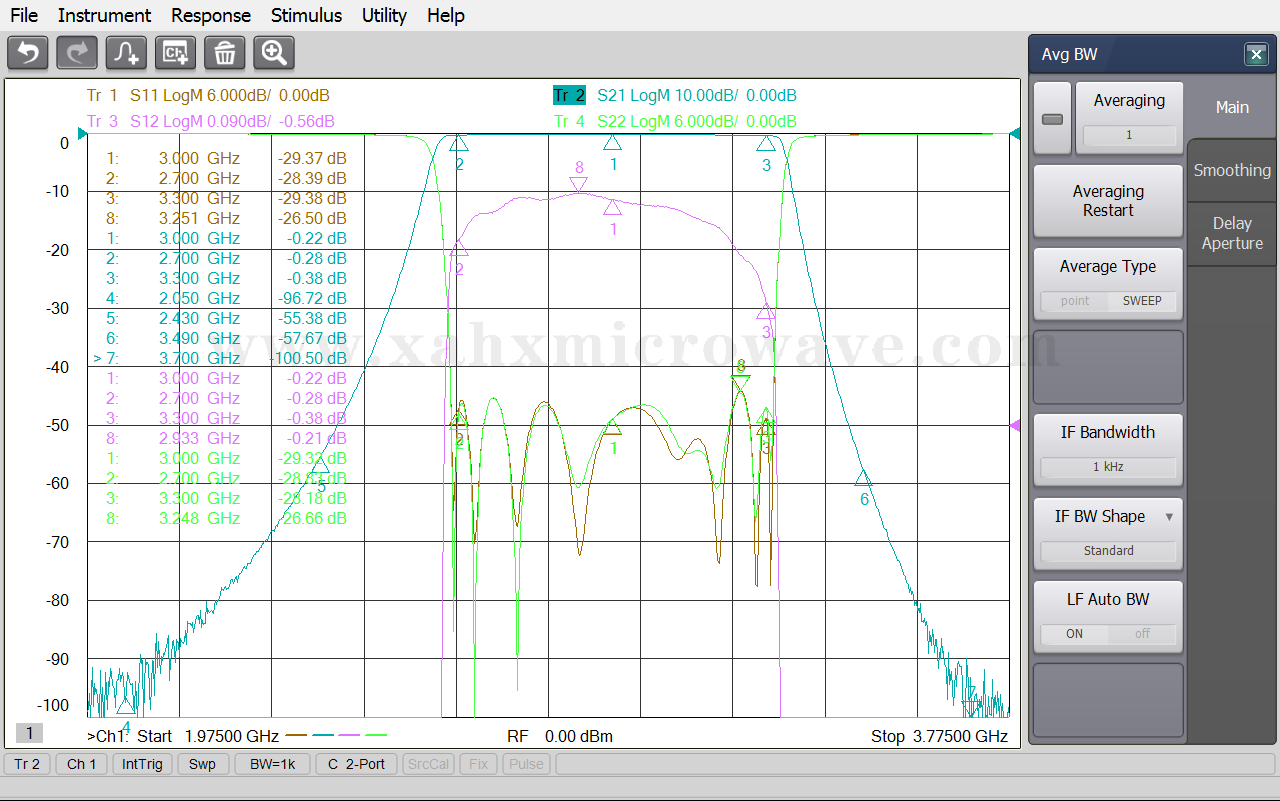

| Test Curve | |||
