| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2450MHz | |
| ● | Pass Band Frequency | 2430 ~ 2470MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 2400MHz | ≥40dB @ 2500 ~ 5000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 200W Max. | |
| ● | Connectors | N-Male / N-Female | |
| ● | Surface Finish | Painted Black | |

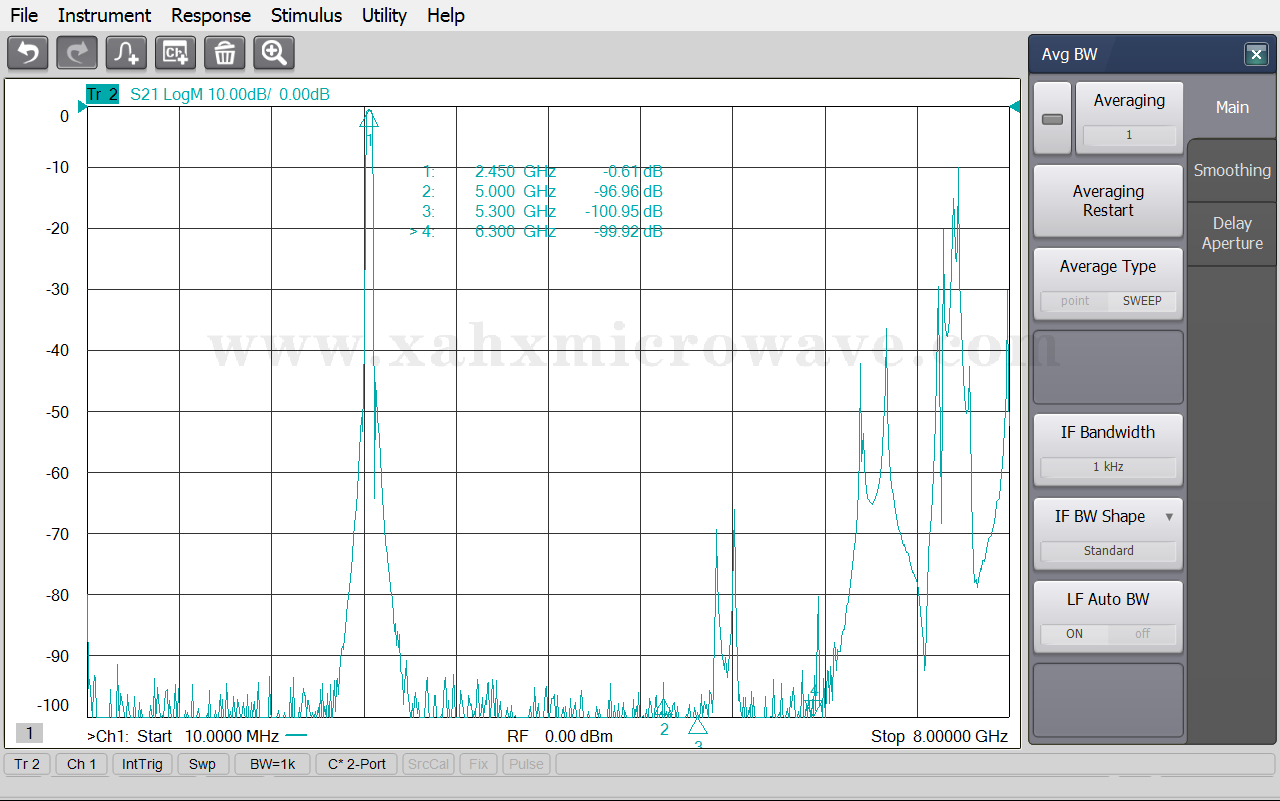

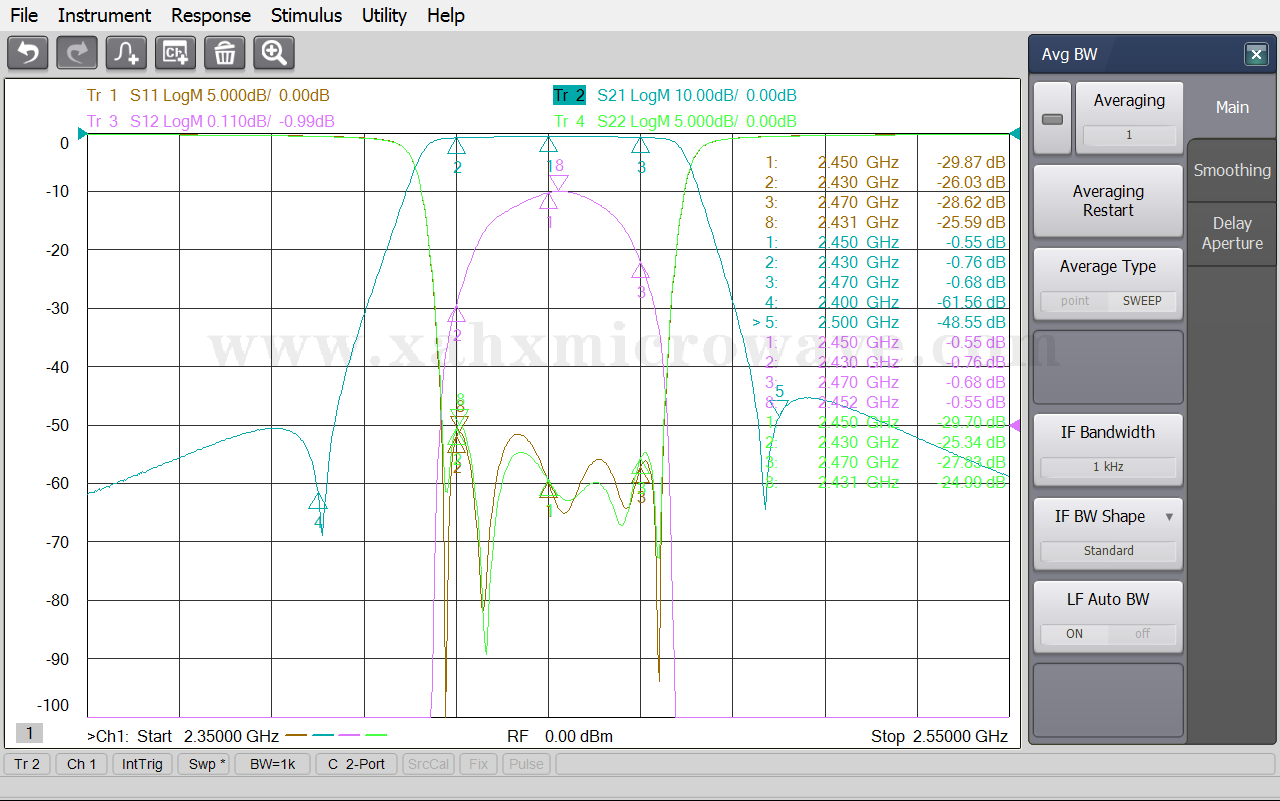

| Test Curve | |||
