| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 10900MHz | |
| ● | Pass Band Frequency | 7500 ~ 14300MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.7dB | |
| ● | Pass Band Return Loss | ≥18dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 6000MHz | ≥80dB @ 15000 ~ 18000MHz |
| ≥60dB @ 6000 ~ 6500MHz | |||
| ≥40dB @ 6500 ~ 6900MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

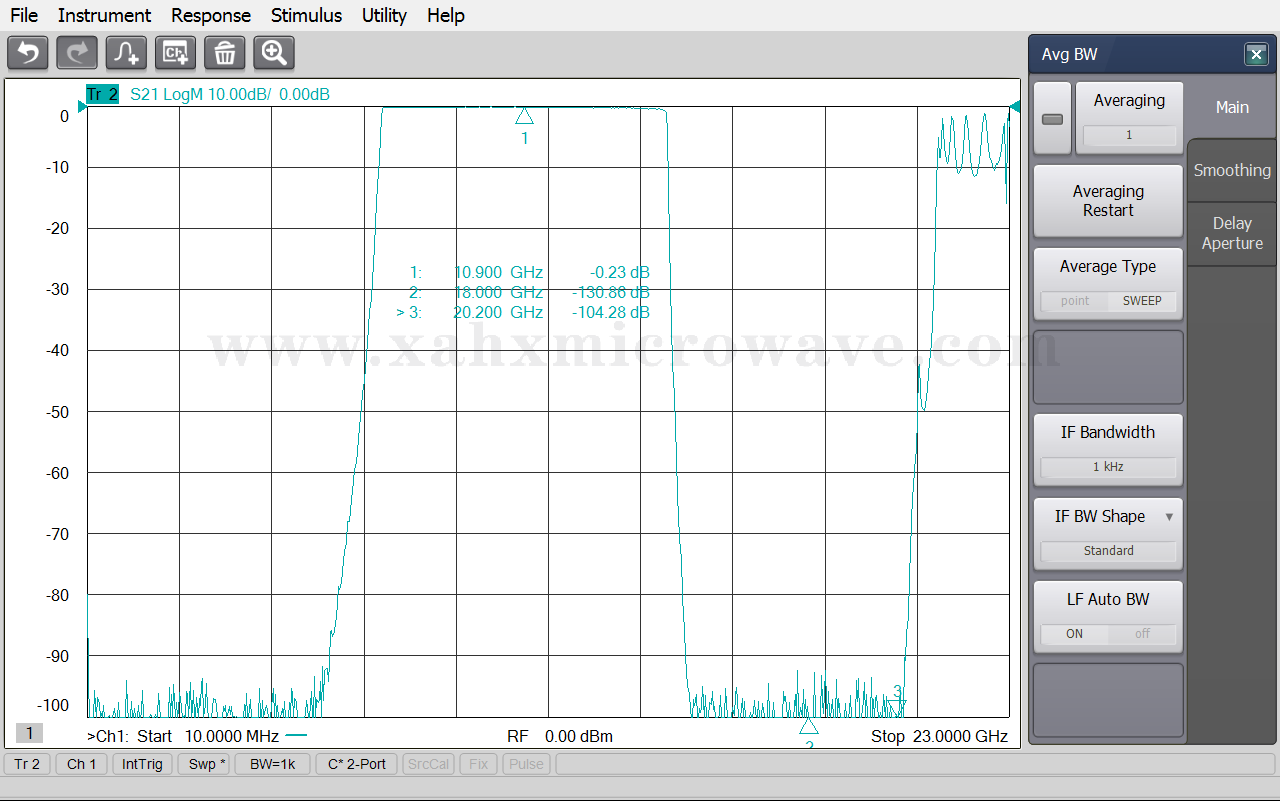

| Test Curve | |||
