| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 8000MHz | |
| ● | Pass Band Frequency | 7750 ~ 8250MHz | |
| ● | Pass Band Insertion Loss | ≤1.3dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 7350MHz | ≥80dB @ 8600 ~ 23000MHz |
| ≥70dB @ 7350 ~ 7400MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

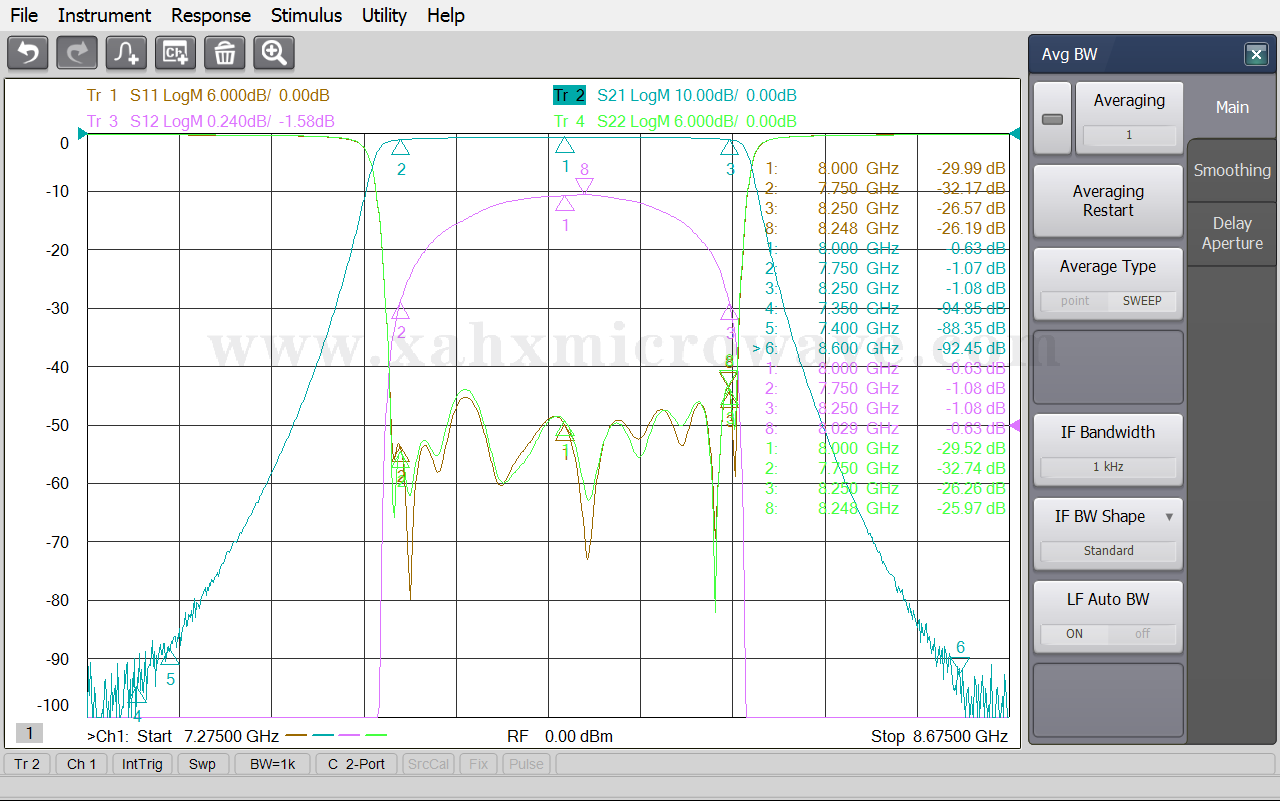

| Test Curve | |||
