Band Pass Filter

  • 2.9-3.1GHz Cavity Band Pass Filter

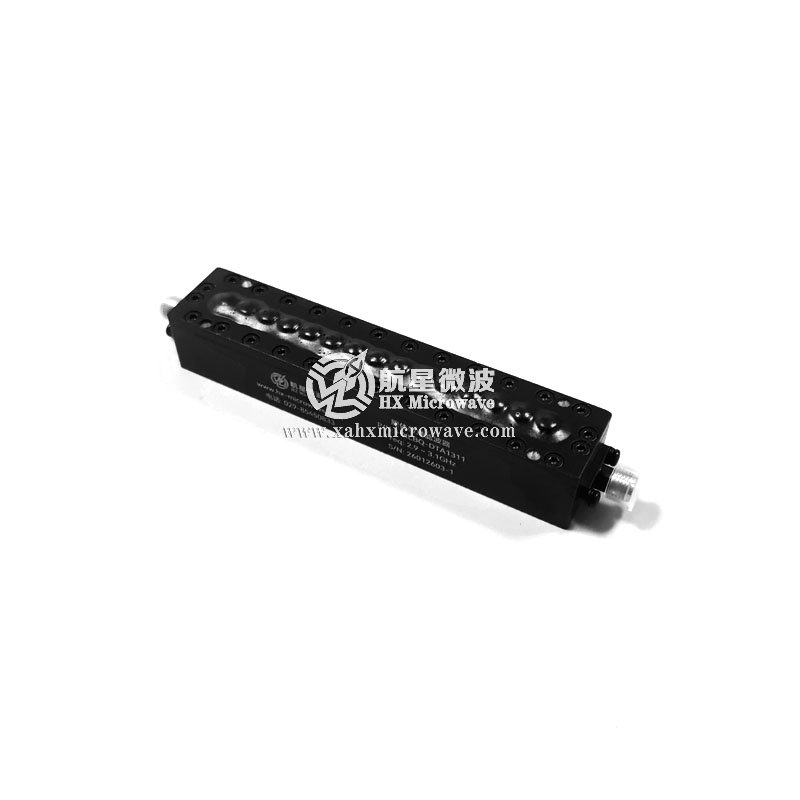

2.9-3.1GHz Cavity Band Pass Filter

2.9-3.1GHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA1311
  • Pass Band Frequency：2.9-3.1GHz
  • Stop Band Rejection：≥80dB
  • Connectors：SMA-Female
  • Product description:
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 3.0GHz
● Pass Band Frequency 2.9 ~ 3.1GHz
● Pass Band Insertion Loss ≤0.95dB
● Pass Band Ripple ≤0.35dB
● Pass Band Return Loss ≥23dB
● Stop Band Rejection ≥80dB @ DC ~ 2.63GHz ≥70dB @ 3.3 ~ 3.35GHz
≥65dB @ 2.63 ~ 2.7GHz ≥80dB @ 3.35 ~ 12GHz
● Impedance 50 Ohms
● Power 10W Max.
● Connectors SMA-Female
● Surface Finish Painted Black

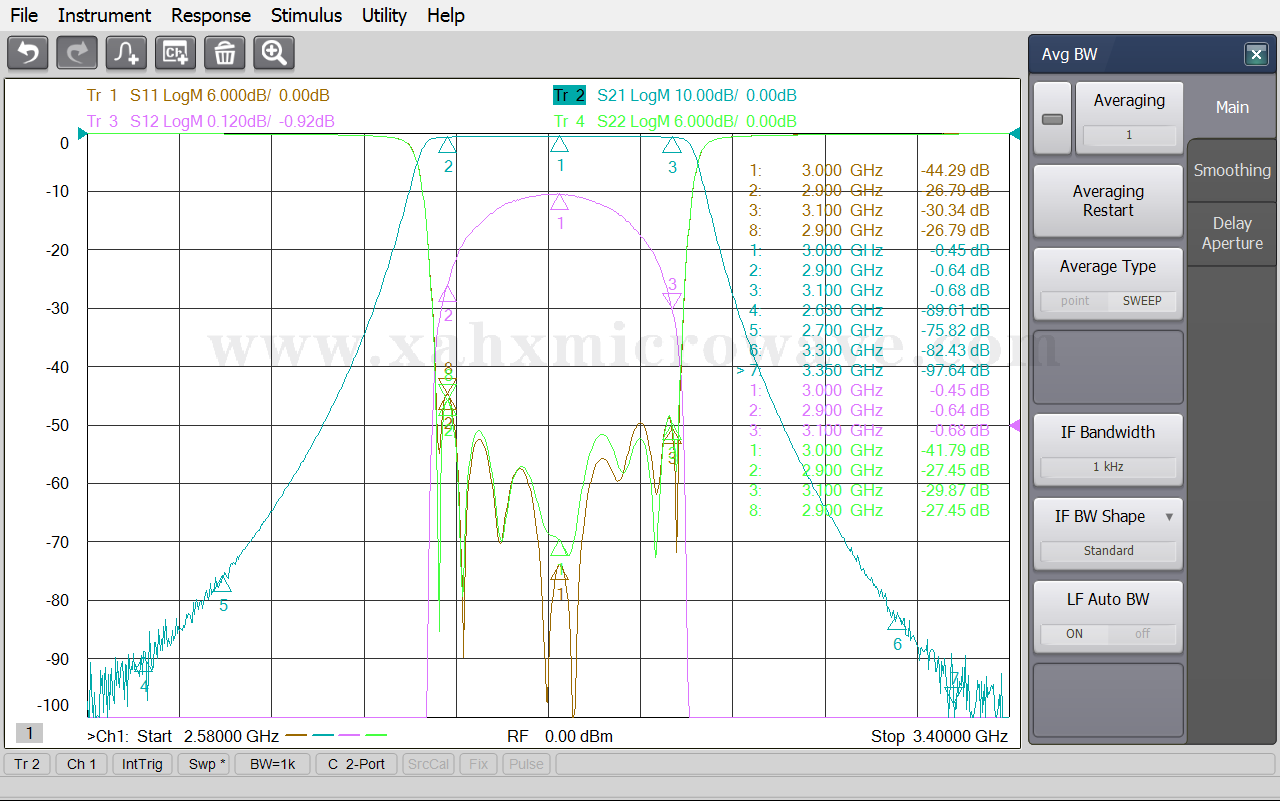

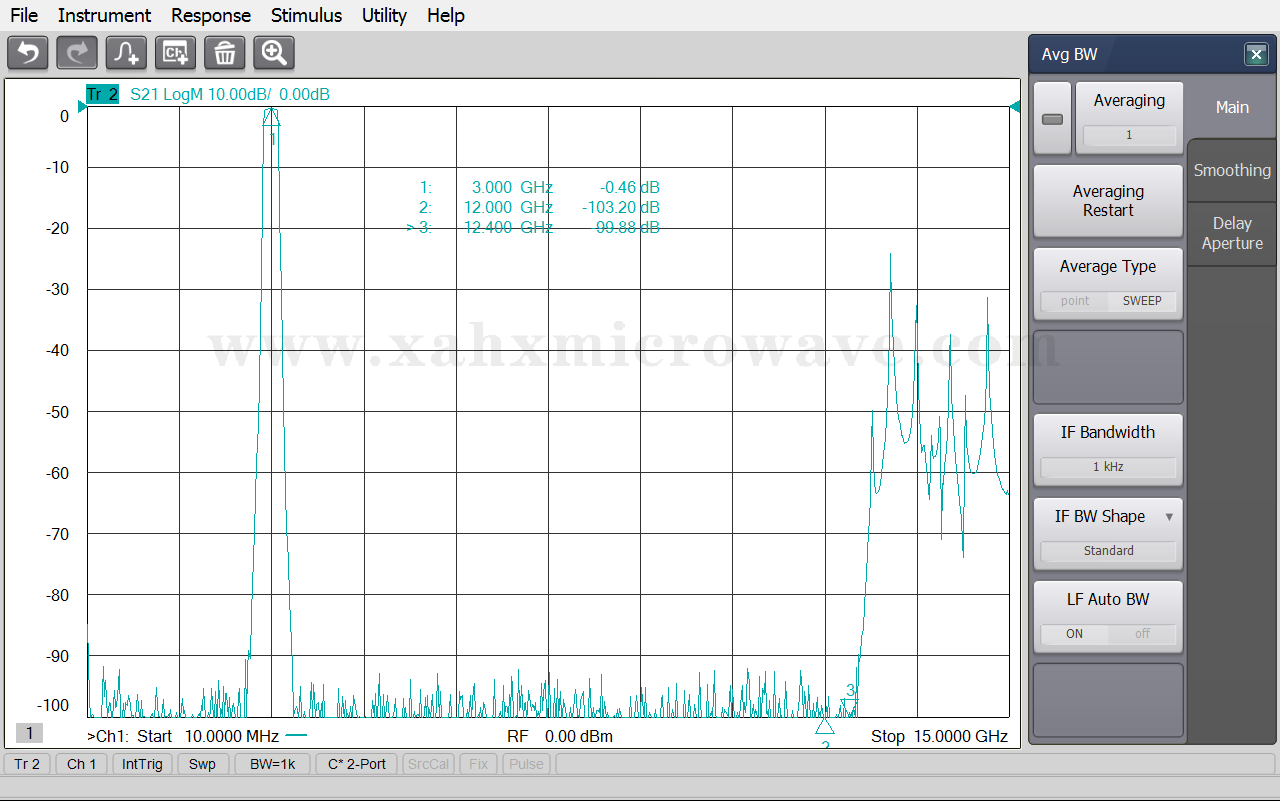

Test Curve
