Band Pass Filter

  • 6824-6844MHz Band Pass Filter

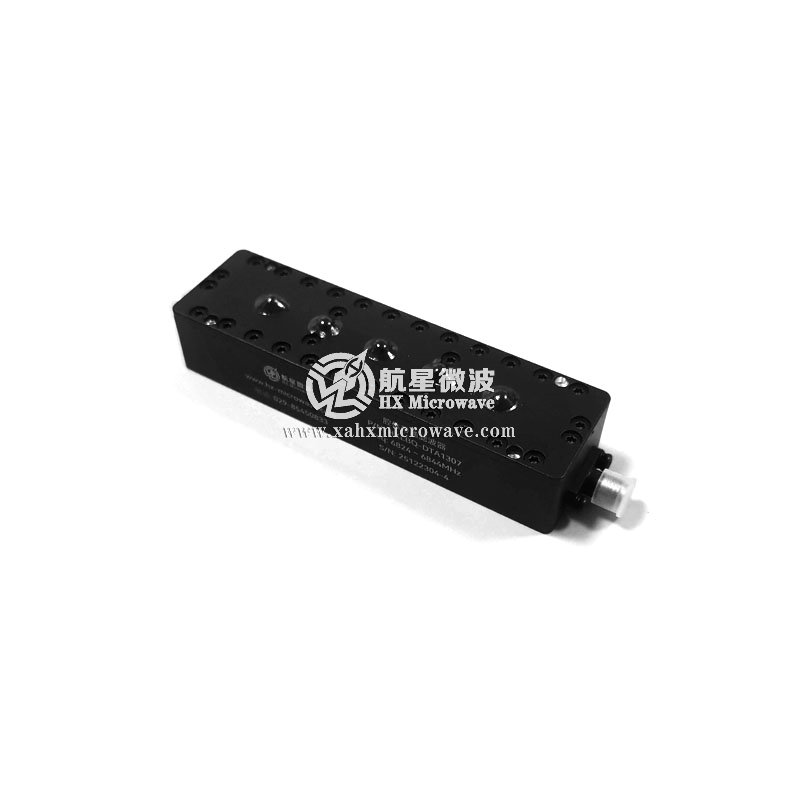

6824-6844MHz Band Pass Filter

6824-6844MHz Band Pass Filter

  • P/N：HXLBQ-DTA1307
  • Pass Band Frequency：6824-6844MHz
  • Stop Band Rejection：≥40dB
  • Connectors：SMA-Female
  • Product description:
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 6834MHz
● 3dB Bandwidth 20MHz Max. (6824 ~ 6844MHz Max.)
● Insertion Loss @ F0 ≤2.0dB @ 6834MHz
● Return Loss @ F0 ≥18dB @ 6834MHz
● Stop Band Rejection ≥40dB @ DC ~ 6774MHz ≥40dB @ 6894 ~ 12000MHz
● Impedance 50 Ohms
● Power 5.0W Max.
● Connectors SMA-Female
● Surface Finish Painted Black

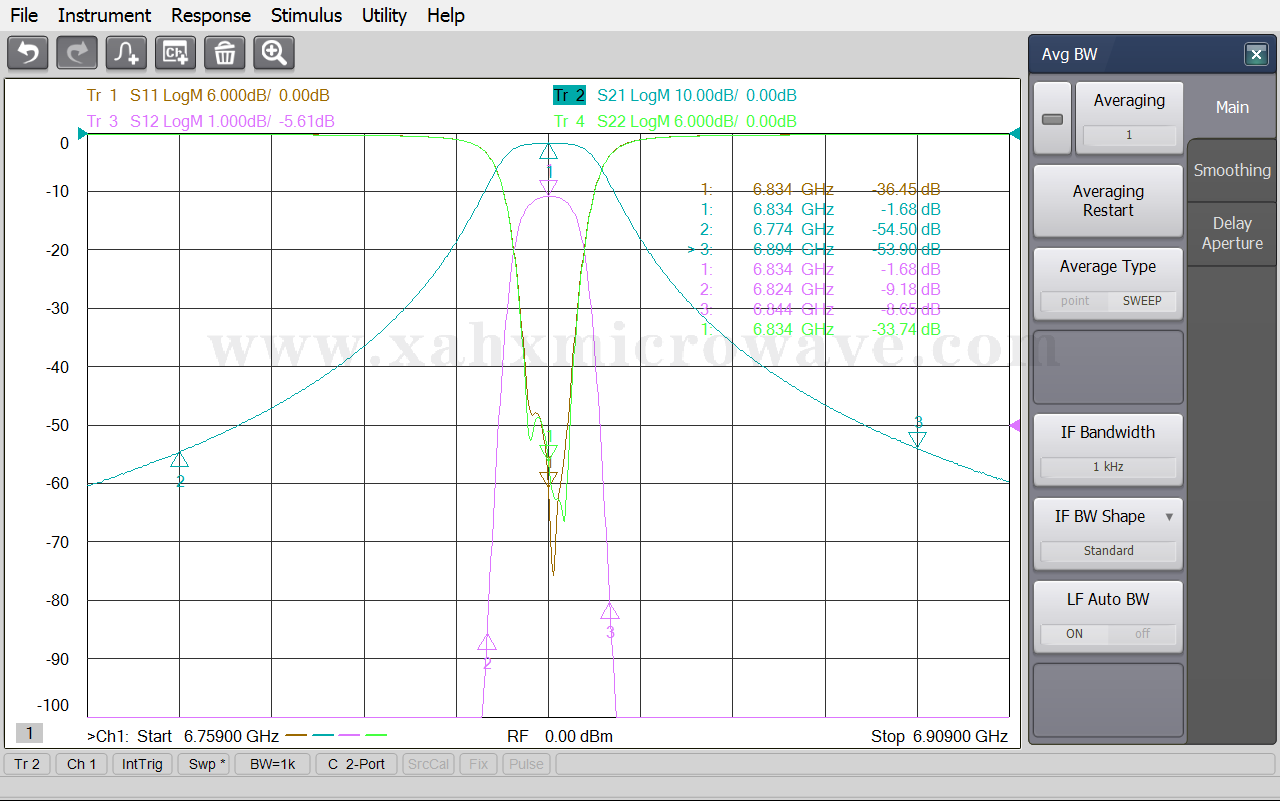

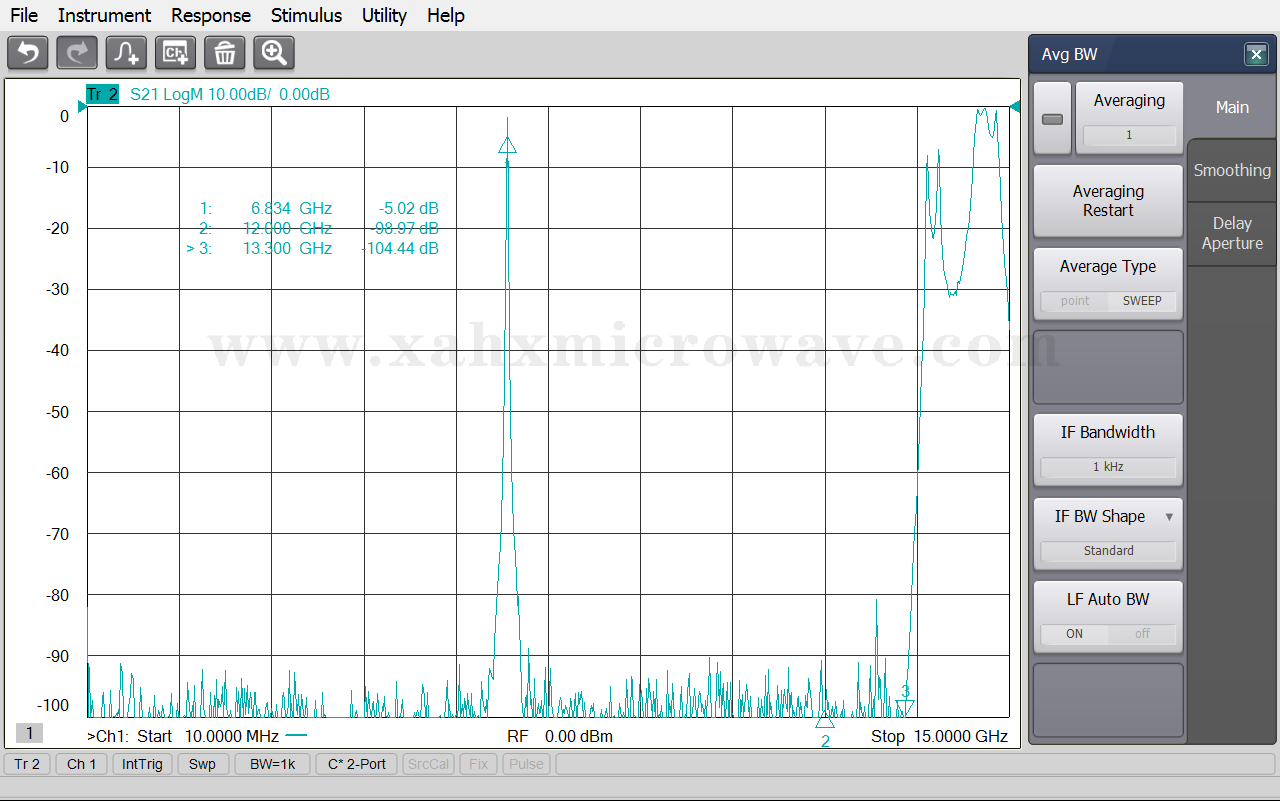

Test Curve
