| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 460MHz | |
| ● | 3.0dB Bandwidth | 40MHz Min. (440 ~ 480MHz Min.) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 460MHz | |
| ● | Return Loss | ≥23dB @ 441 ~ 479MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 430MHz | ≥40dB @ 490 ~ 1100MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

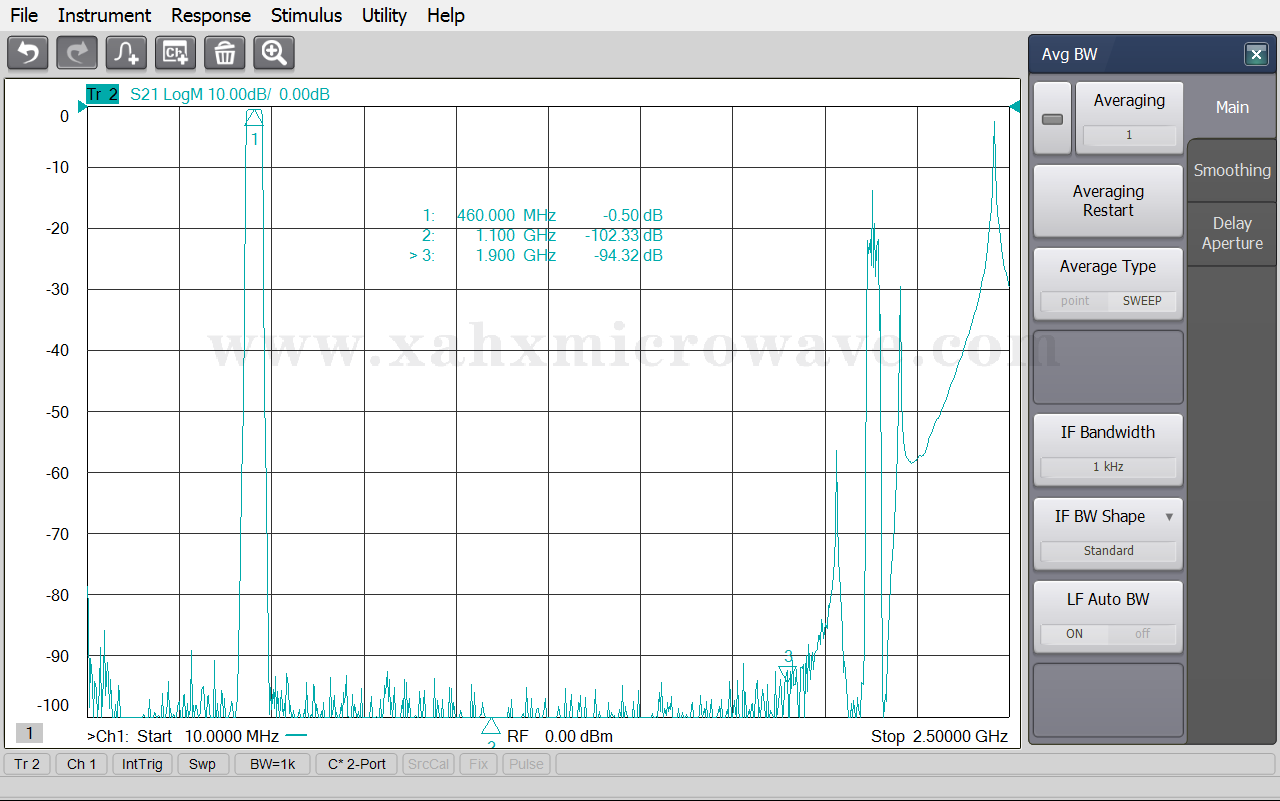

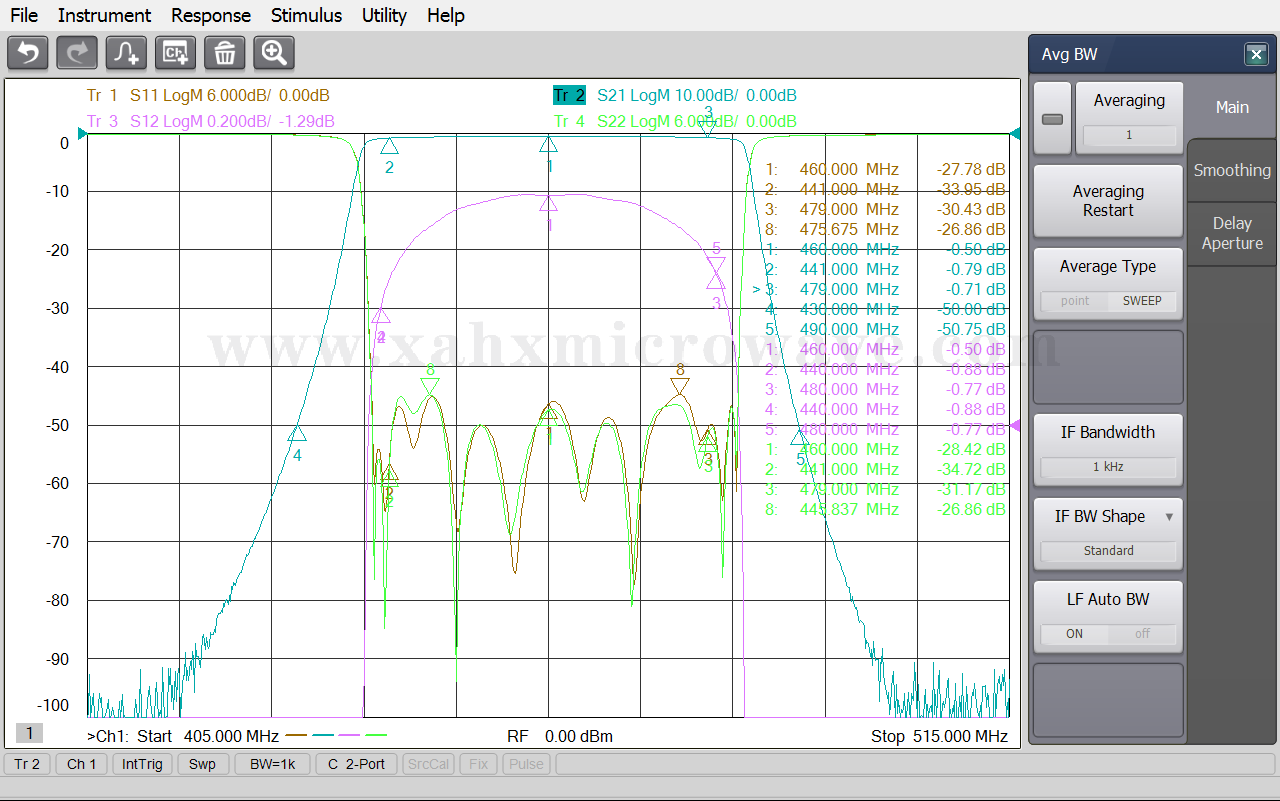

| Test Curve | |||
