| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 7000MHz | |
| ● | Pass Band Frequency | 6000 ~ 8000MHz | |
| ● | Pass Band Insertion Loss | ≤0.8dB | |
| ● | Pass Band Ripple | ≤0.37dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Attenuation | ≥80dB @ DC ~ 5300MHz | ≥63dB @ 8450 ~ 8600MHz |
| ≥63dB @ 5300 ~ 5500MHz | ≥80dB @ 8600 ~ 26000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

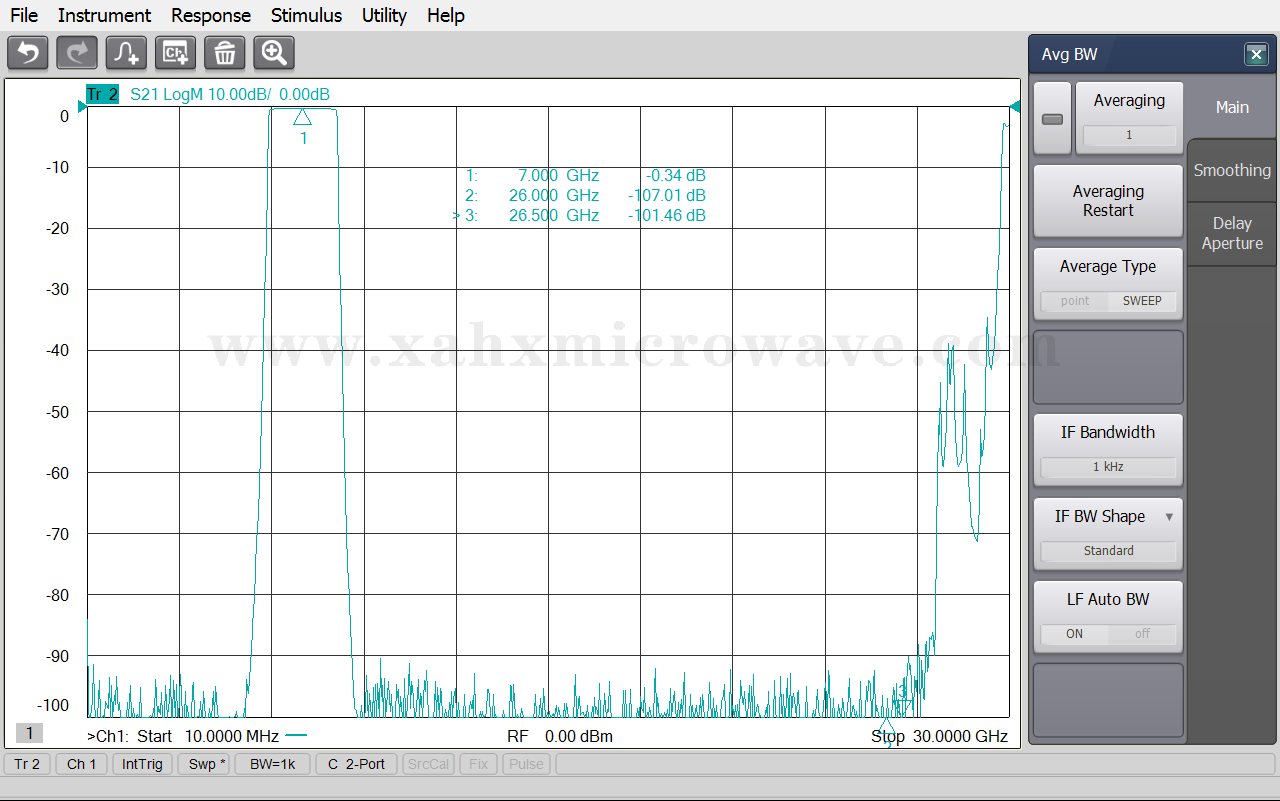

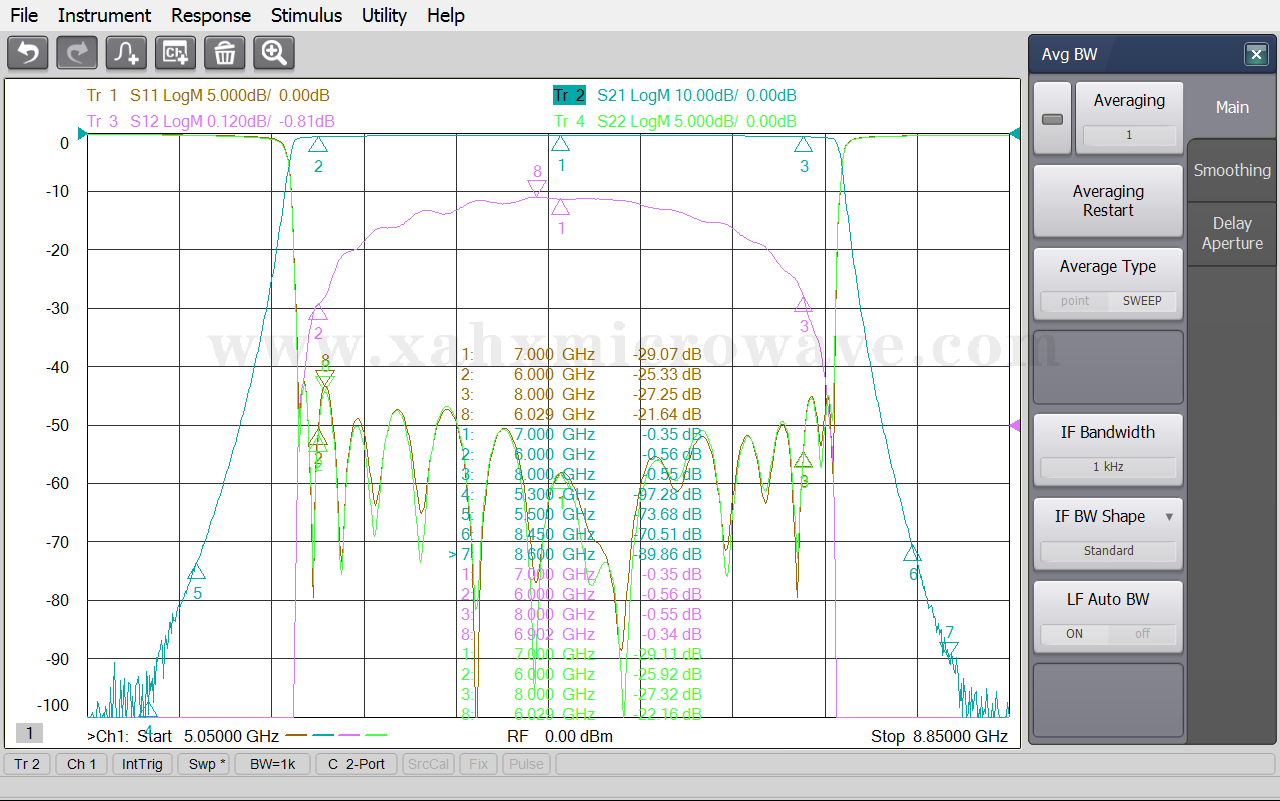

| Test Curve | |||
