| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5900MHz | |
| ● | Pass Band Frequency | 5800 ~ 6000MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥22dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 5350MHz | ≥50dB @ 6200 ~ 6450MHz |
| ≥50dB @ 5350 ~ 5600MHz | ≥80dB @ 6450 ~ 19000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

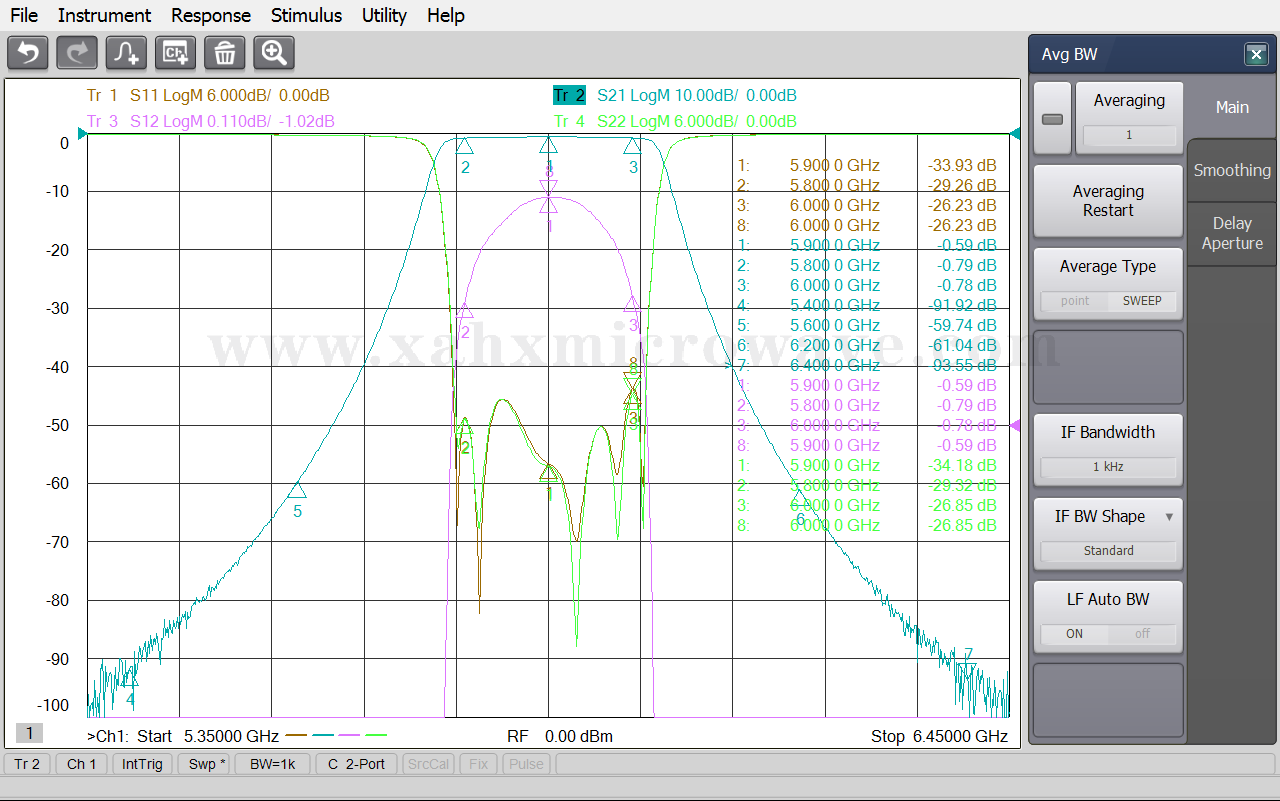

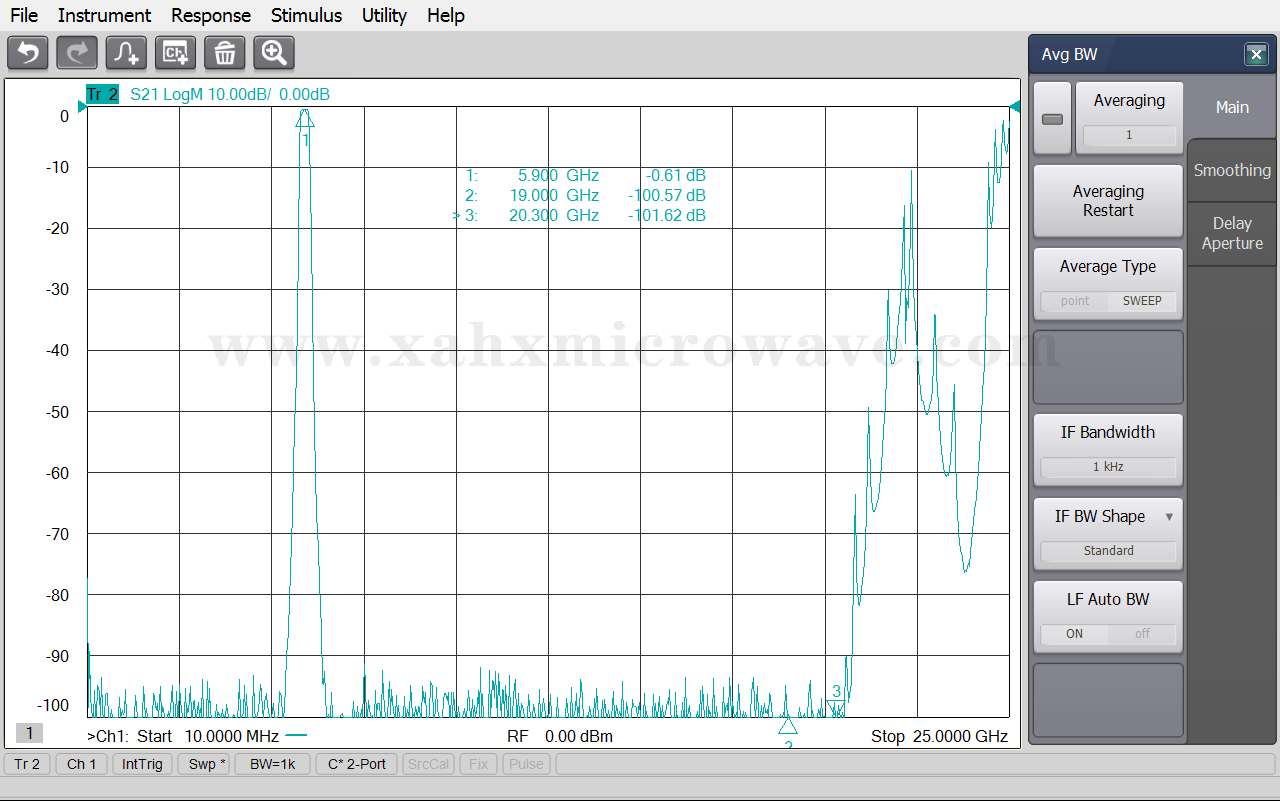

| Test Curve | |||
