| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1640MHz | |
| ● | Pass Band Frequency | 1620 ~ 1660MHz | |
| ● | Pass Band Insertion Loss | ≤1.3dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 1580MHz | ≥50dB @ 1700 ~ 4000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 50W CW | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |

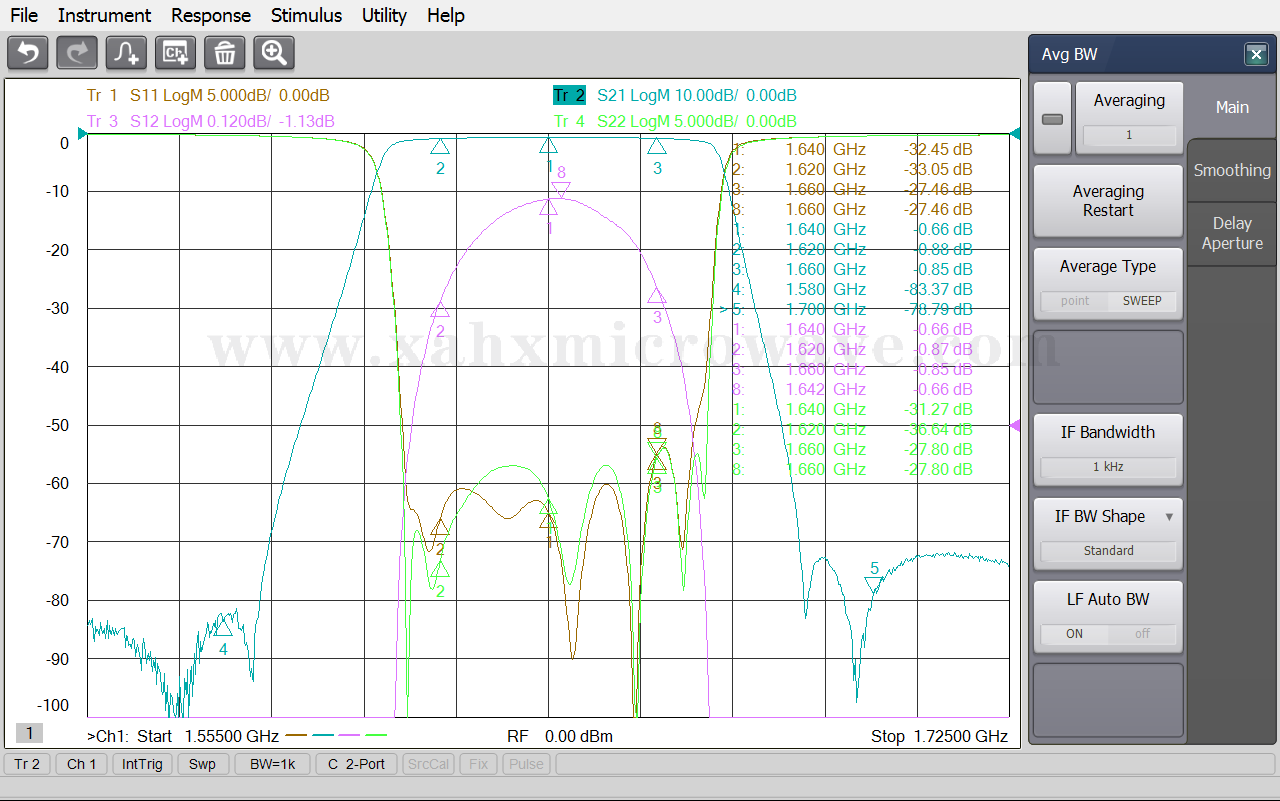

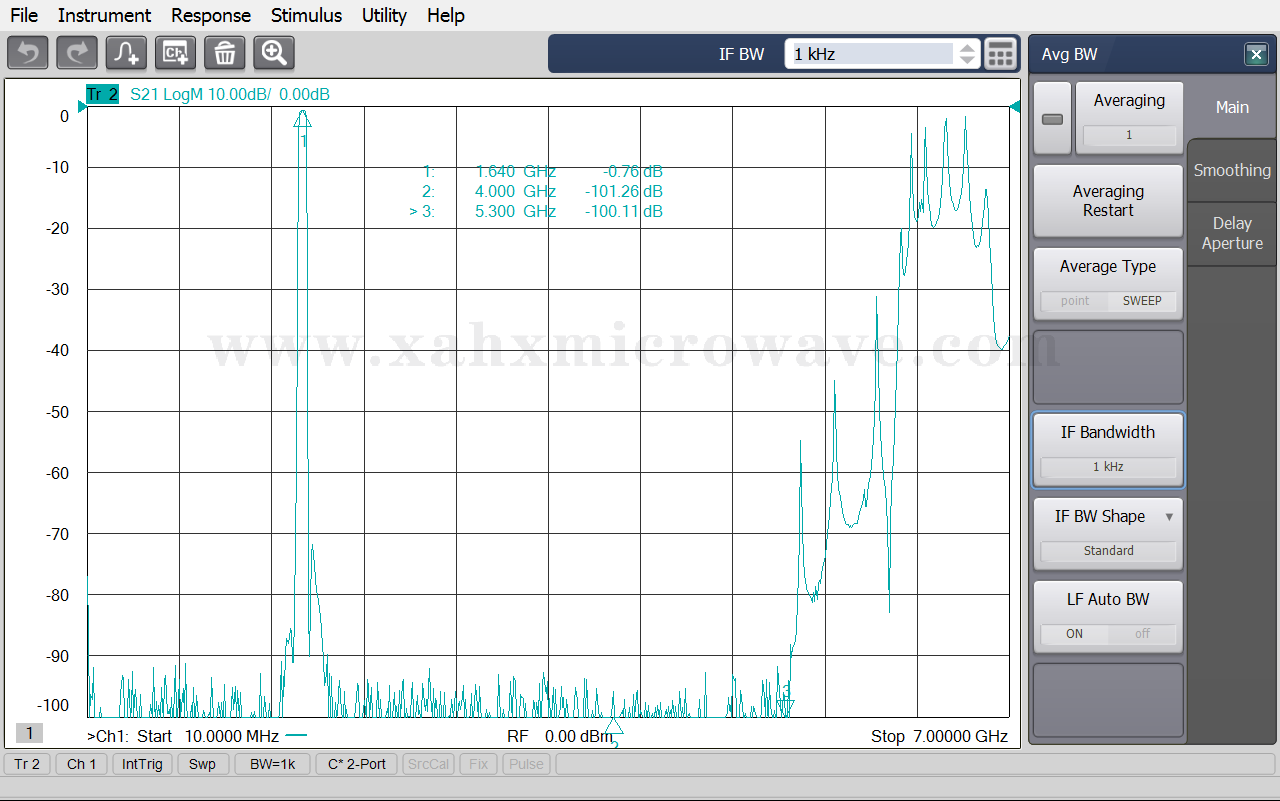

| Test Curve | |||
