  • 10.7-12.7GHz Cavity Band Pass Filter

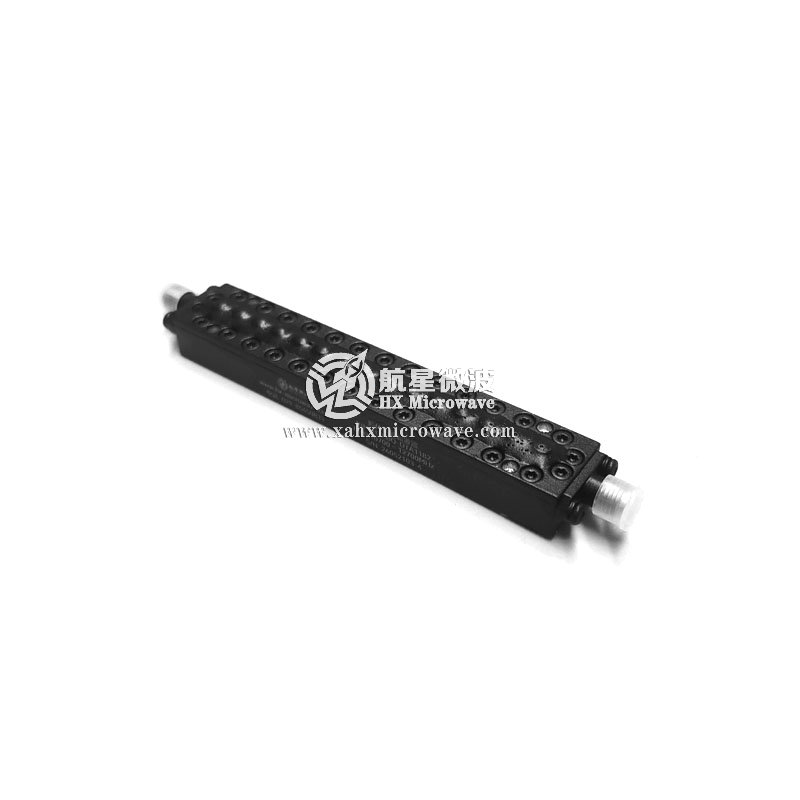

10.7-12.7GHz Cavity Band Pass Filter

10.7-12.7GHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA1182
  • Pass Band Frequency：10.7-12.7GHz
  • Stop Band Rejection：≥80dB
  • Connectors：SMA-Female
  • Product description:
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 11700MHz
● Pass Band Frequency 10700 ~ 12700MHz
● Pass Band Insertion Loss ≤1.0dB
● Pass Band Ripple ≤0.6dB
● Pass Band Return Loss ≥23dB
● Stop Band Rejection ≥80dB @ DC ~ 9900MHz ≥50dB @ 13400 ~ 13650MHz
≥50dB @ 9900 ~ 10300MHz ≥80dB @ 13650 ~ 27000MHz
● Impedance 50 Ohms
● Power Handling 10W Max.
● Connectors SMA-Female
● Surface Finish Painted Black

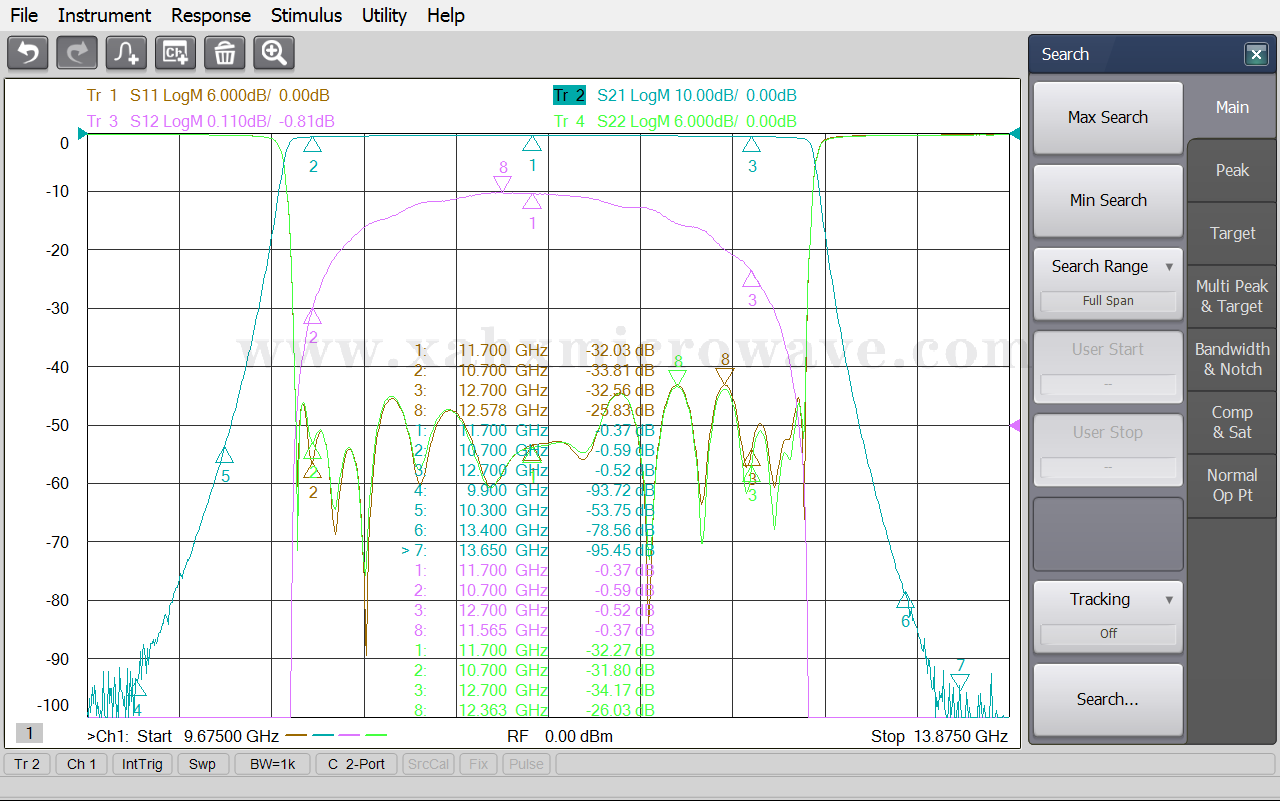

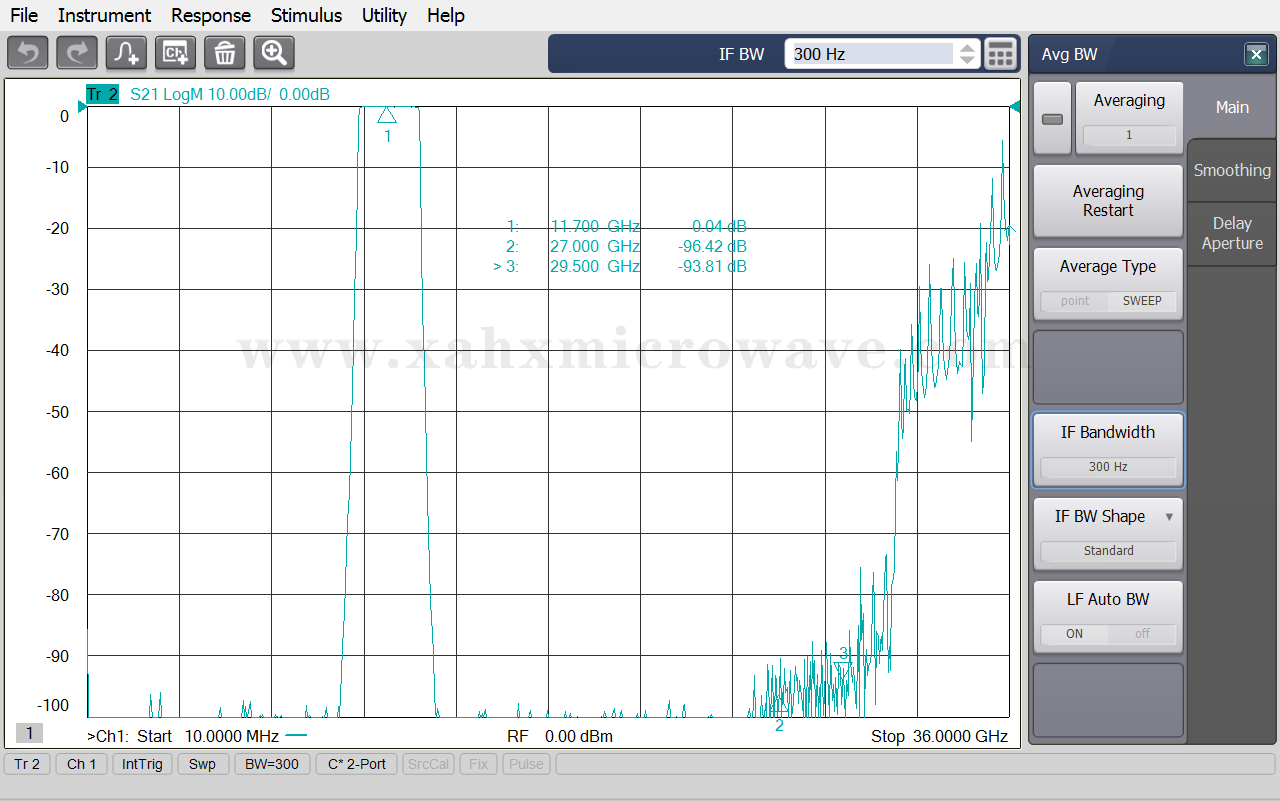

Test Curve
