| Technical Data Sheet | ||
| ● | Pass Band Frequency | DC ~ 500MHz |
| ● | Pass Band Insertion Loss | ≤0.8dB |
| ● | Pass Band VSWR | ≤1.4:1 |
| ● | Stop Band Attenuation | ≥60dB @ 800 ~ 1400MHz |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -30℃ ~ +70℃ |

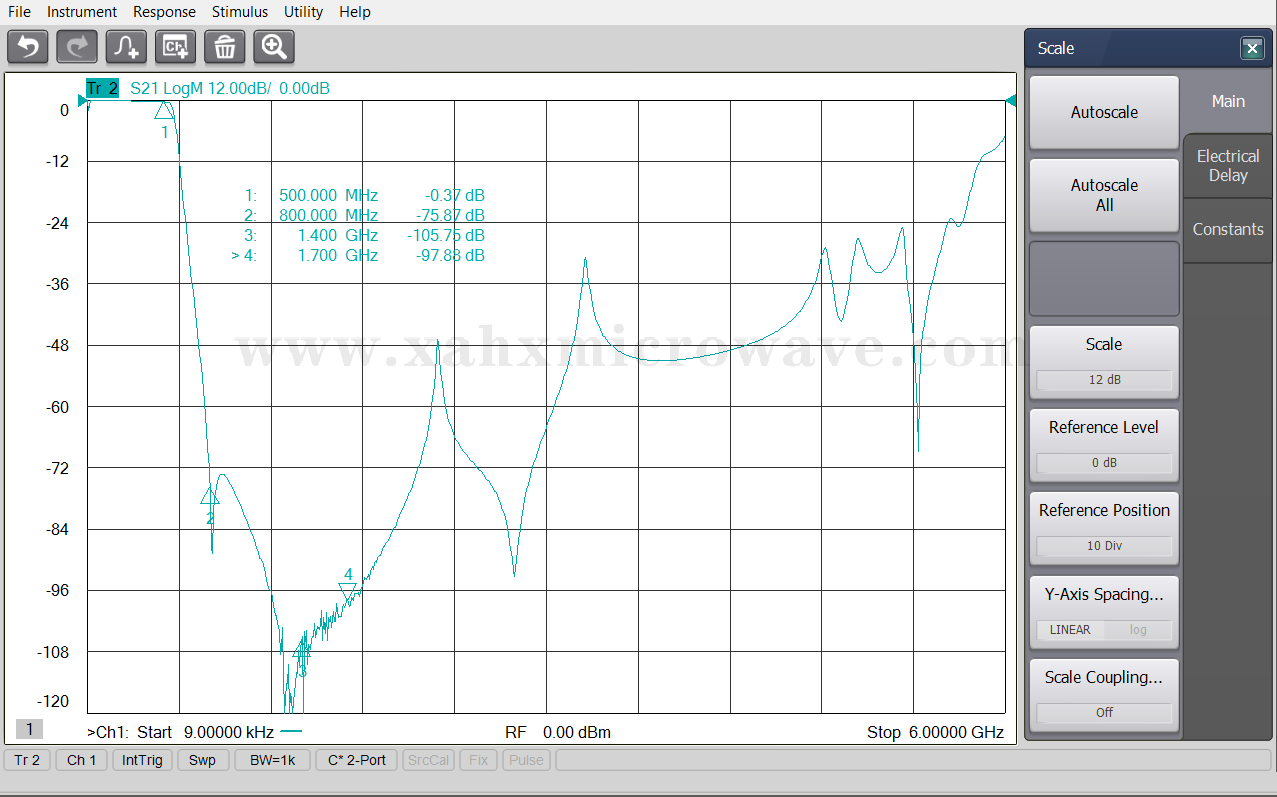

| Test Curve | ||
