| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5712MHz | |
| ● | Pass Band Frequency | 5711.5 ~ 5712.5MHz | |
| ● | Pass Band Insertion Loss | ≤5.0dB | |
| ● | Pass Band Ripple | ≤0.2dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥70dB @ DC ~ 5685.5MHz | ≥70dB @ 5738.5 ~ 14000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

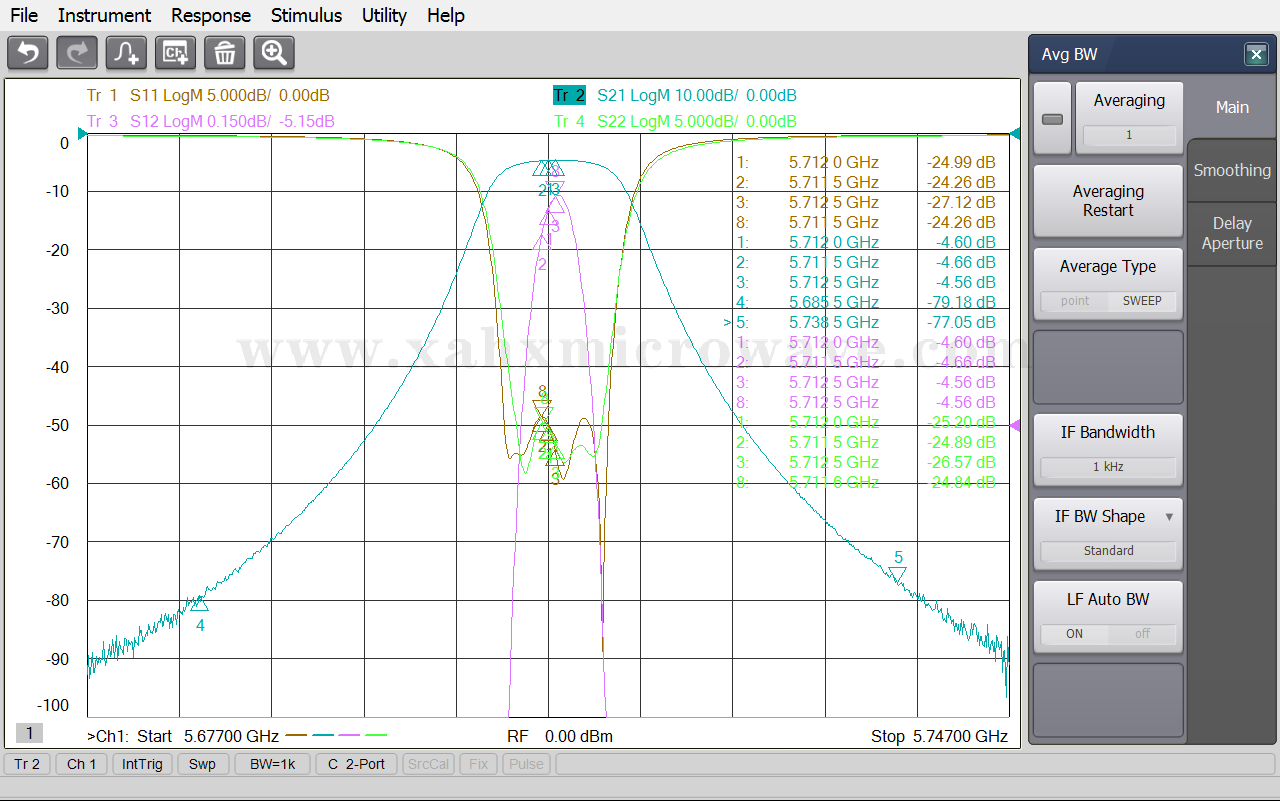

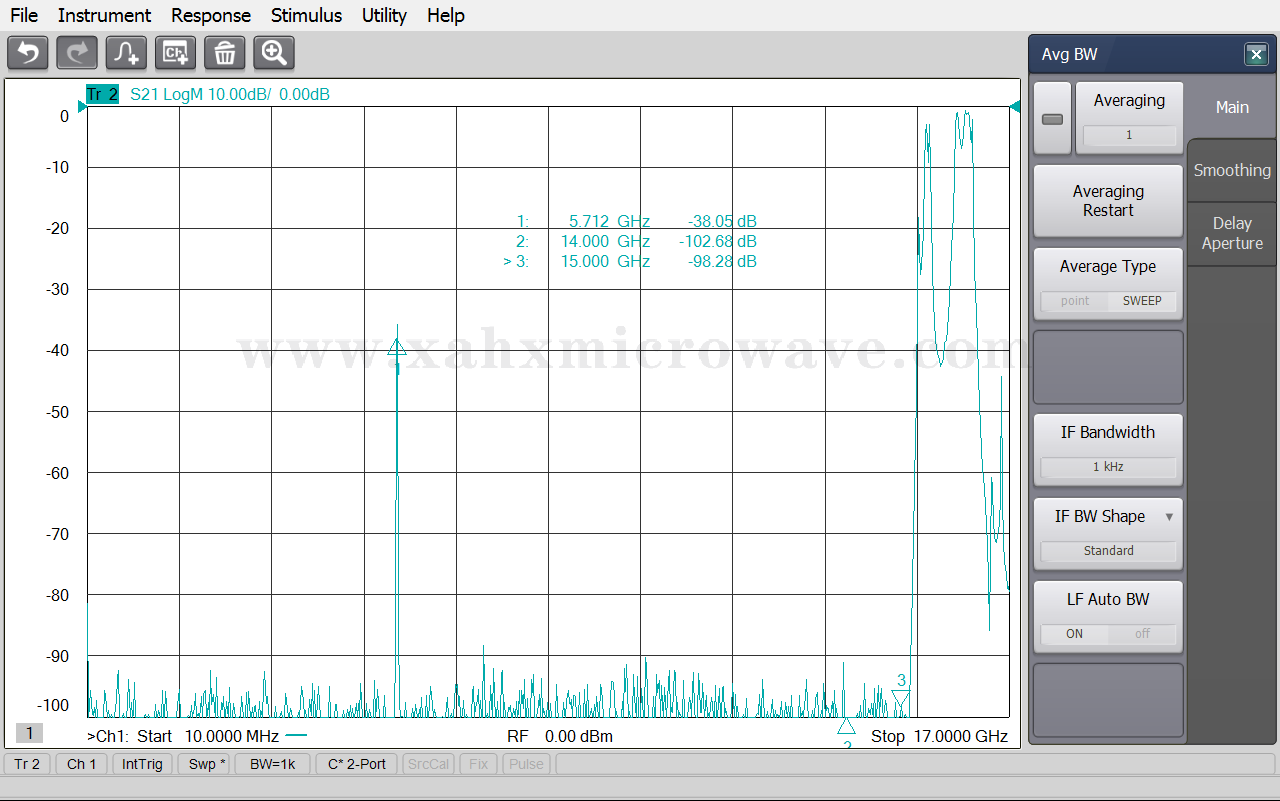

| Test Curve | |||
