Technical Data Sheet
P/N	Parameters	Band3(RX)	Band3(TX)	Band1(RX)	Band1(TX)
1	Frequency Range	1710~1785MHz	1805~1880MHz	1920~1980MHz	2110~2170MHz
2	Insertion Loss	≤1.5dB	≤1.5dB	≤1.3dB	≤1.3dB
3	Ports Isolation	≥80dB
4	VSWR	≤1.5:1
5	Power Handling	50W
6	Connectors	SMA-Female
7	Ports Impedance	50 Ohms
8	Temperature	-10℃~+60℃
9	Surface Finish	Painted Black

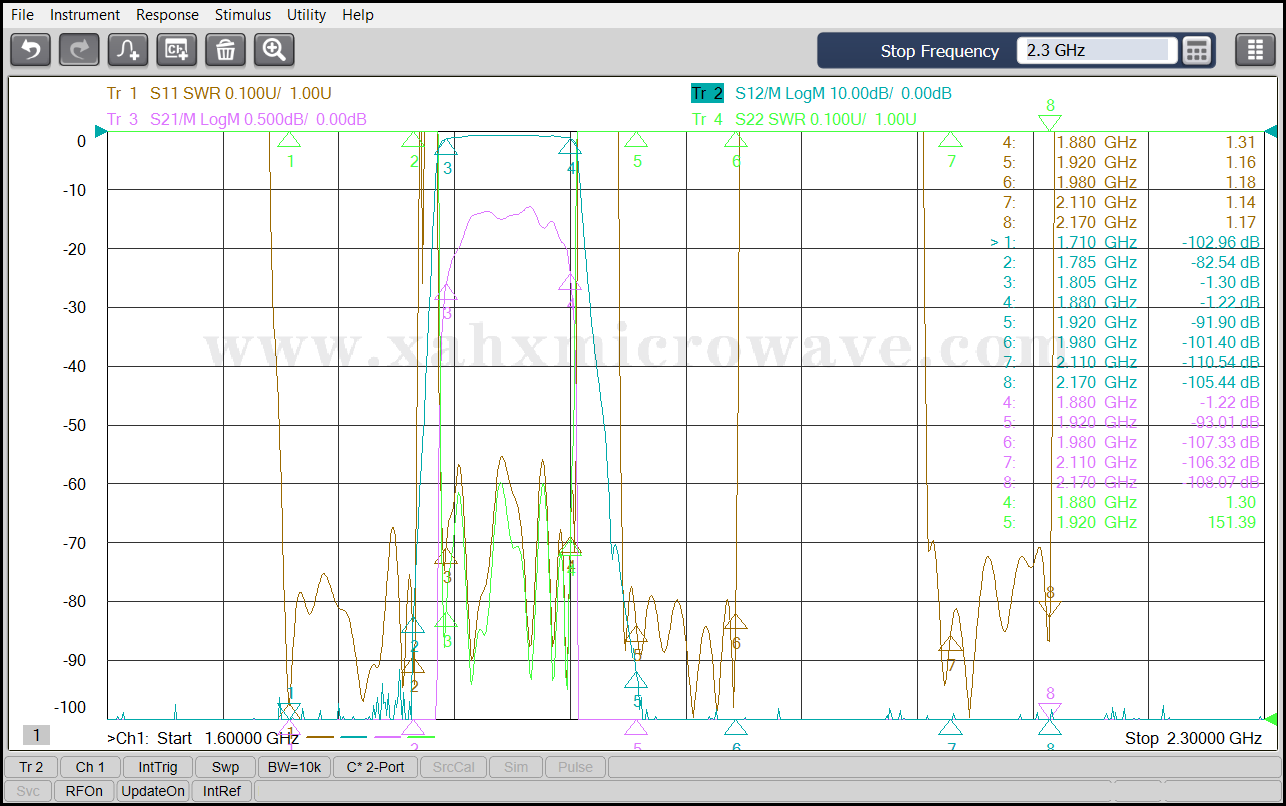

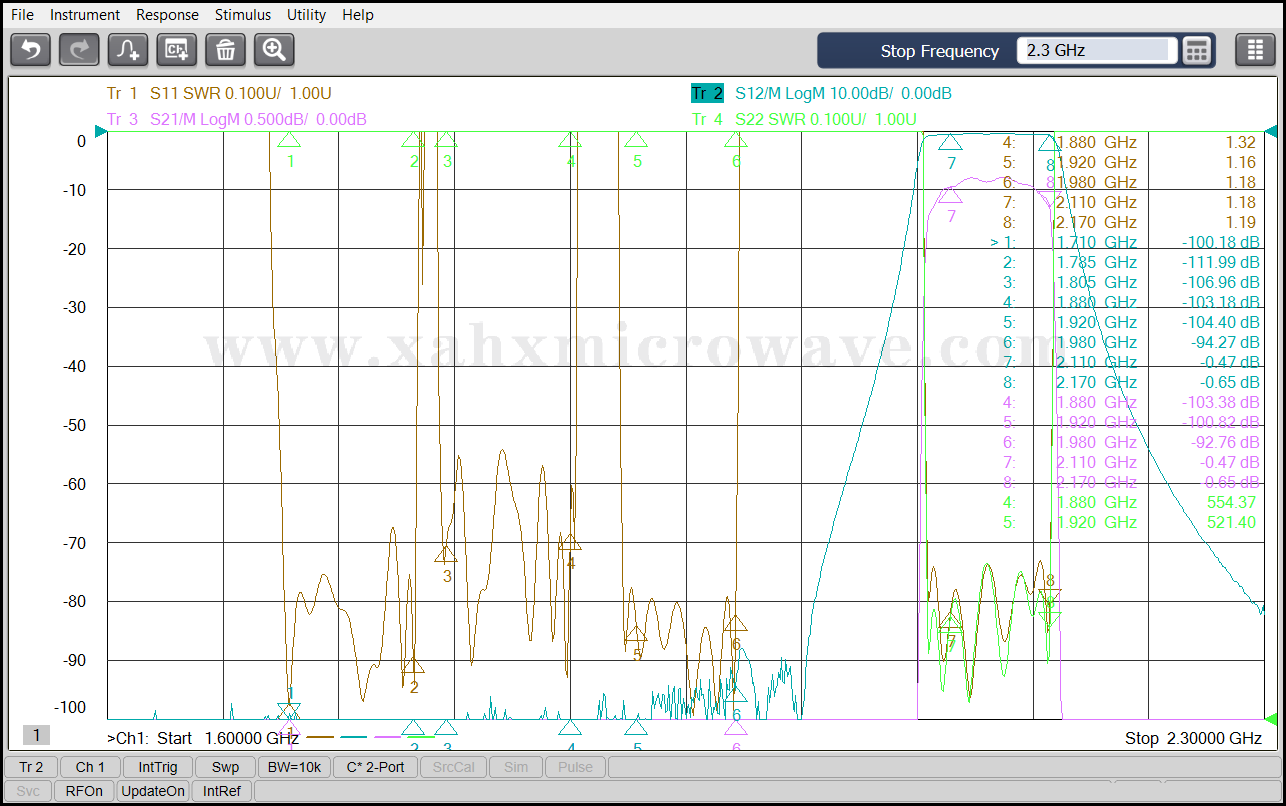

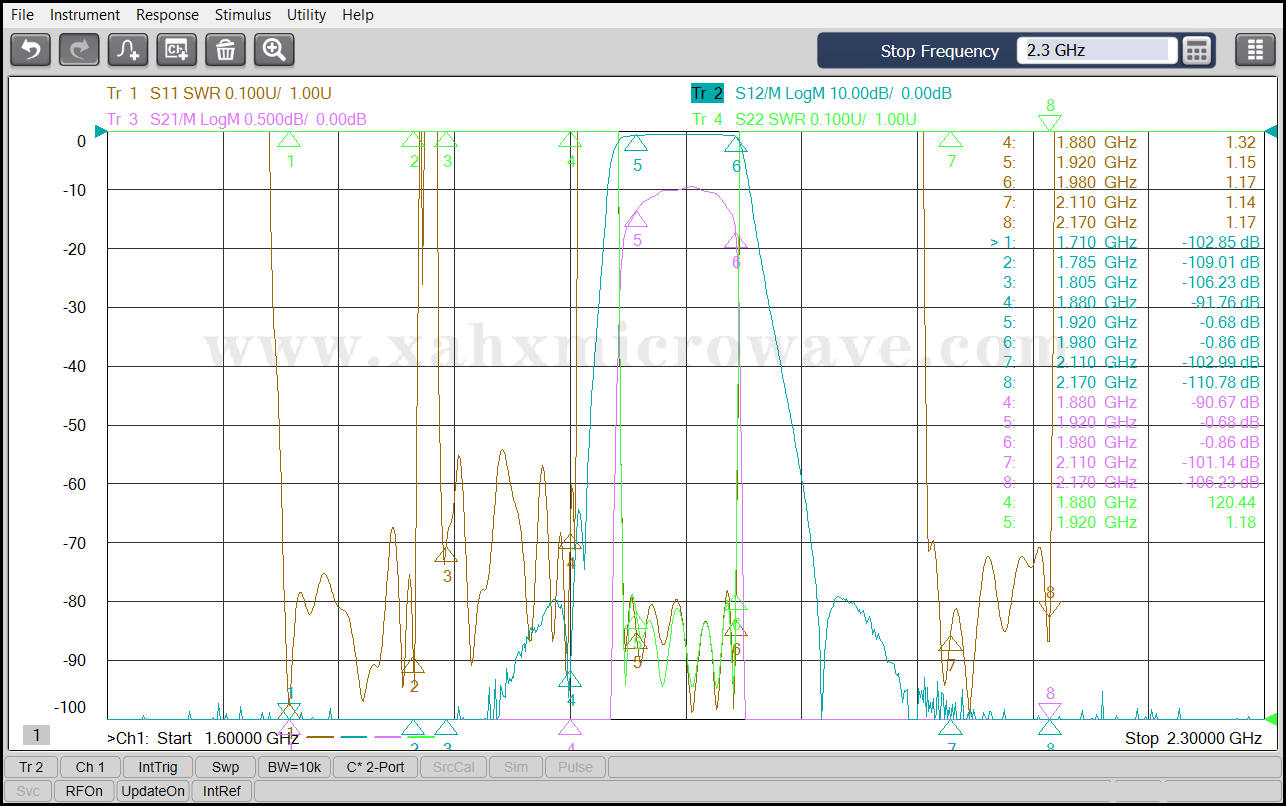

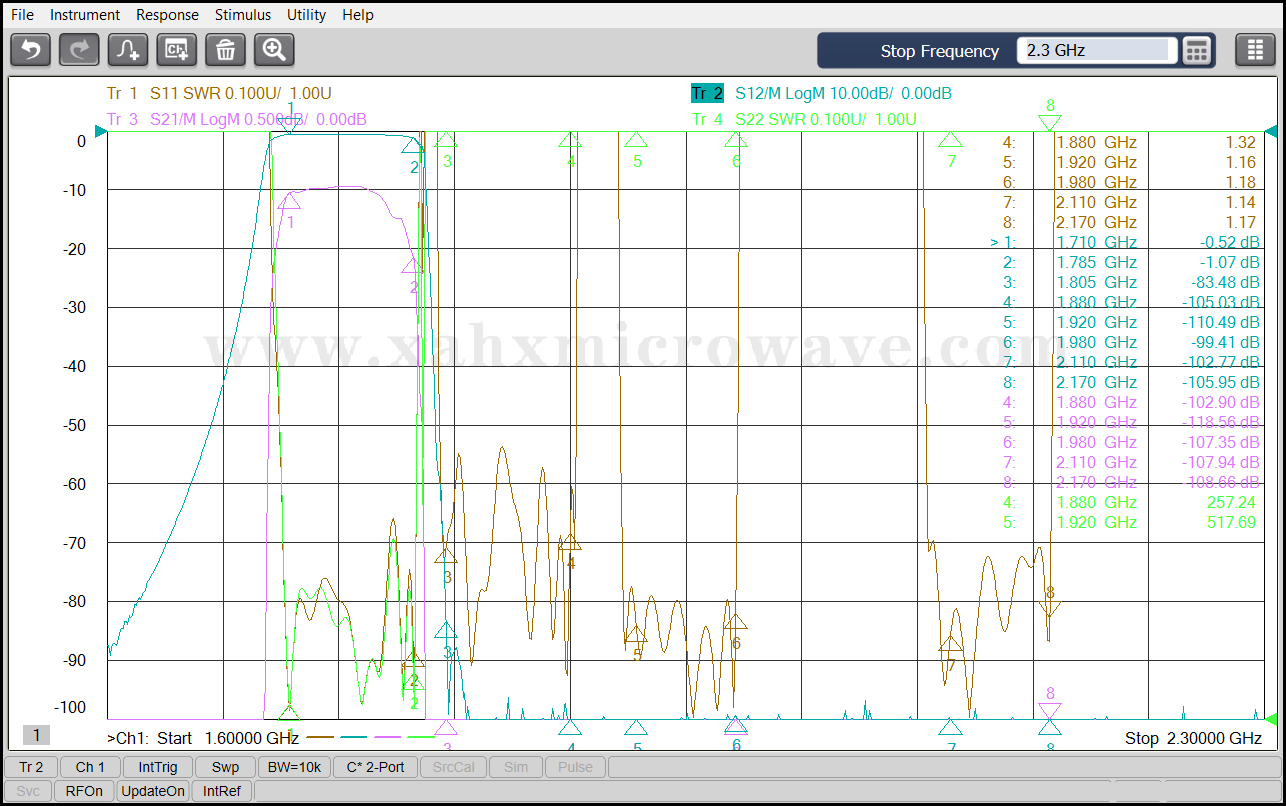

Test Curve
