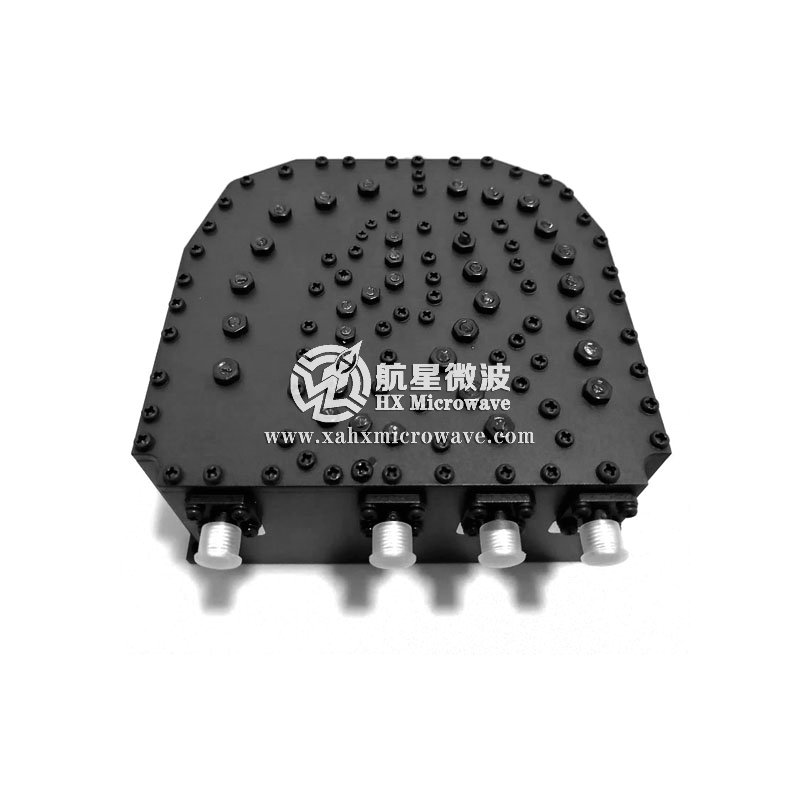

| Technical Data Sheet | |||||
| P/N | Parameters | P1 | P2 | P3 | P4 |
| 1 | Frequency Range | 845~945MHz | 1520~1620MHz | 2400~2500MHz | 5200~5850MHz |
| 2 | Insertion Loss | ≤1.5dB | ≤1.5dB | ≤1.0dB | ≤1.0dB |
| 3 | VSWR | ≤1.70:1 | ≤1.70:1 | ≤1.70:1 | ≤1.70:1 |
| 4 | Port Isolation | ≥60dB@845~945MHz&1520~1620MHz&2400~2500MHz | ≥40dB@5200~5850MHz | ||
| 5 | Power Handling | 30W Max | |||
| 6 | Connectors | SMA-Female | |||
| 7 | Ports Impedance | 50 Ohms | |||
| 8 | Temperature | -10℃~+60℃ | |||
| 9 | Surface Finish | Painted Black | |||
| 10 | Working Environment | Indoor | |||
| Test Curve | |||||
