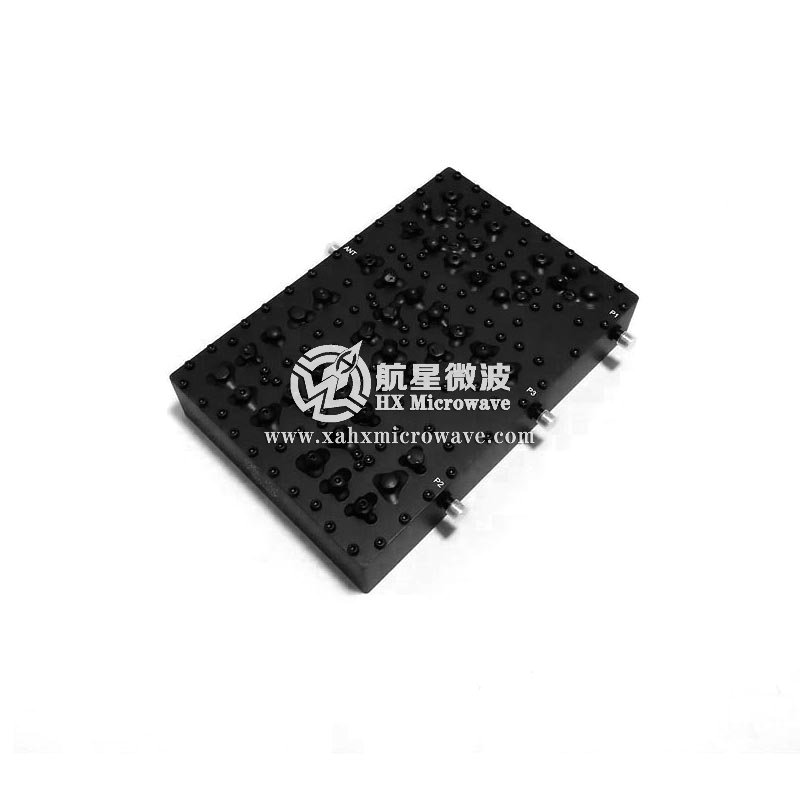

| Technical Data Sheet | ||||
| Serial | Parameters | P1 | P2 | P3 |
| 1 | Center Frequency(F0) | 1747.5MHz | 1842.5MHz | 1950MHz |
| 2 | Pass Band Frequency | 1710 ~ 1785MHz | 1805 ~ 1880MHz | 1920 ~ 1980MHz |
| 3 | Pass Band Insertion Loss | ≤1.5dB | ≤1.5dB | ≤1.5dB |
| 4 | Pass Band Ripple | ≤1.0dB | ≤1.0dB | ≤1.0dB |
| 5 | Pass Band Return Loss | ≥15dB | ≥15dB | ≥15dB |
| 6 | Stop Band Rejection | ≥60dB@ 1805 ~ 1980MHz | ≥60dB @ DC ~ 1785MHz | ≥60dB@ DC ~ 1880MHz |
| ≥60dB @ 1920 ~ 1980MHz | ||||
| 7 | Isolation | ≥60dB @ 1710 ~ 1785MHz , 1805 ~ 1880MHz , 1920 ~ 1980MHz | ||
| 8 | Impedance | 50 Ohms | ||
| 9 | Power | 30W Max. | ||
| 10 | Connectors | SMA-Female | ||
| 11 | Surface Finish | Painted Black | ||
| Test Curve | ||||
