Technical Data Sheet
●	Center Frequency(F0)	2448MHz
●	Pass Band Frequency	2412 ~ 2484MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥60dB @ DC ~ 2382MHz	≥60dB @ 2514 ~ 5500MHz
●	Impedance	50 Ohms
●	Power	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

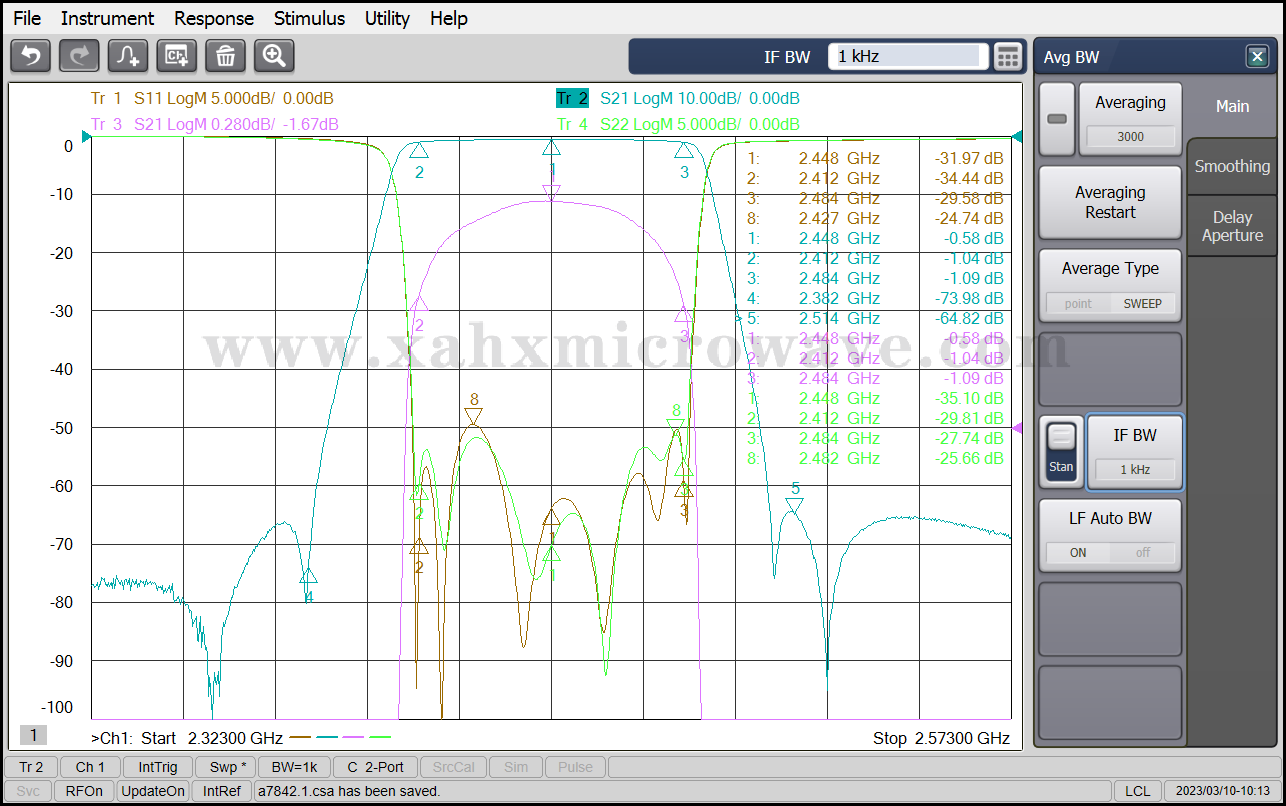

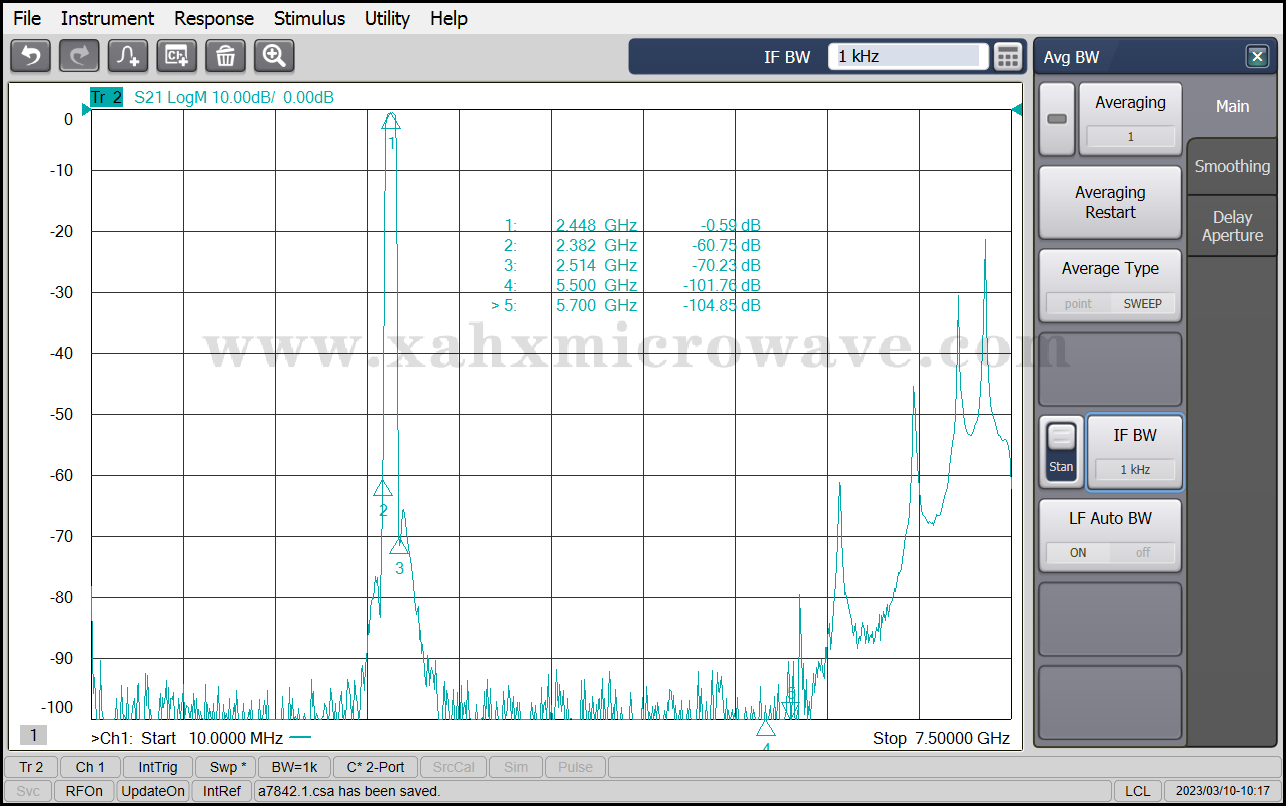

Test Curve
