Technical Data Sheet
●	Center Frequency(F0)	5370MHz
●	Pass Band Frequency	4915 ~ 5825MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 4750MHz	≥60dB @ 5945 ~ 5980MHz
		≥60dB @ 4750 ~ 4795MHz	≥80dB @ 5980 ~ 17000MHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

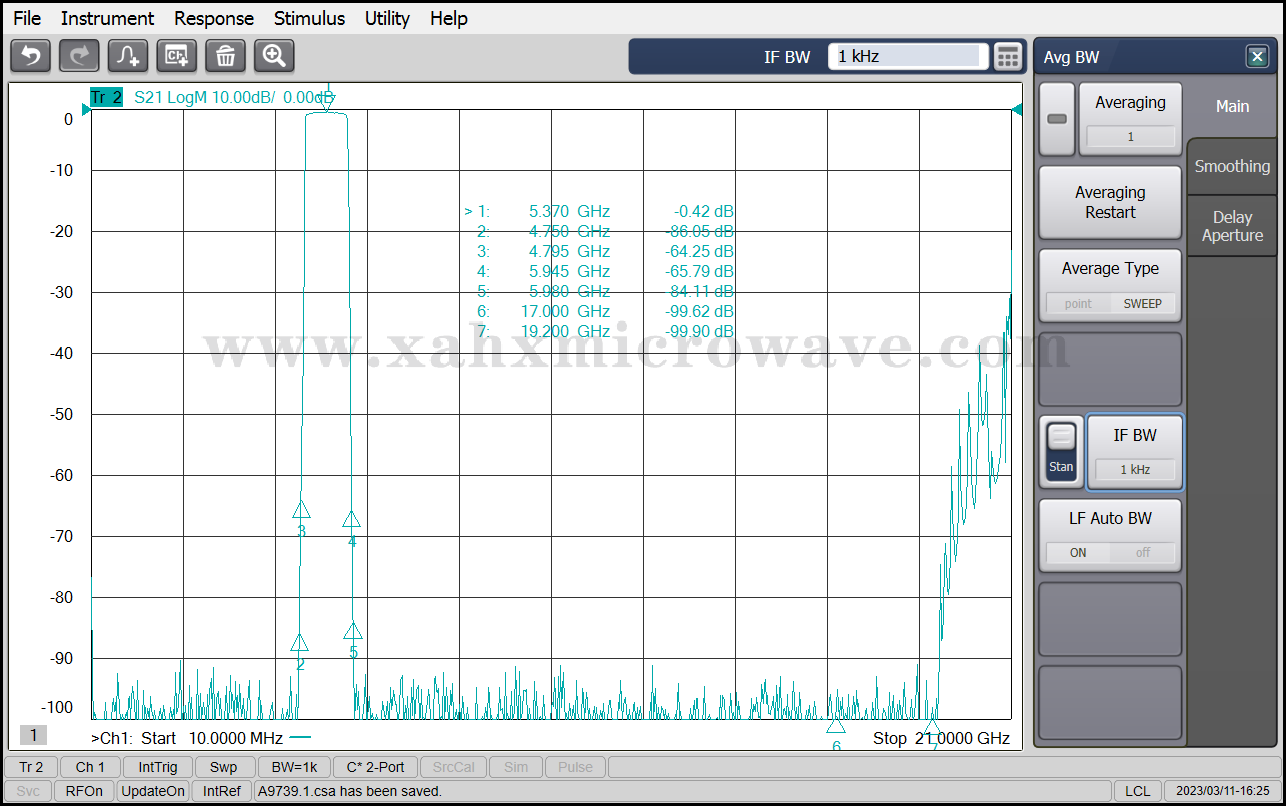

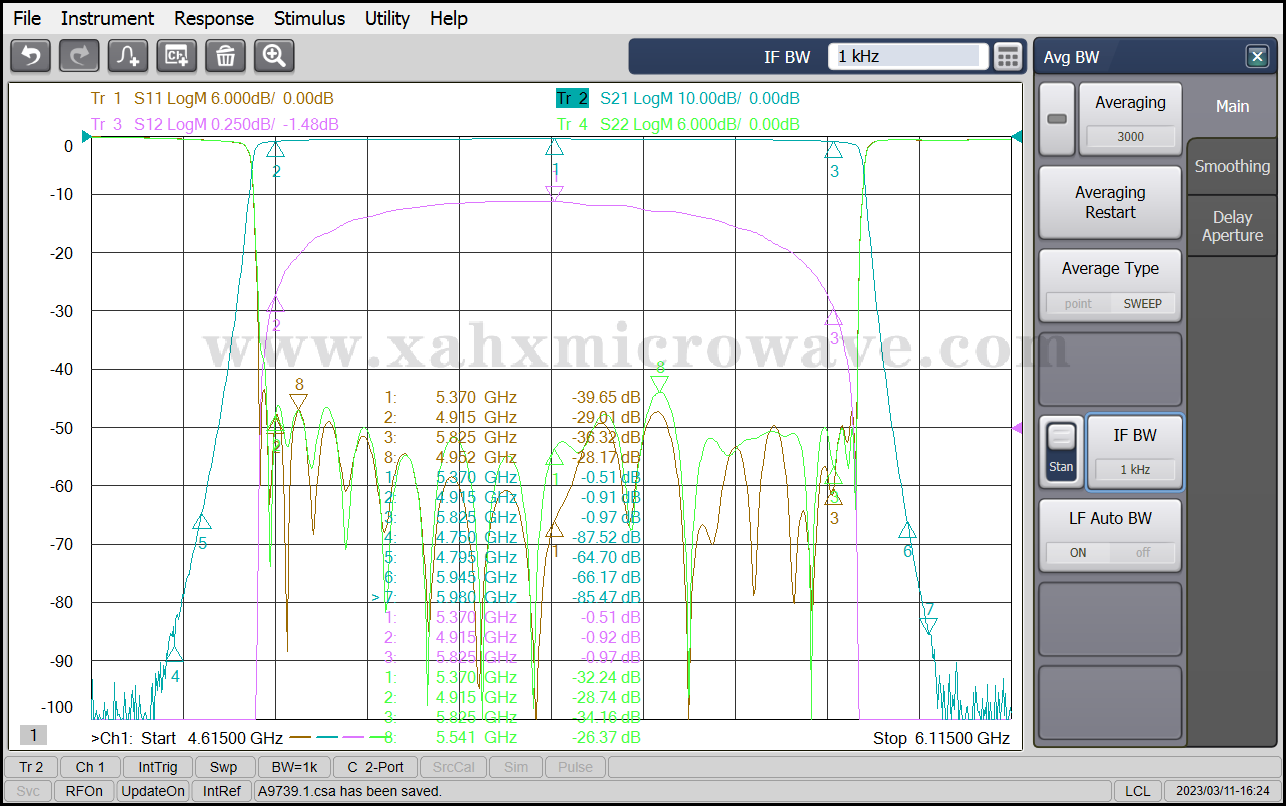

Test Curve
