Technical Data Sheet
●	Center Frequency(F0)	897.5MHz
●	Pass Band Frequency	880 ~ 915MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band Ripple	≤1.1dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥30dB @ DC ~ 875MHz	≥30dB @ 920 ~ 3000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

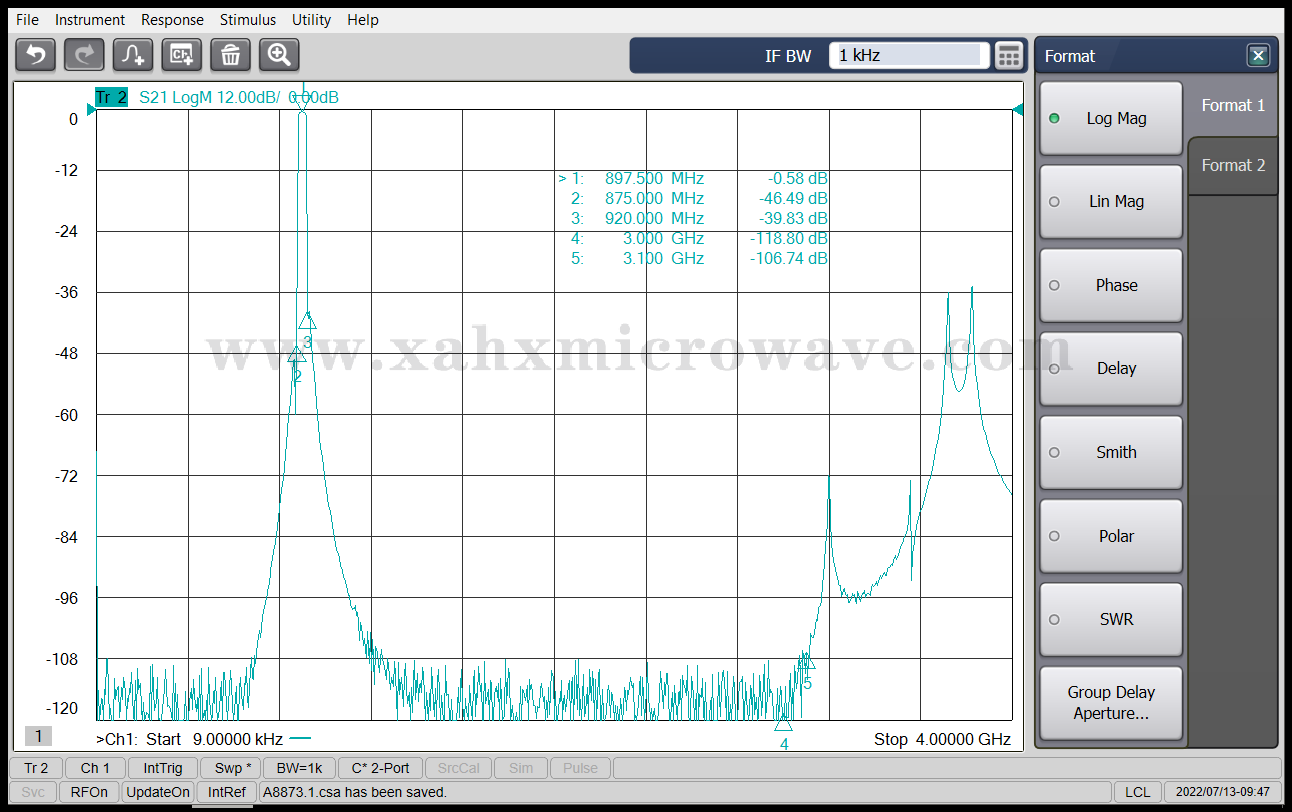

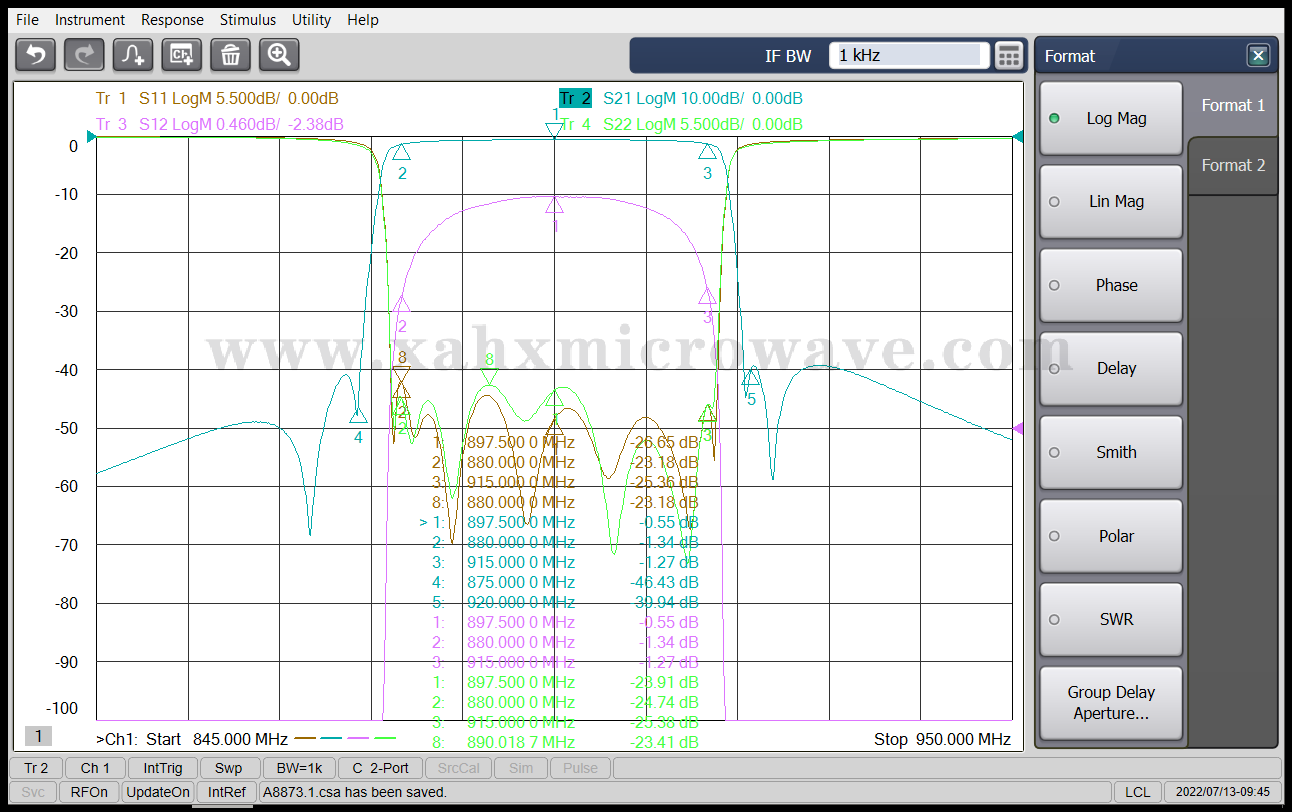

Test Curve
