S/N

Item

Parameters

1

Center Frequency(F0)

9.5GHz

2

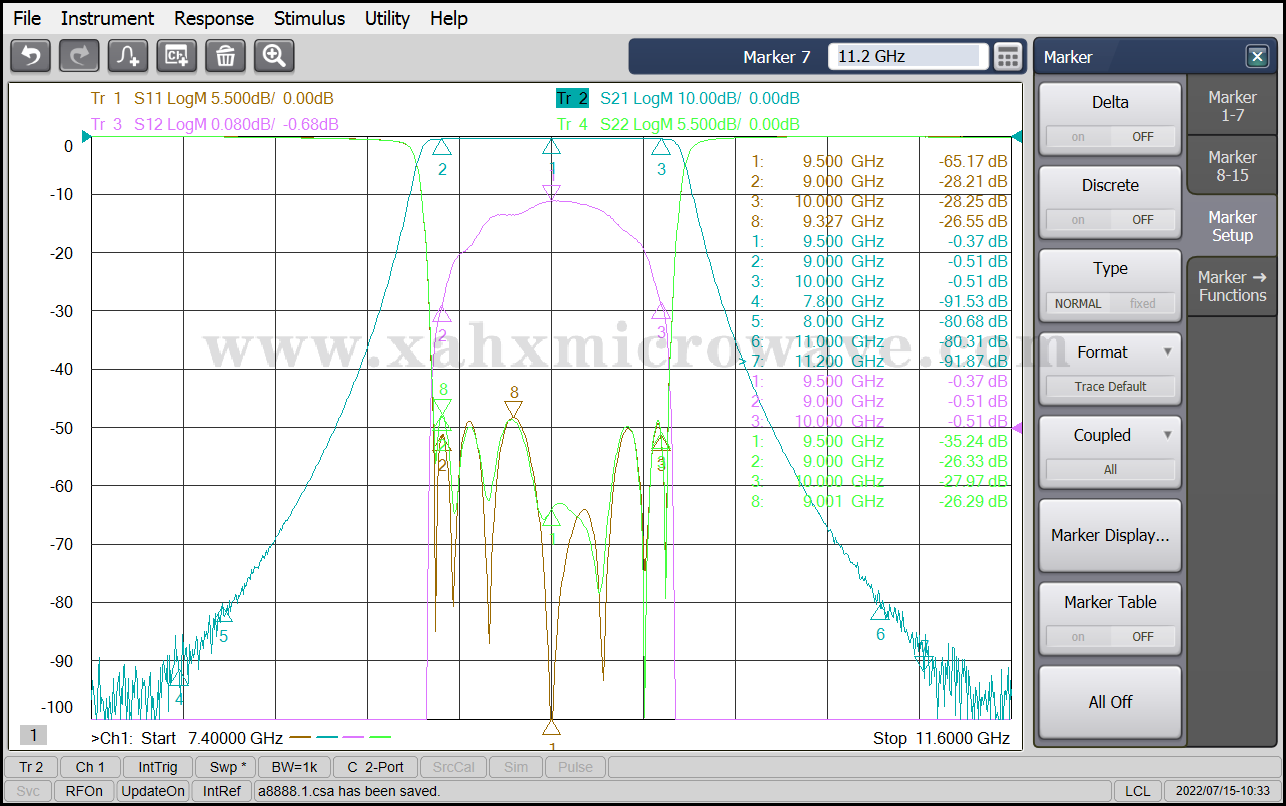

Pass Band Frequency

9.0 ~ 10GHz

3

Pass Band Insertion Loss

≤0.7 dB

4

Pass Band Ripple

≤0.3dB

5

Pass Band Return Loss

≥20dB

6

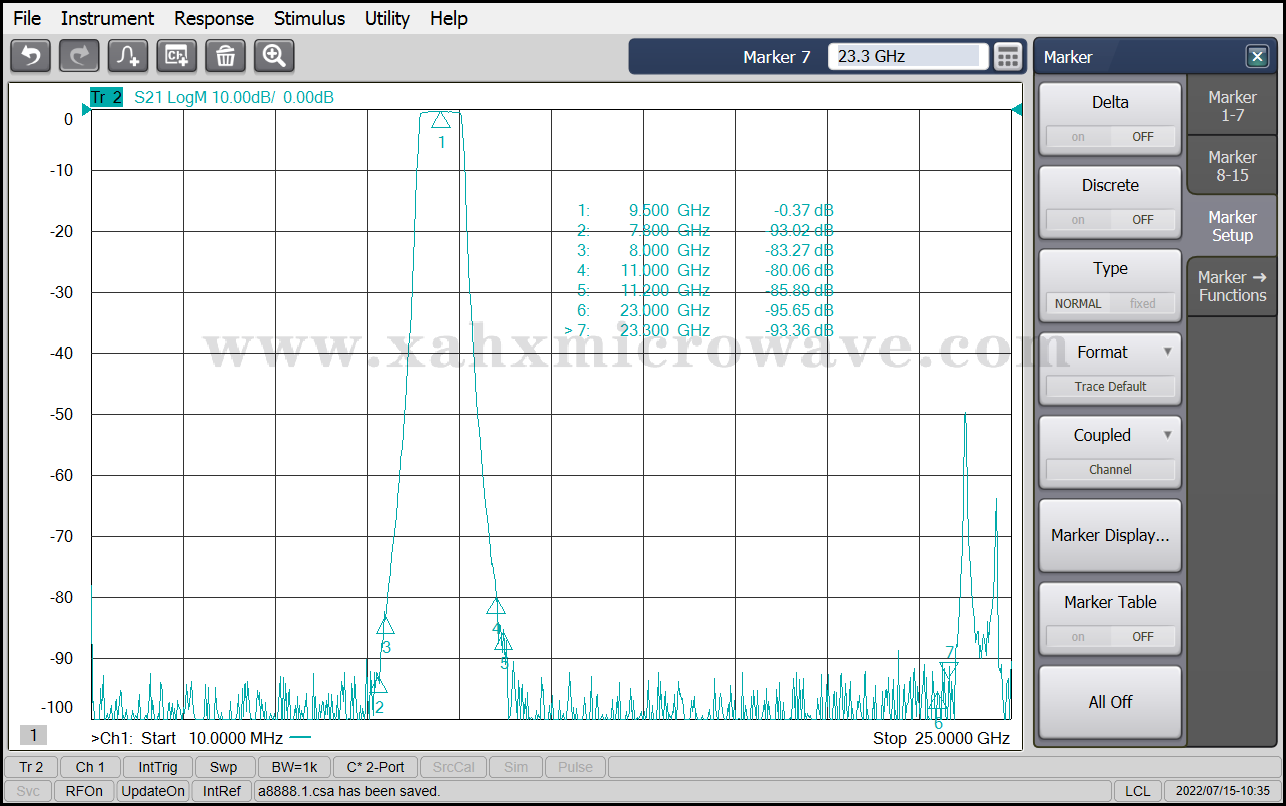

Stop Band Rejection

≥80dB @ DC ~ 7.8GHz

≥70dB @ 7.8 ~ 8.0GHz

≥70dB @ 11 ~ 11.2GHz

≥80dB @ 11.2 ~ 23GHz

7

Impedance

50 Ohms

8

Power Handling

10W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
