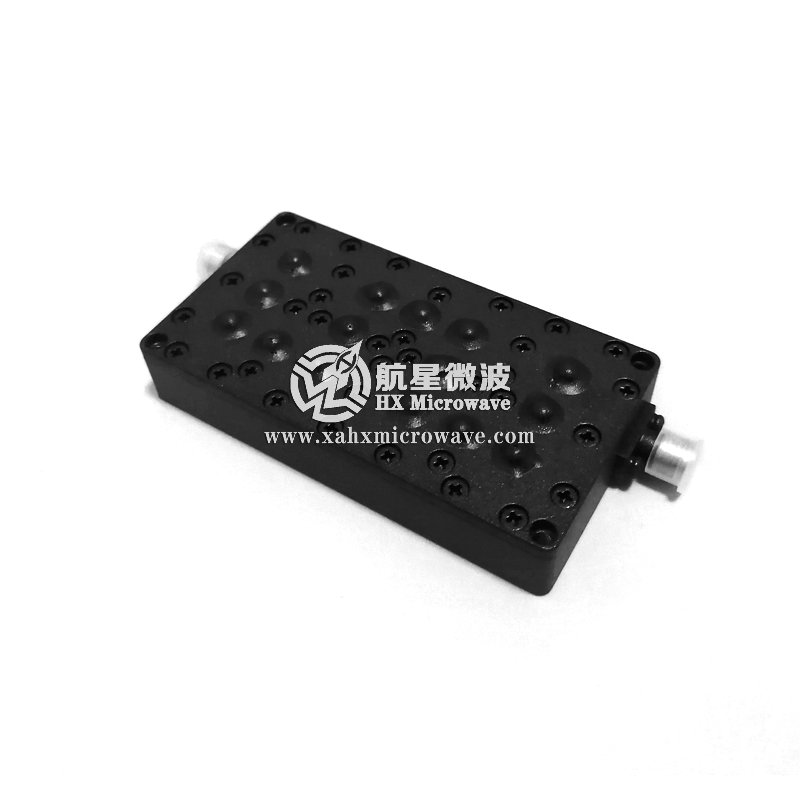

5.45-5.55GHz腔体带通滤波器

S/N

Item

Parameters

1

Center Frequency(F0)

5.5GHz

2

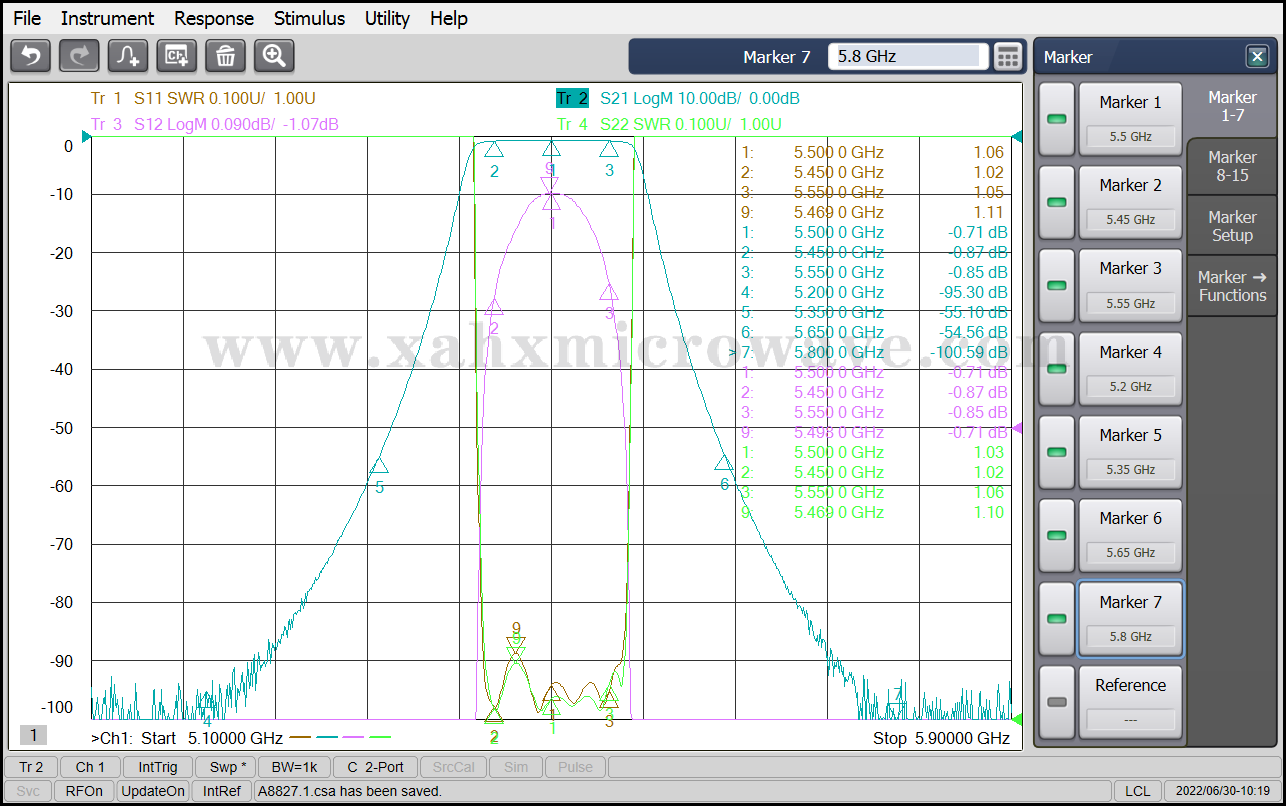

Pass Band Frequency

5.45 ~ 5.55GHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.3dB

5

Pass Band VSWR

≤1.22:1

6

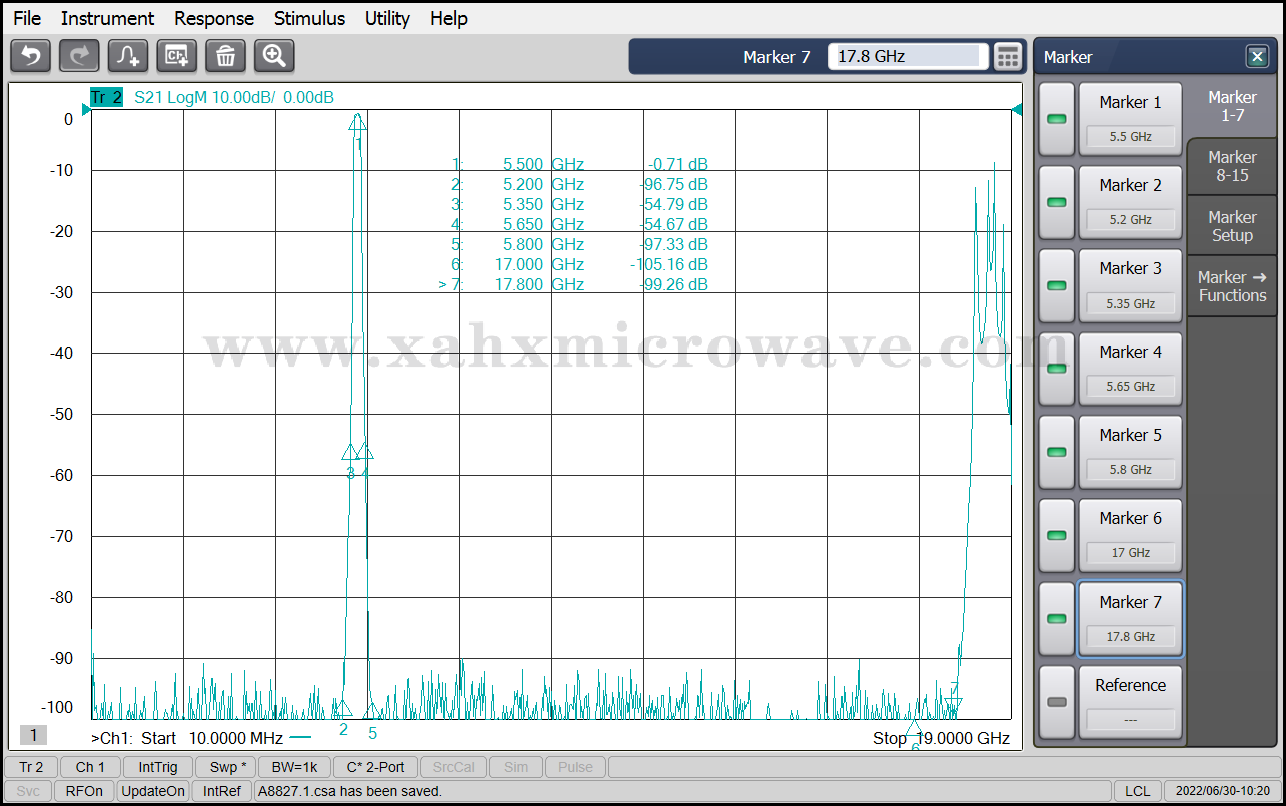

Stop Band Rejection

≥80dB @ DC ~ 5.2GHz

≥50dB @ 5.2 ~ 5.35GHz

≥50dB @ 5.65 ~ 5.8GHz

≥80dB @ 5.8 ~ 17GHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
