S/N

Item

Parameters

1

Center Frequency(F0)

17.3GHz

2

Pass Band Frequency

16.8 ~ 17.8GHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.4dB

5

Pass Band Return Loss

≥20dB

6

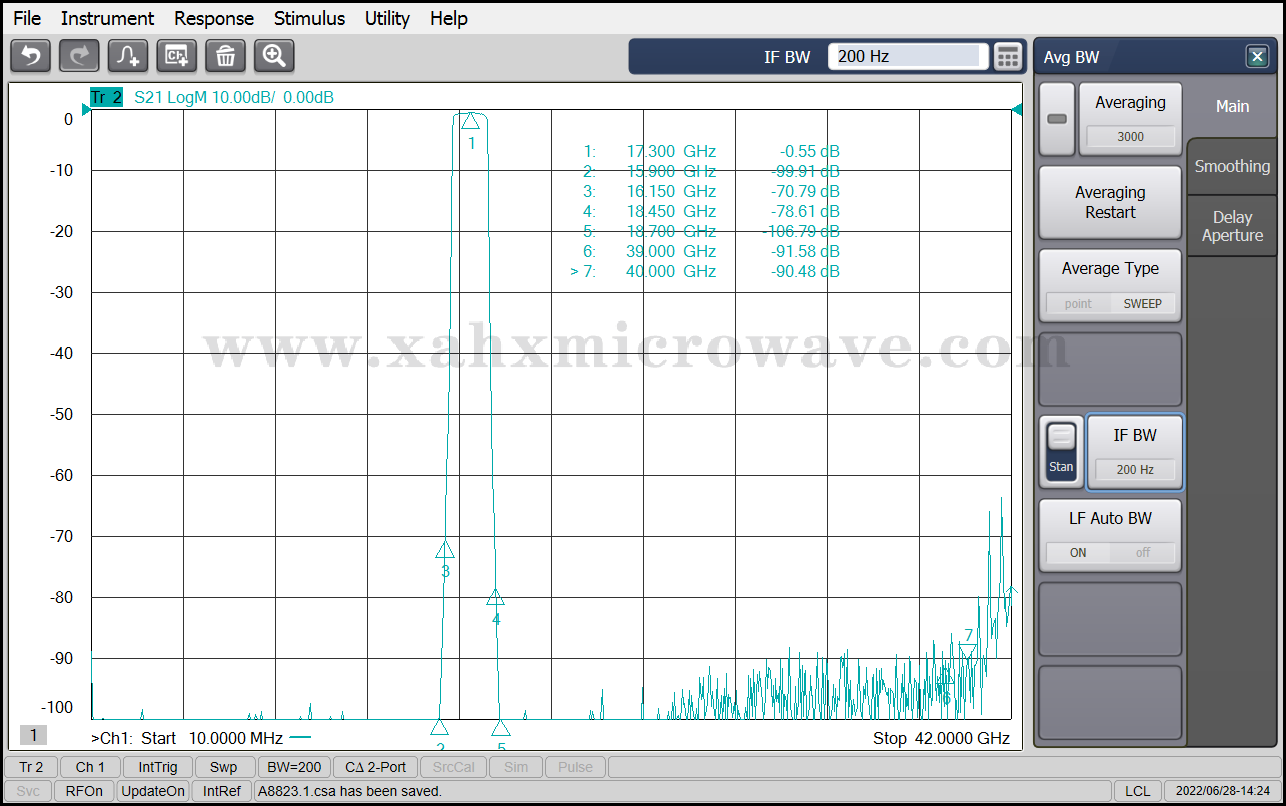

Stop Band Rejection

≥80dB @ DC ~ 15.9GHz

≥60dB @ 15.9 ~ 16.15GHz

≥60dB @ 18.45 ~ 18.7GHz

≥80dB @ 18.7 ~ 39GHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
