Technical Data Sheet
●	Center Frequency(F0)	2800MHz
●	Pass Band Bandwidth	1000MHz (2300 ~ 3300MHz)
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band VSWR	≤1.5:1
●	Stop Band Rejection	≥65dB @ DC ~ 1700MHz	≥30dB @ 3550 ~ 3800MHz
		≥30dB @ 1700 ~ 2050MHz	≥65dB @ 3800 ~ 7500MHz
			≥35dB @ 7500 ~ 9000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

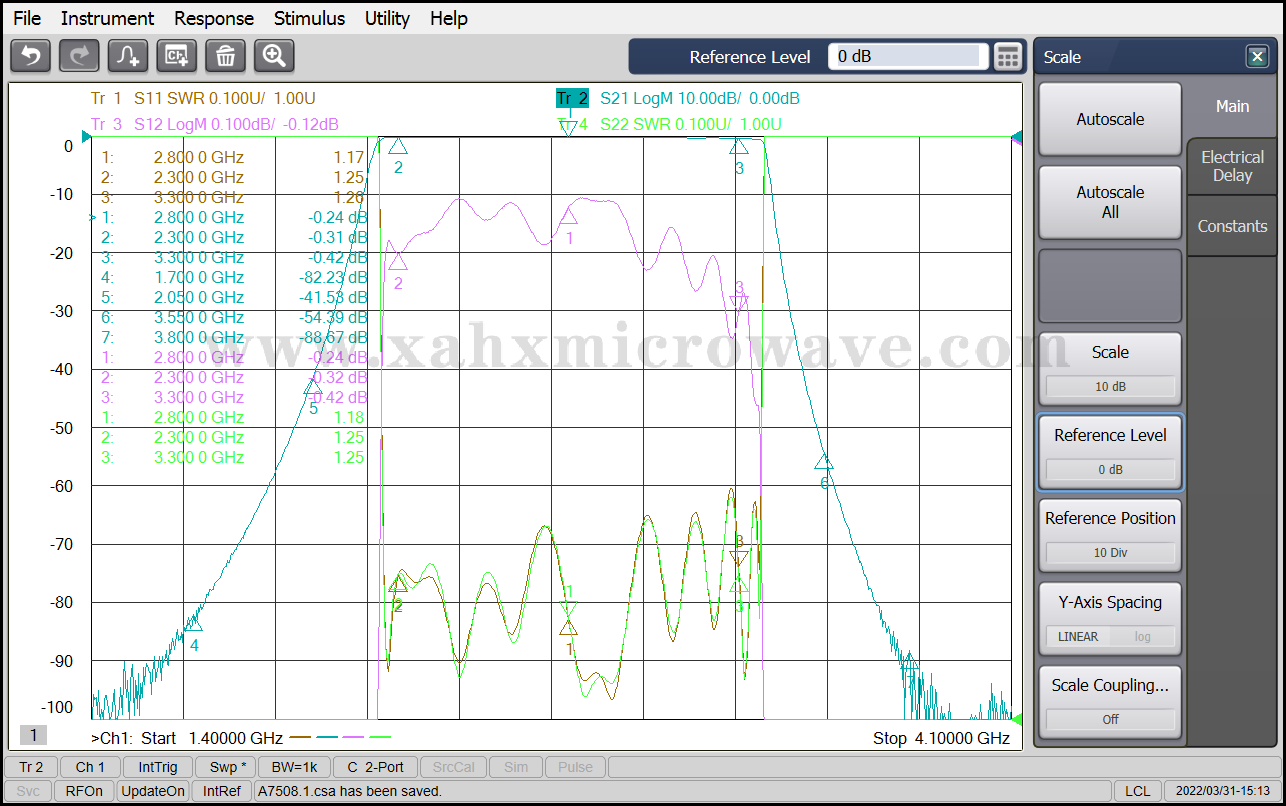

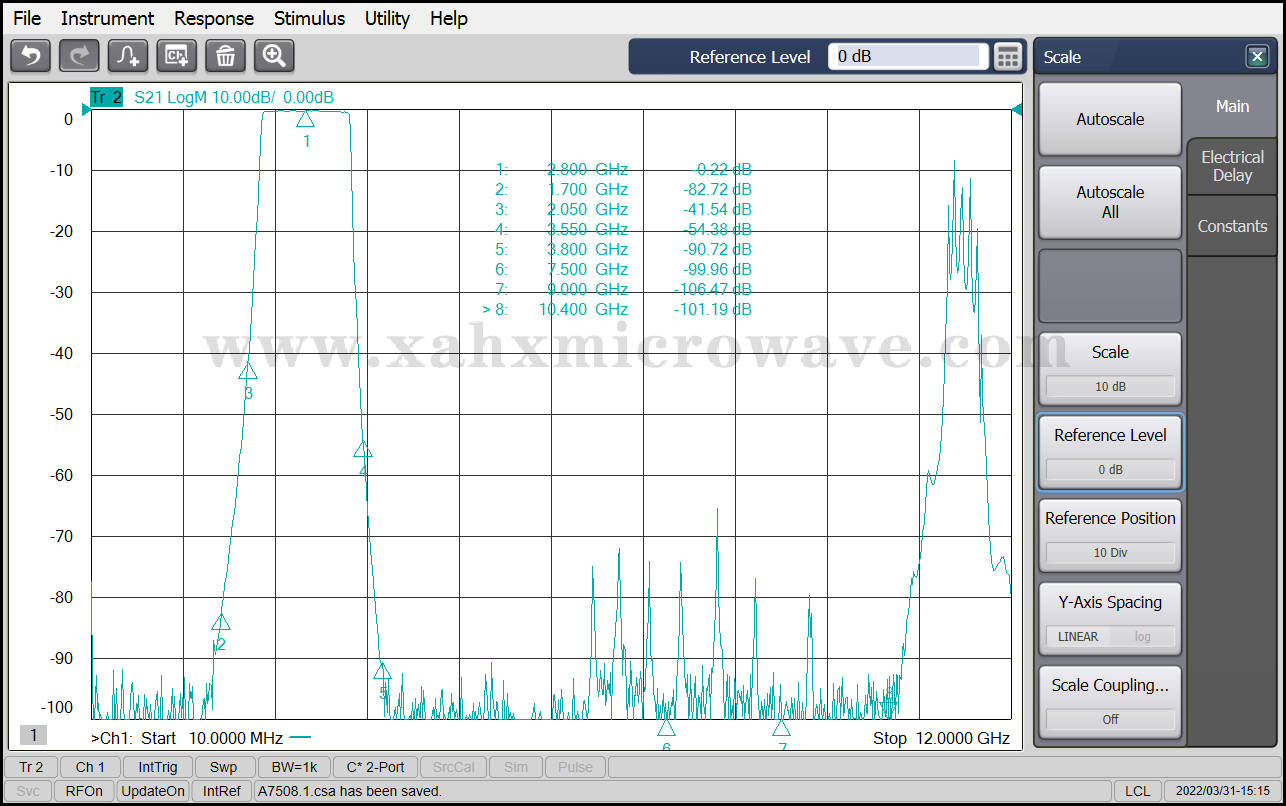

Test Curve
