S/N

Item

Parameters

1

Center Frequency(F0)

2025MHz

2

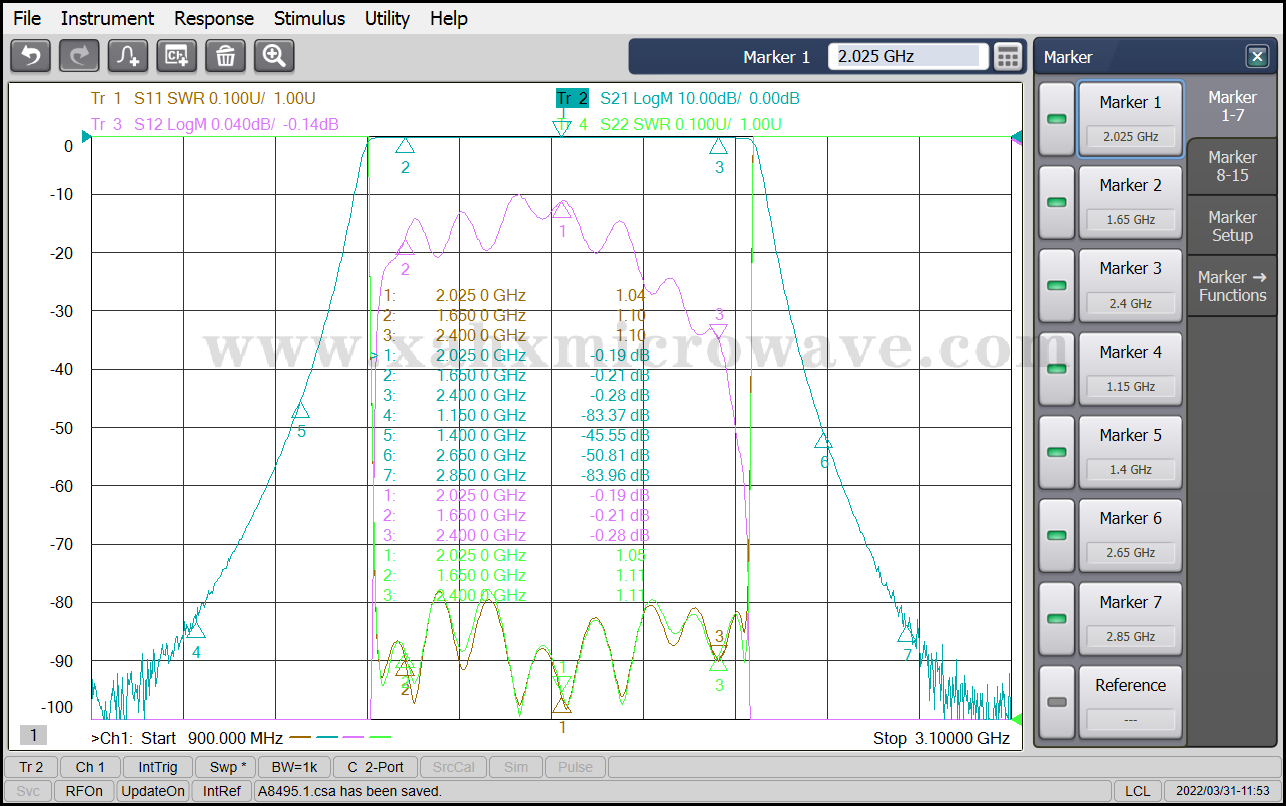

Pass Band Bandwidth

750MHz (1650 ~ 2400MHz)

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.5dB

5

Pass Band VSWR

≤1.5:1

6

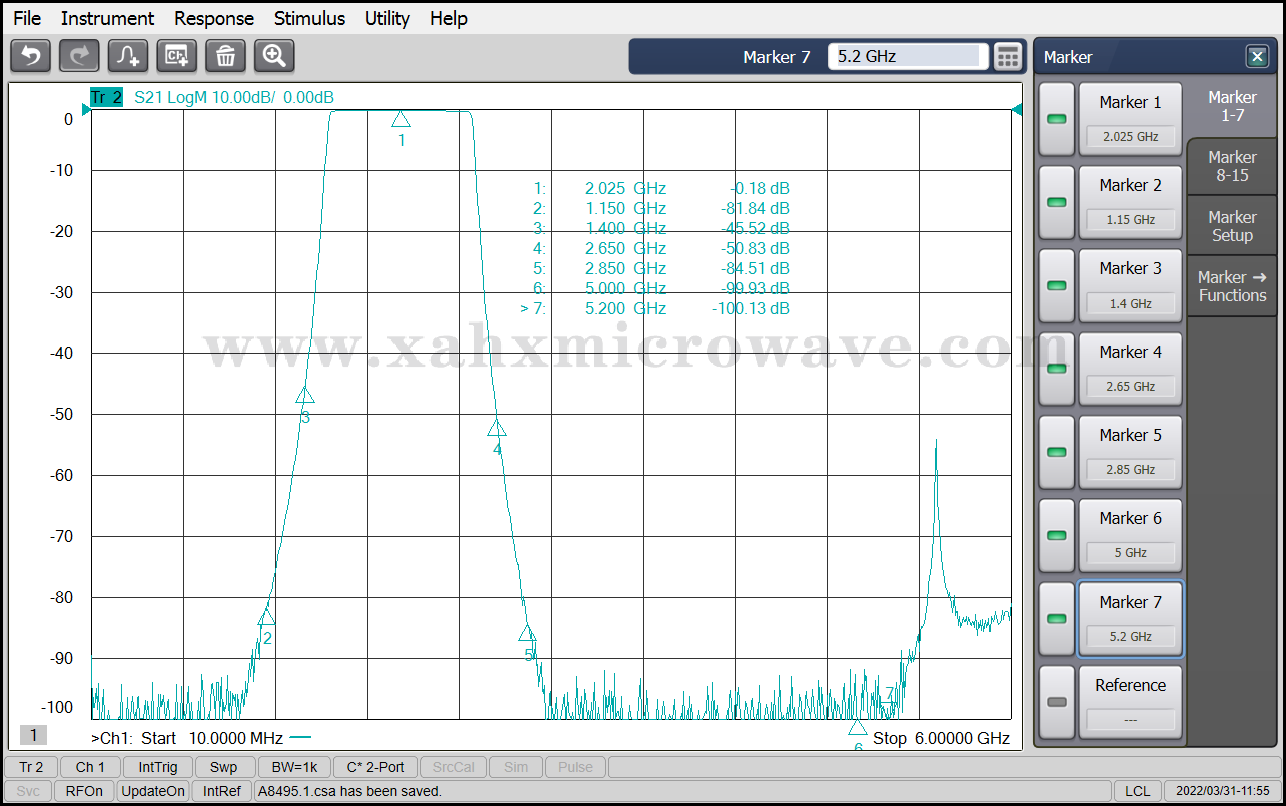

Stop Band Rejection

≥65dB @ DC ~ 1150MHz

≥30dB @ 1150 ~ 1400MHz

≥30dB @ 2650 ~ 2850MHz

≥65dB @ 2850 ~ 5000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
