S/N

Item

Parameters

1

Center Frequency(F0)

596MHz

2

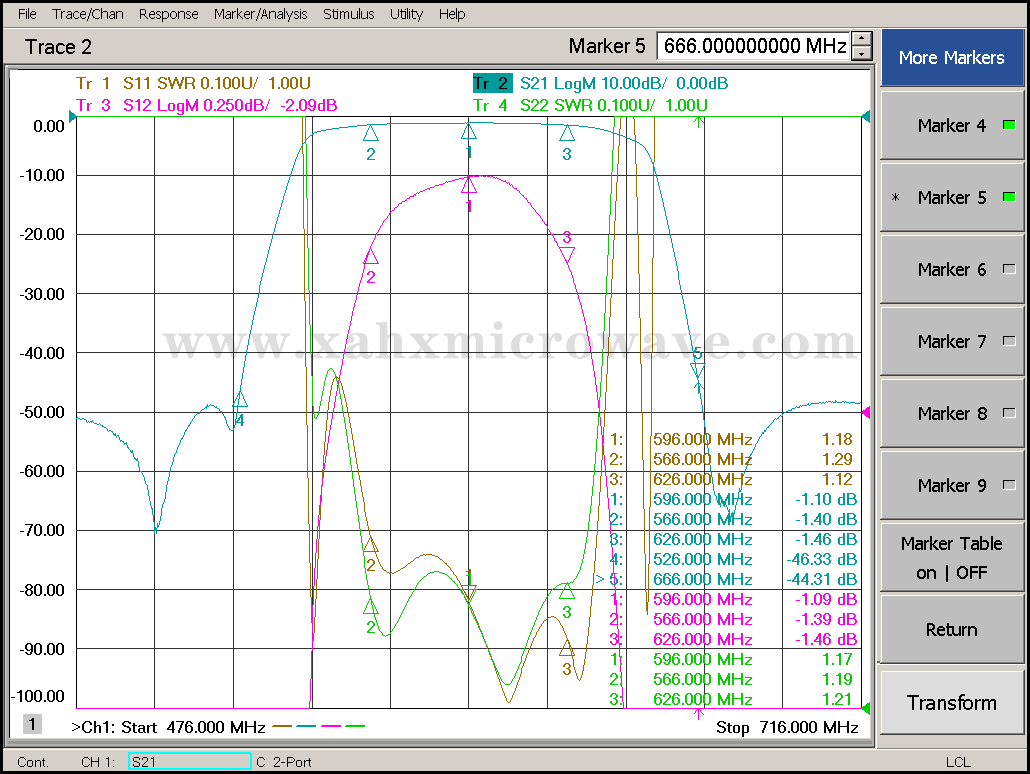

Pass Band Frequency

566 ~ 626MHz

3

Pass Band Insertion Loss

≤1.7dB

4

Pass Band Ripple

≤0.5dB

5

Pass Band VSWR

≤1.4:1

6

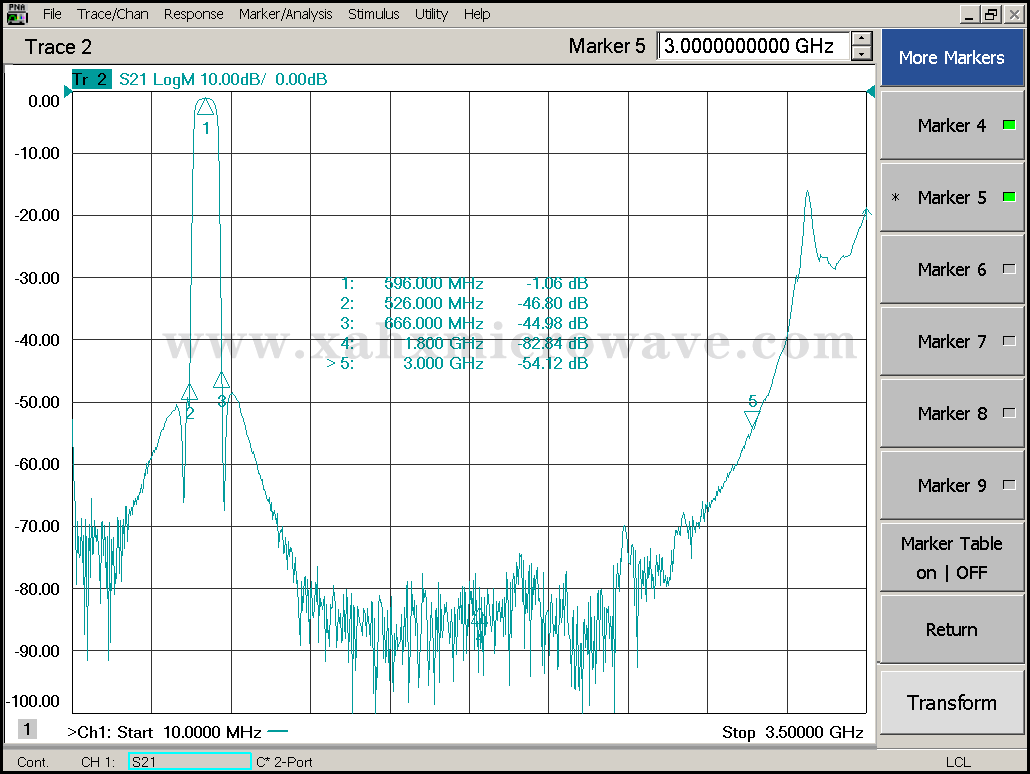

Stop Band Attenuation

≥40dB @ DC ~ 526MHz

≥40dB @ 666 ~ 1800MHz

7

Impedance

50 Ohms

8

Power Handling

50W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃

12

Material

Housing: 6061 Aluminum alloy

Cover: LY12 Aluminum alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

13

Dimensions

80*30*20mm
