Cavity Band Rejection Filter

  • 3400-3600MHz Cavity Band Rejection Filter_Notch Filter
3400-3600MHz Cavity Band Rejection Filter_Notch Filter

3400-3600MHz Cavity Band Rejection Filter_Notch Filter

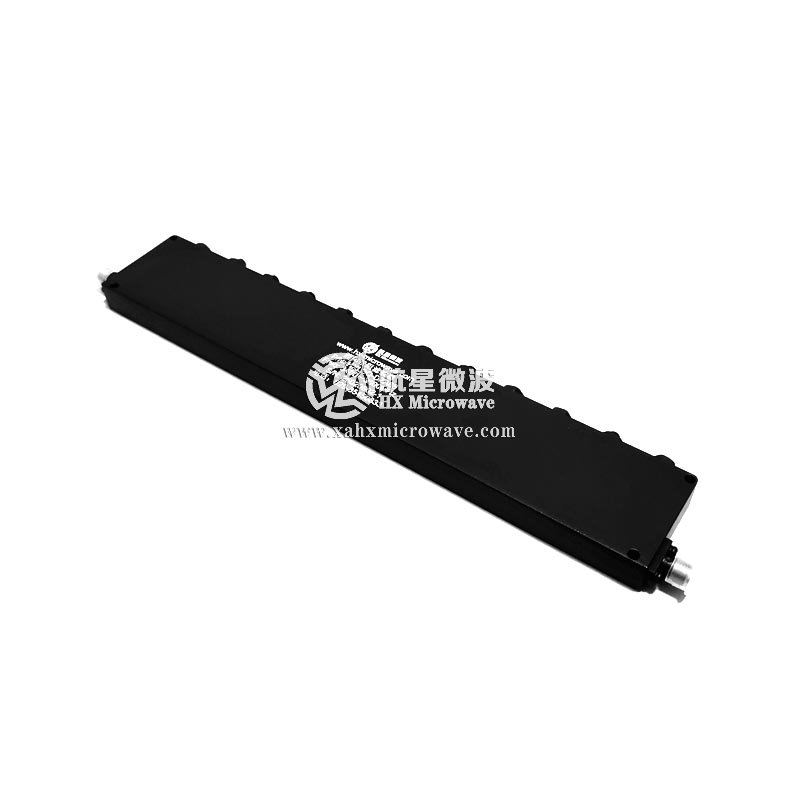

  • P/N: HXLBQ-DZA68
  • Stop Band Frequency:3400-3600MHz
  • Stop Band Attenuation:≥45dB
  • Insertion loss:≤3.0dB
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download

Technical Data Sheet
Stop Band Frequency 34003600MHz
Stop Band Attenuation ≥45dB
Pass Band Frequency DC3360MHz & 36407000MHz
Pass Band Insertion Loss ≤3.0dB
Pass Band VSWR ≤1.5:1
Impedance 50 ohms
Surface Finish Black Paint
Power Handling ≤50W
Connectors SMA-Female
Configuration As Below (Size Unit: mm)
Test Curve
