| Technical Data Sheet | ||
| ● | Pass Band Frequency | 500 ~ 3000MHz |
| ● | Pass Band Insertion Loss | ≤1.5dB |
| ● | Pass Band VSWR | ≤1.8:1 |
| ● | Stop Band Attenuation | ≥40dB @ DC ~ 300MHz |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 1.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -30℃ ~ +70℃ |

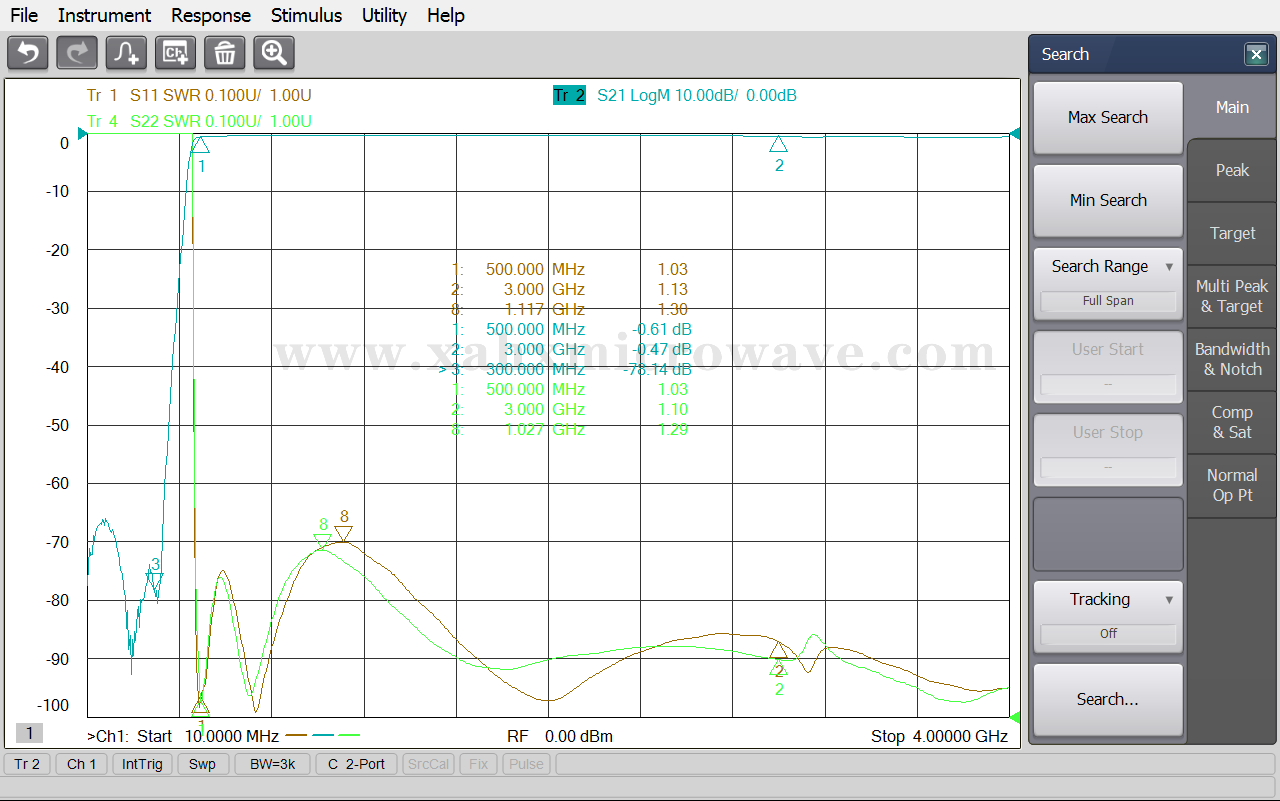

| Test Curve | ||
