| Technical Data Sheet | ||
| ● | Stop Band Frequency | 5170 ~ 5330MHz |
| ● | Stop Band Attenuation | ≥30dB |
| ● | Pass Band Frequency | DC ~ 5130MHz , 5370 ~ 11200MHz |
| ● | Pass Band Insertion Loss | ≤3.5dB |
| ● | Pass Band VSWR | ≤1.7:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 50W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

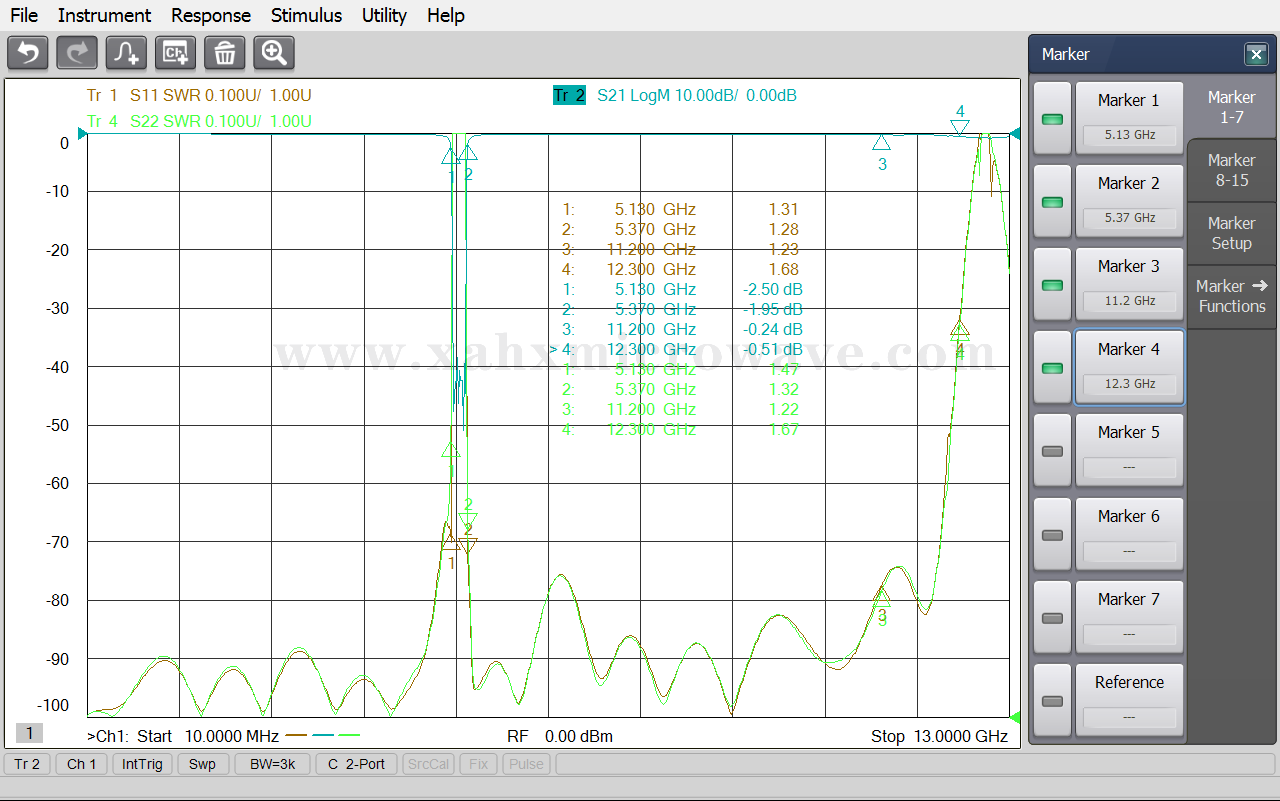

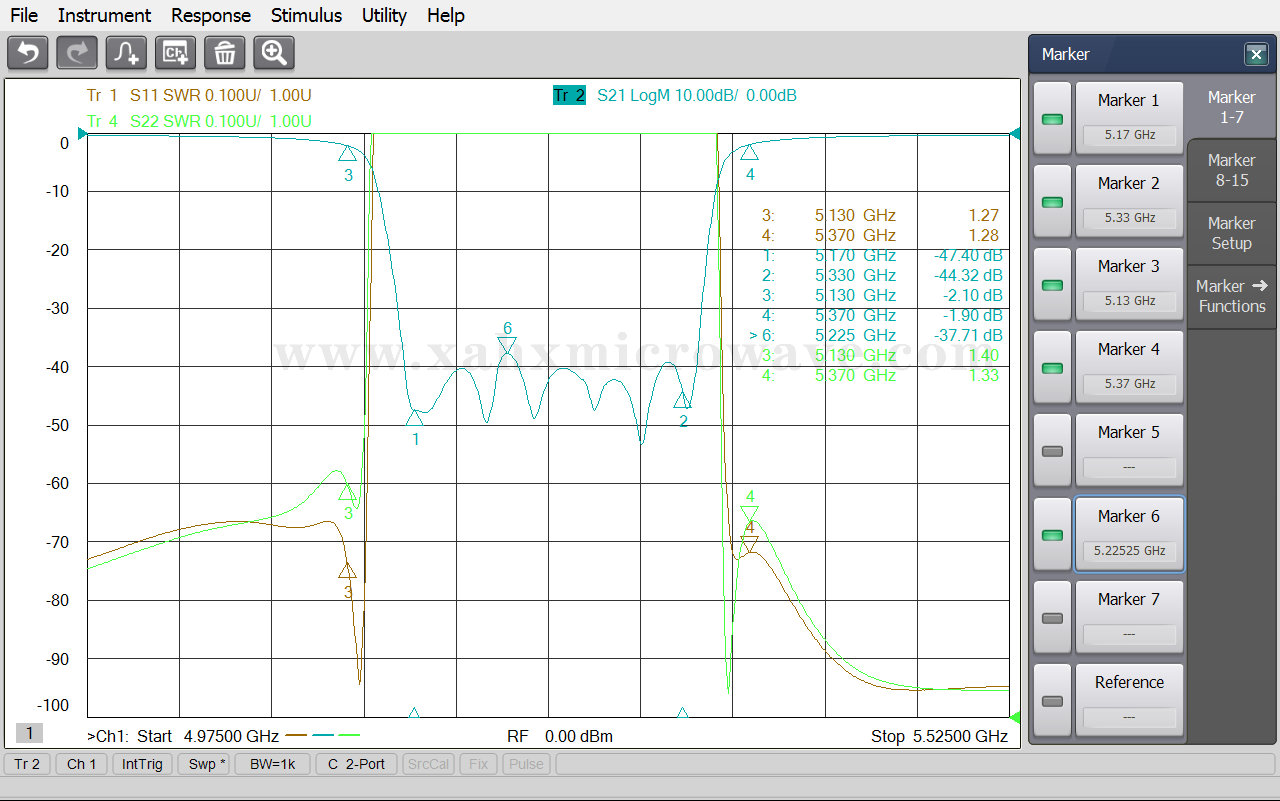

| Test Curve | ||
