| Technical Data Sheet | ||
| ● | Stop Band Frequency | 2400 ~ 2483.5MHz |
| ● | Stop Band Attenuation | ≥65dB |
| ● | Pass Band Frequency | DC ~ 2250MHz , 2650 ~ 18000MHz |
| ● | Pass Band Insertion Loss | ≤3.5dB @ DC ~ 2250MHz , 2650 ~ 18000MHz |
| ● | Pass Band VSWR | ≤2.0:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 20W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

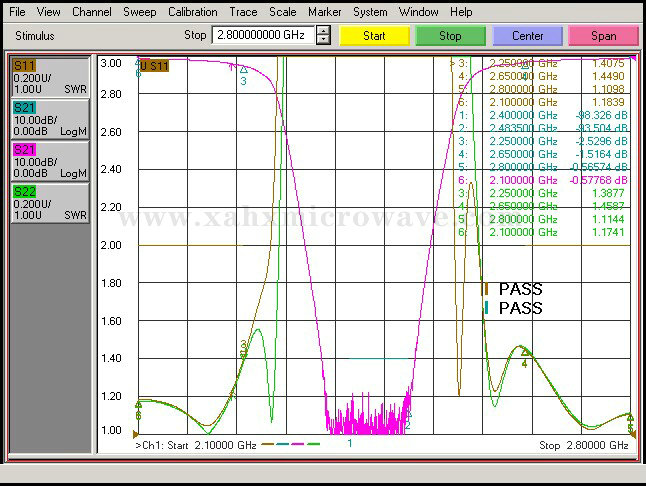

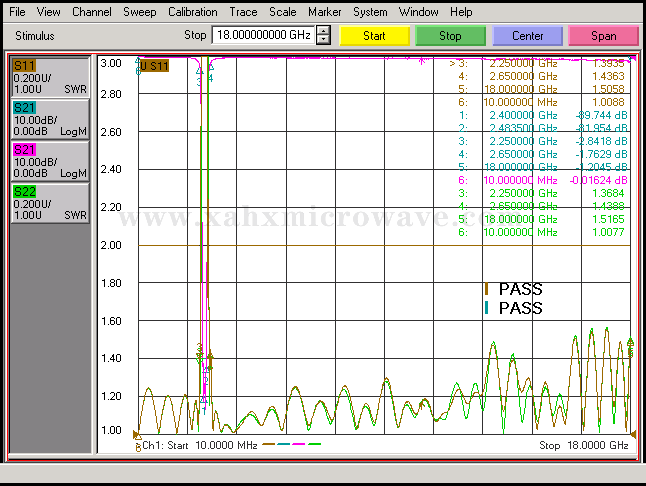

| Test Curve | ||
