| Technical Data Sheet | ||
| ● | Stop Band Frequency | 3700 ~ 4300MHz |
| ● | Stop Band Attenuation | ≥40dB |
| ● | Pass Band Frequency | DC ~ 3470MHz , 4480 ~ 9000MHz |
| ● | Pass Band Insertion Loss | ≤2.0dB |
| ● | Pass Band VSWR | ≤1.7:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 5.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

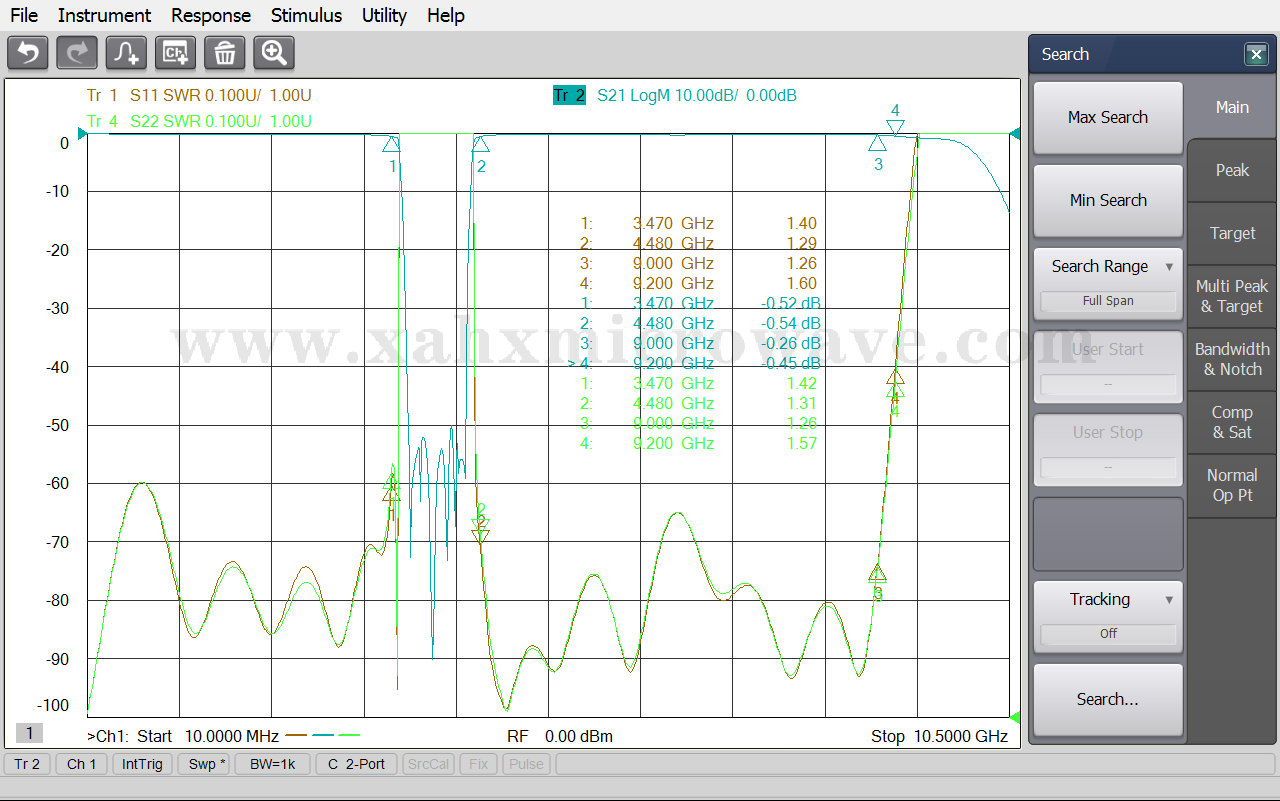

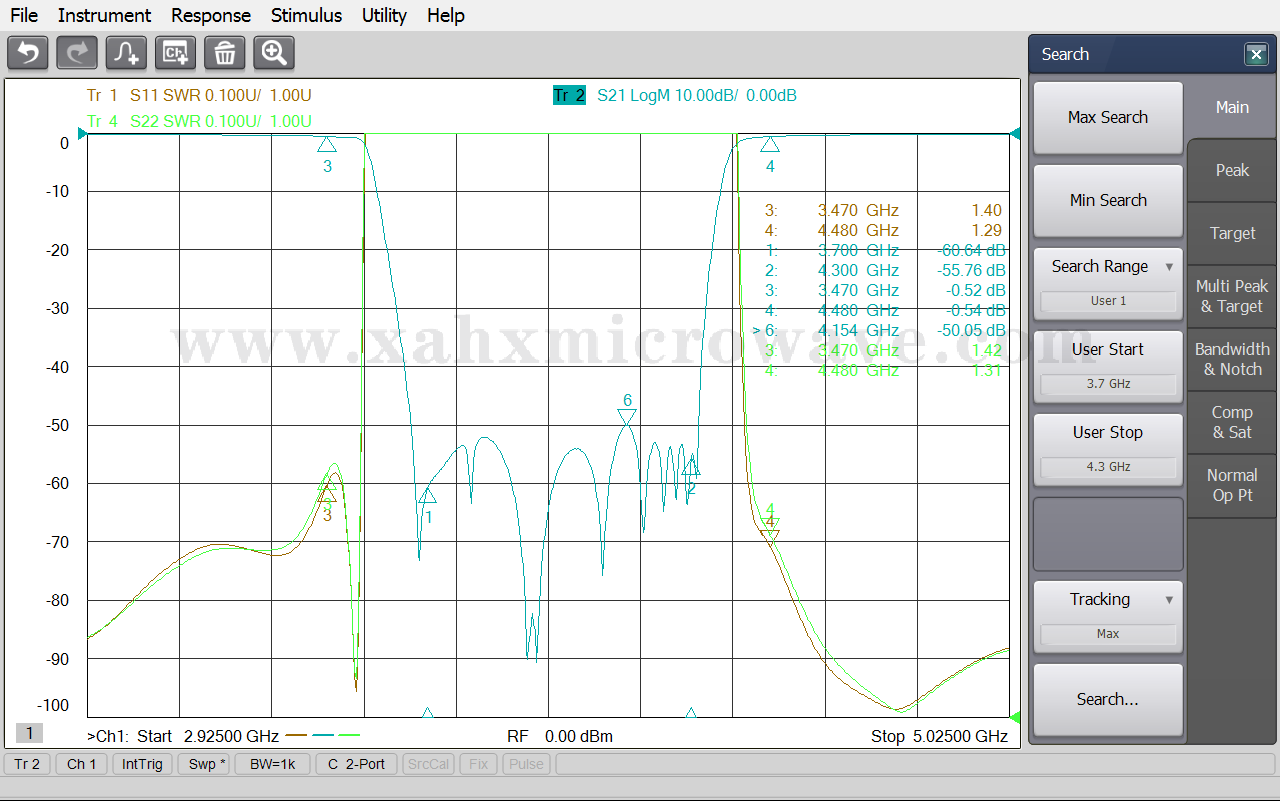

| Test Curve | ||
