| Technical Data Sheet | ||
| ● | Stop Band Frequency | 791 ~ 862MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 751MHz , 902 ~ 2500MHz |
| ● | Pass Band Insertion Loss | ≤1.0dB |
| ● | Pass Band VSWR | ≤1.6:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

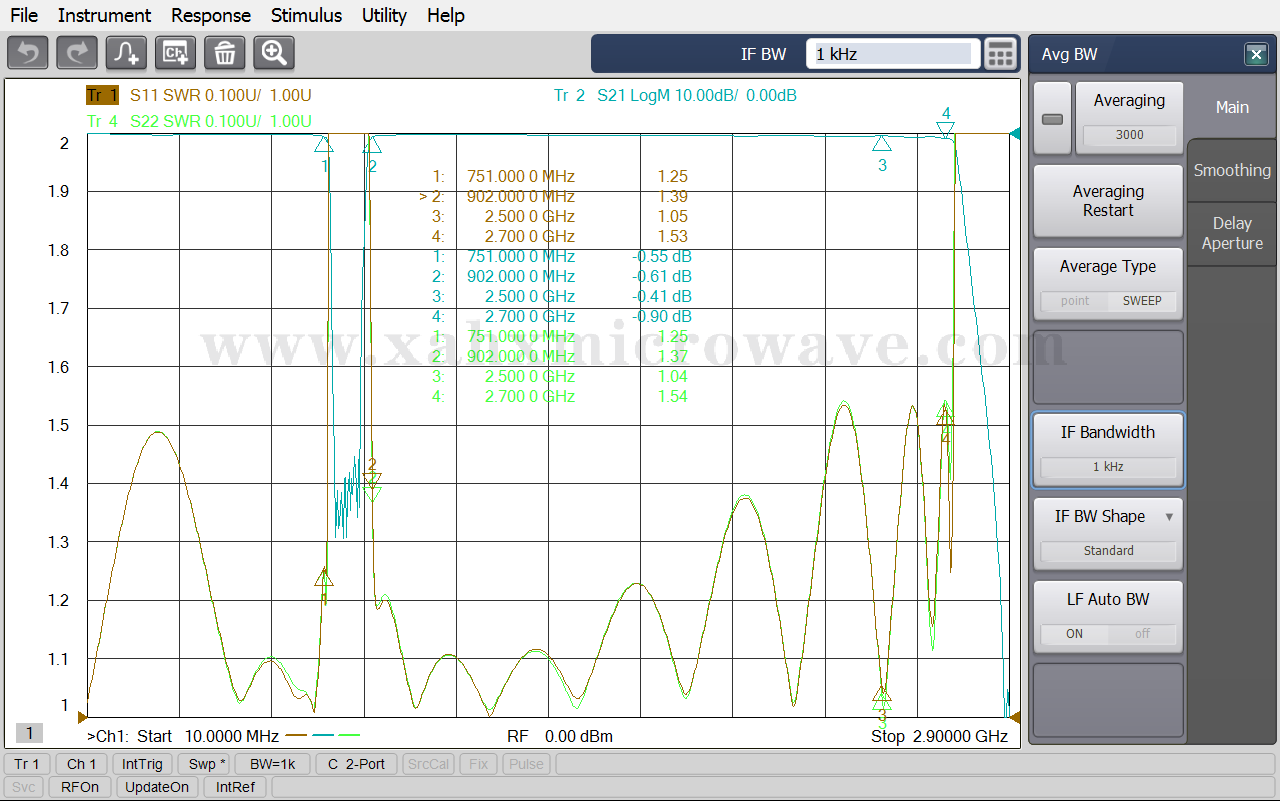

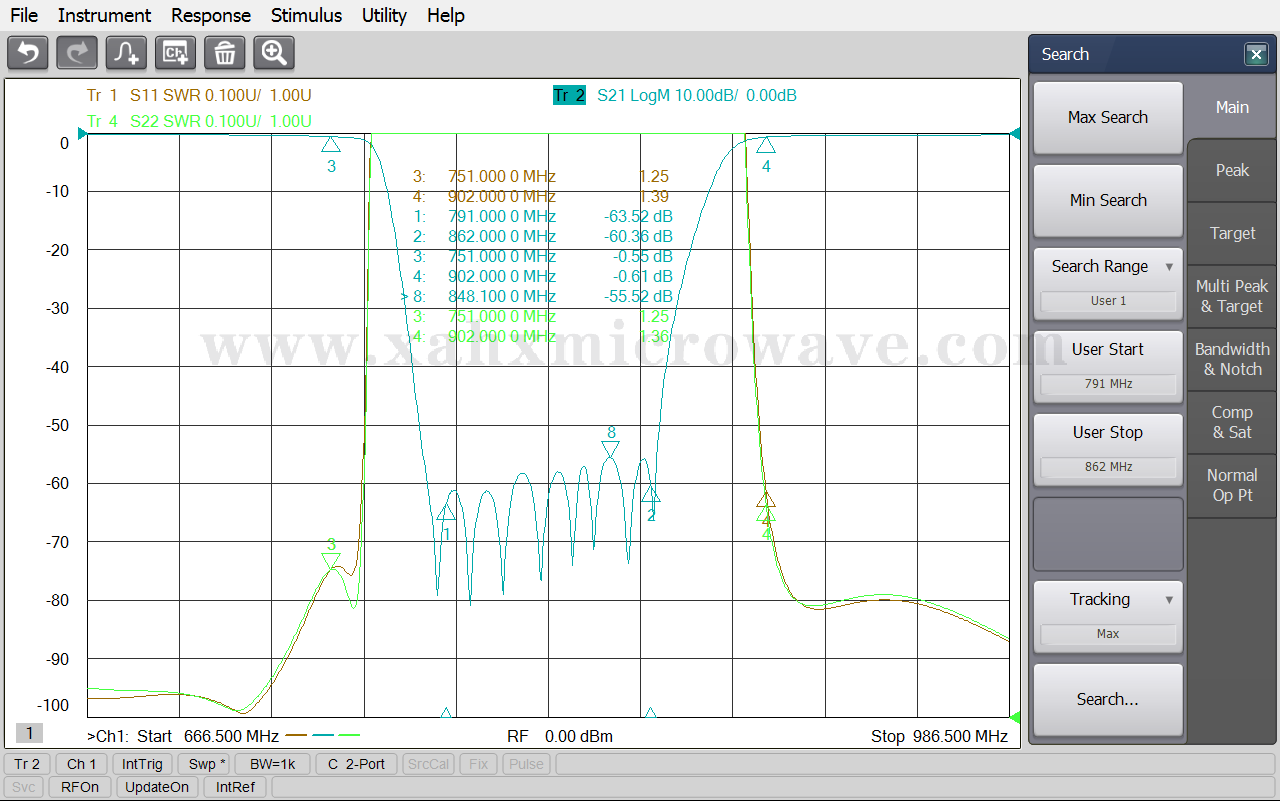

| Test Curve | ||
