| Technical Data Sheet | ||
| ● | Stop Band Frequency | 1850 ~ 1920MHz |
| ● | Stop Band Attenuation | ≥60dB |
| ● | Pass Band Frequency | DC ~ 1810MHz , 1970 ~ 5100MHz |
| ● | Pass Band Insertion Loss | ≤1.5dB (at the corner: 2.0dB Max.) |
| ● | Pass Band VSWR | ≤1.5:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 20W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -10℃ ~ +50℃ |

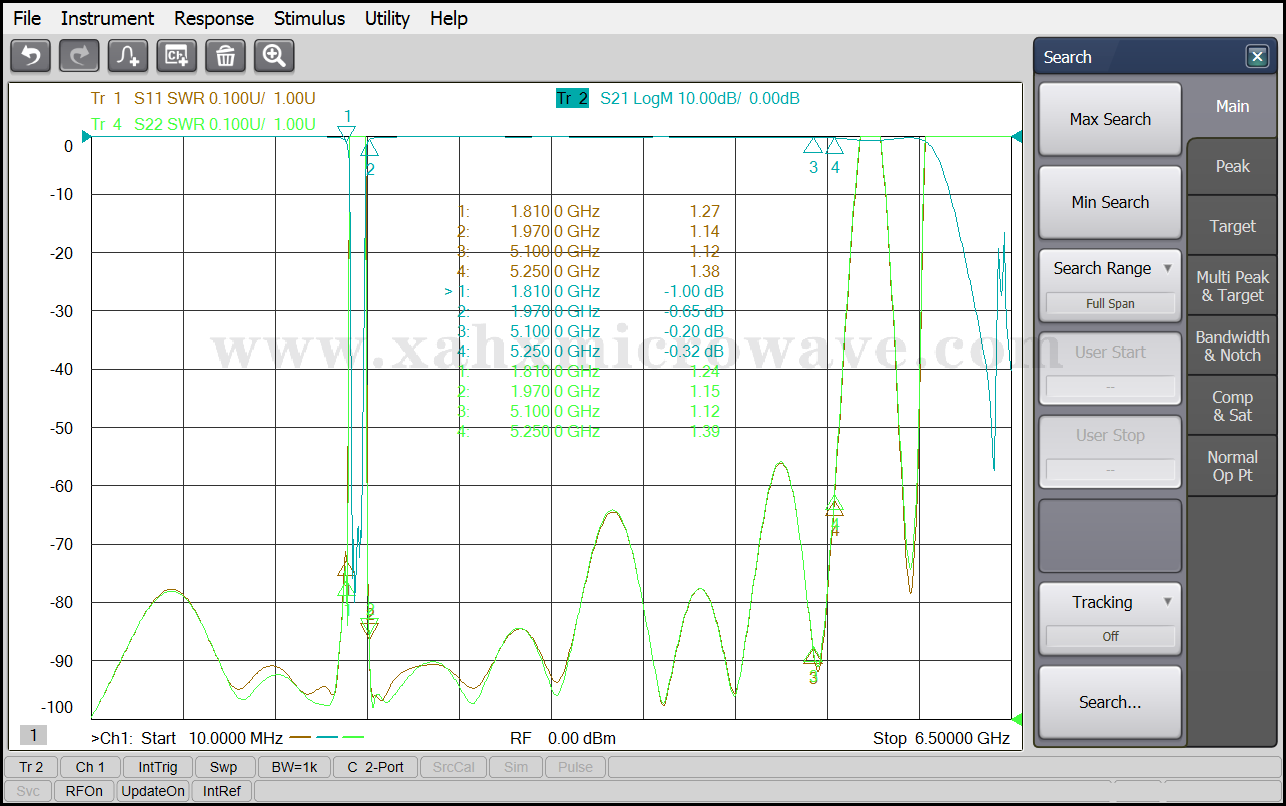

| Test Curve | ||
